Timing Belt: Components

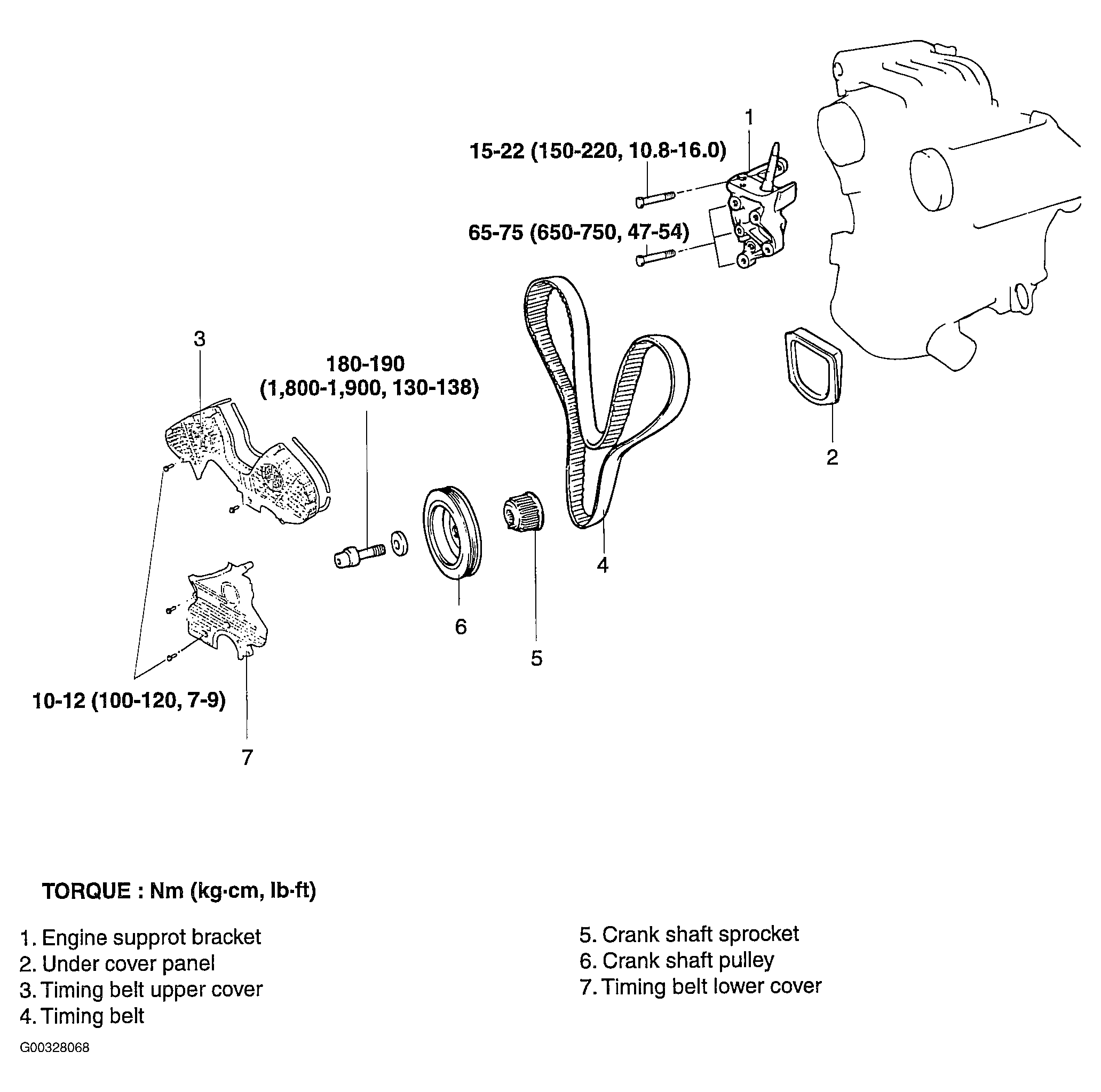

Fig 1: Exploded View Of Timing Belt Components

G00328068

Courtesy of KIA MOTORS AMERICA, INC.
