Main Moving System: Crankshaft: Components

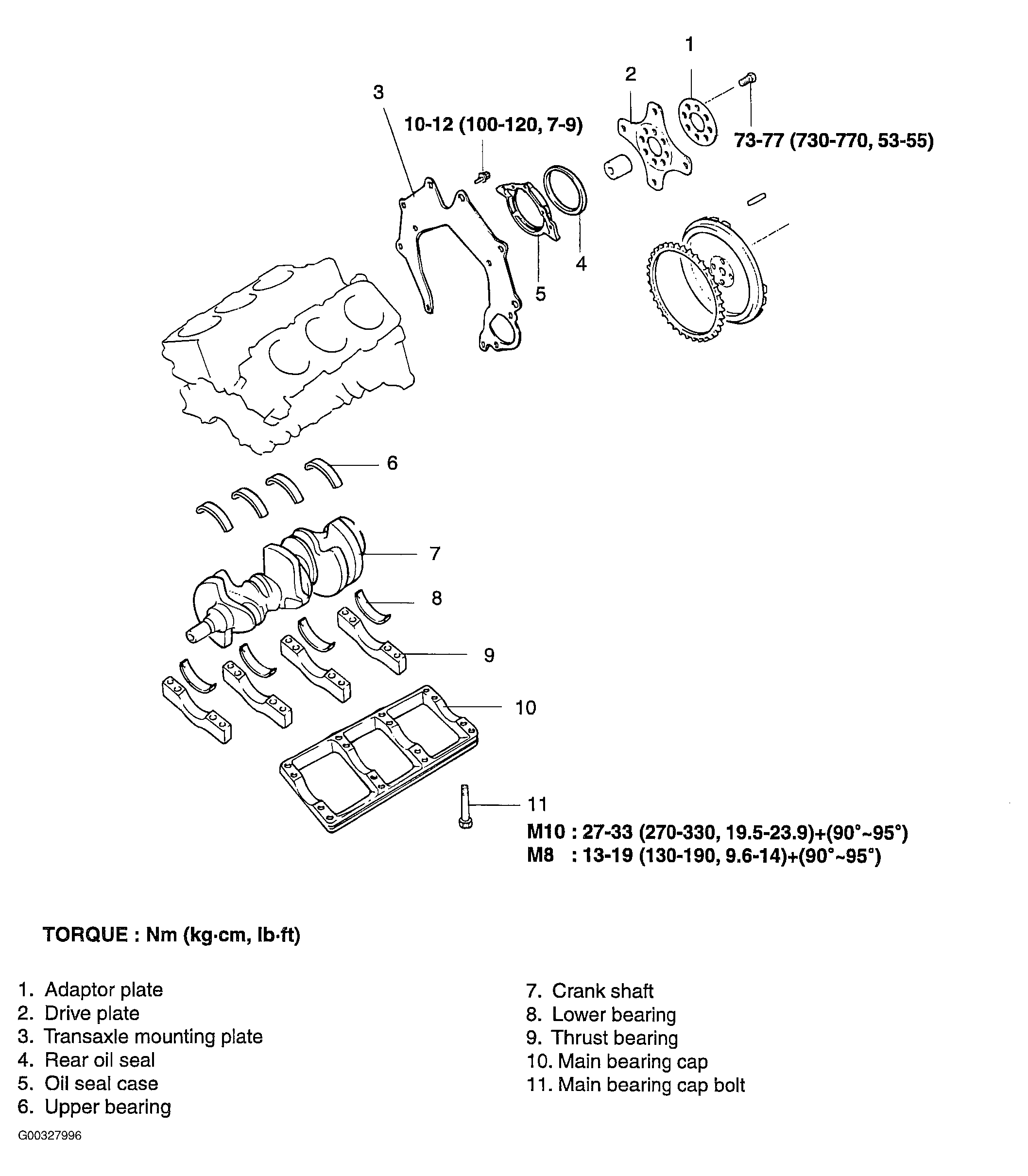

Fig 1: Removing & Installing Crankshaft

G00327996

Courtesy of KIA MOTORS AMERICA, INC.
