Main Moving System: Camshaft: Components

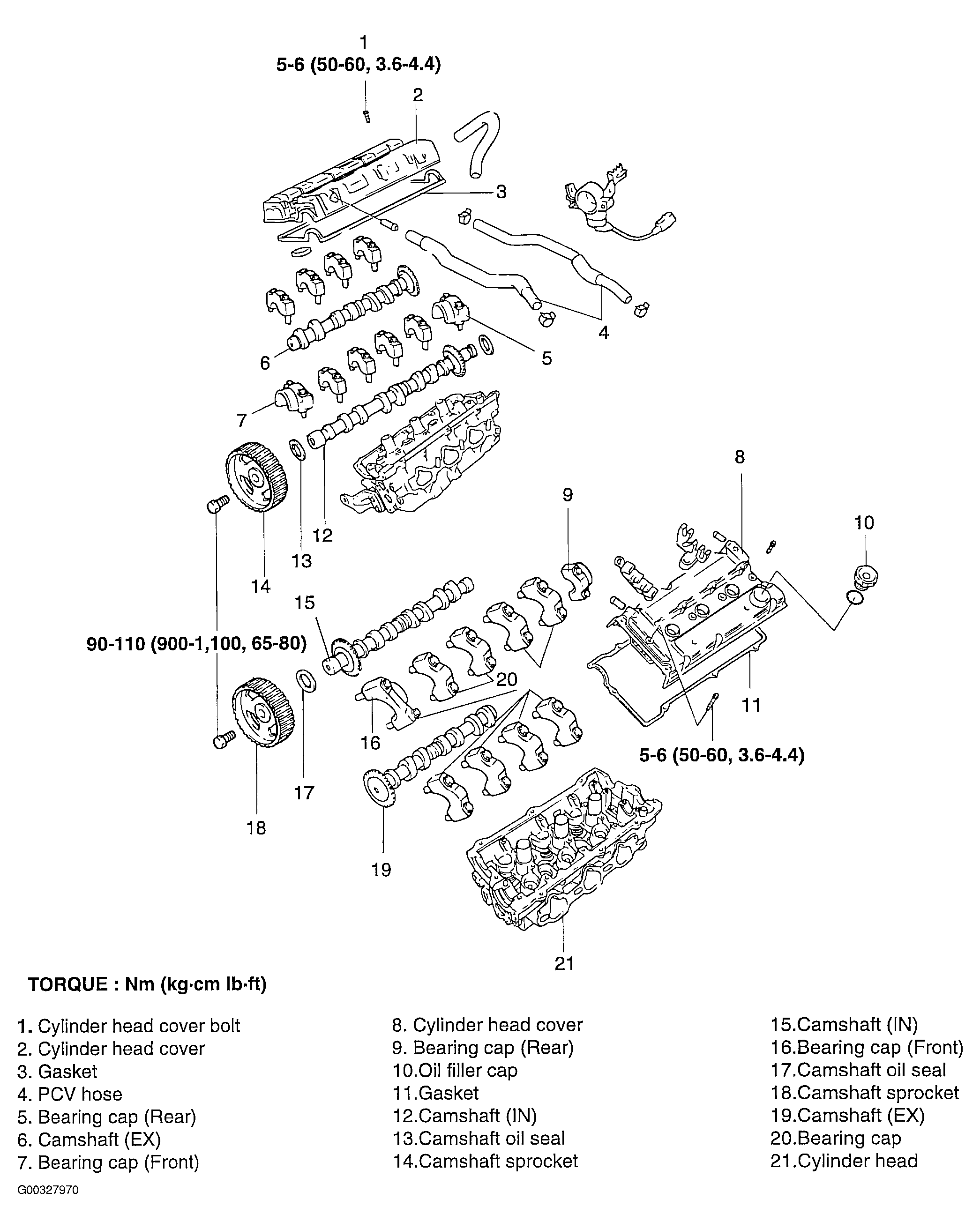

Fig 1: Removing & Installing Camshafts

G00327970

Courtesy of KIA MOTORS AMERICA, INC.
