Home >> Kia >> 2004 >> Optima EX, 2.7 8 >> Repair and Diagnosis >> Engine Mechanical >> Lubrication System >> 2.7L V6 Engine >> General >> Troubleshooting

2.7L V6 Engine: General: Troubleshooting

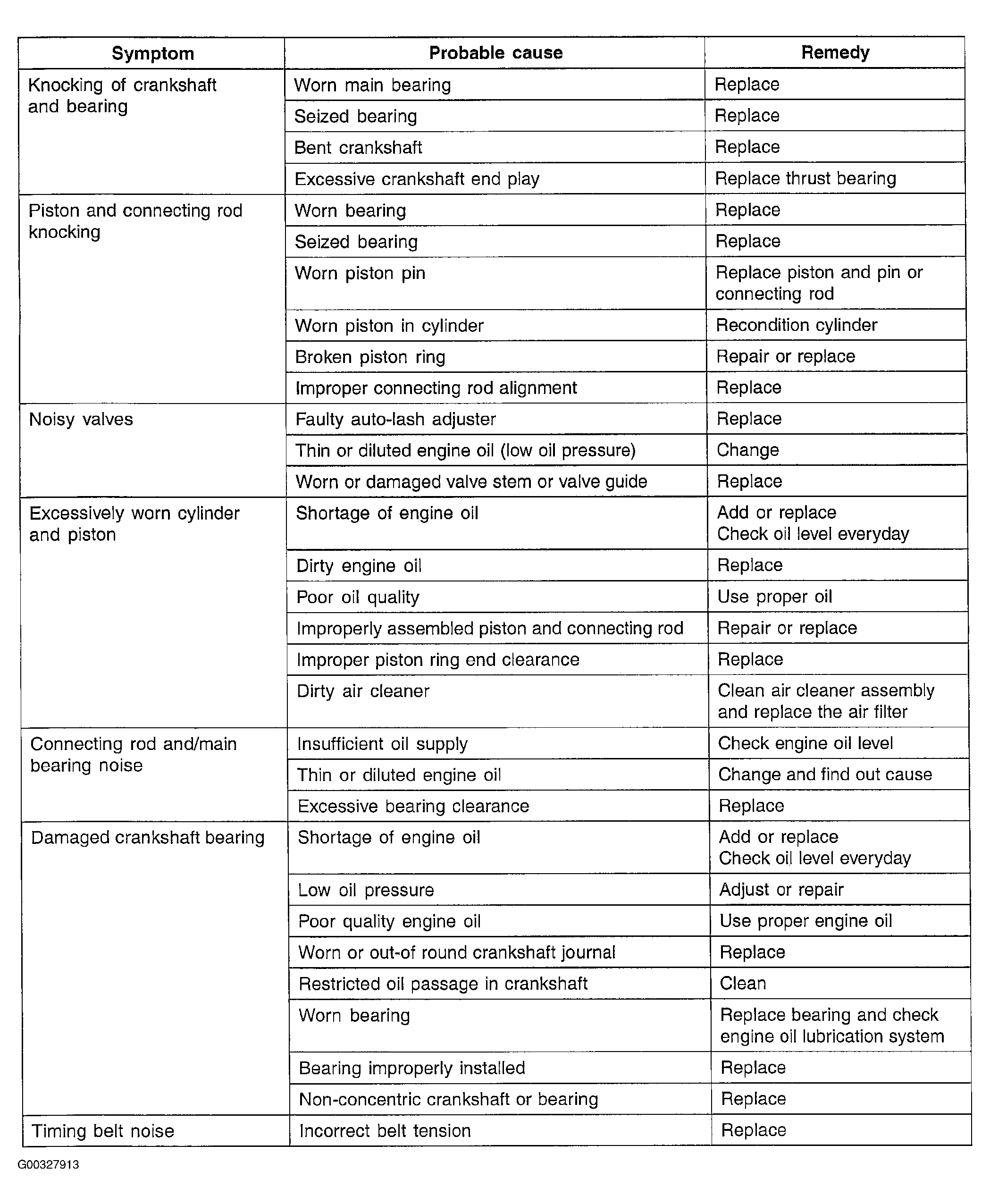

Fig 1: Troubleshooting Chart (1 Of 3)
G00327913Courtesy of KIA MOTORS AMERICA, INC.

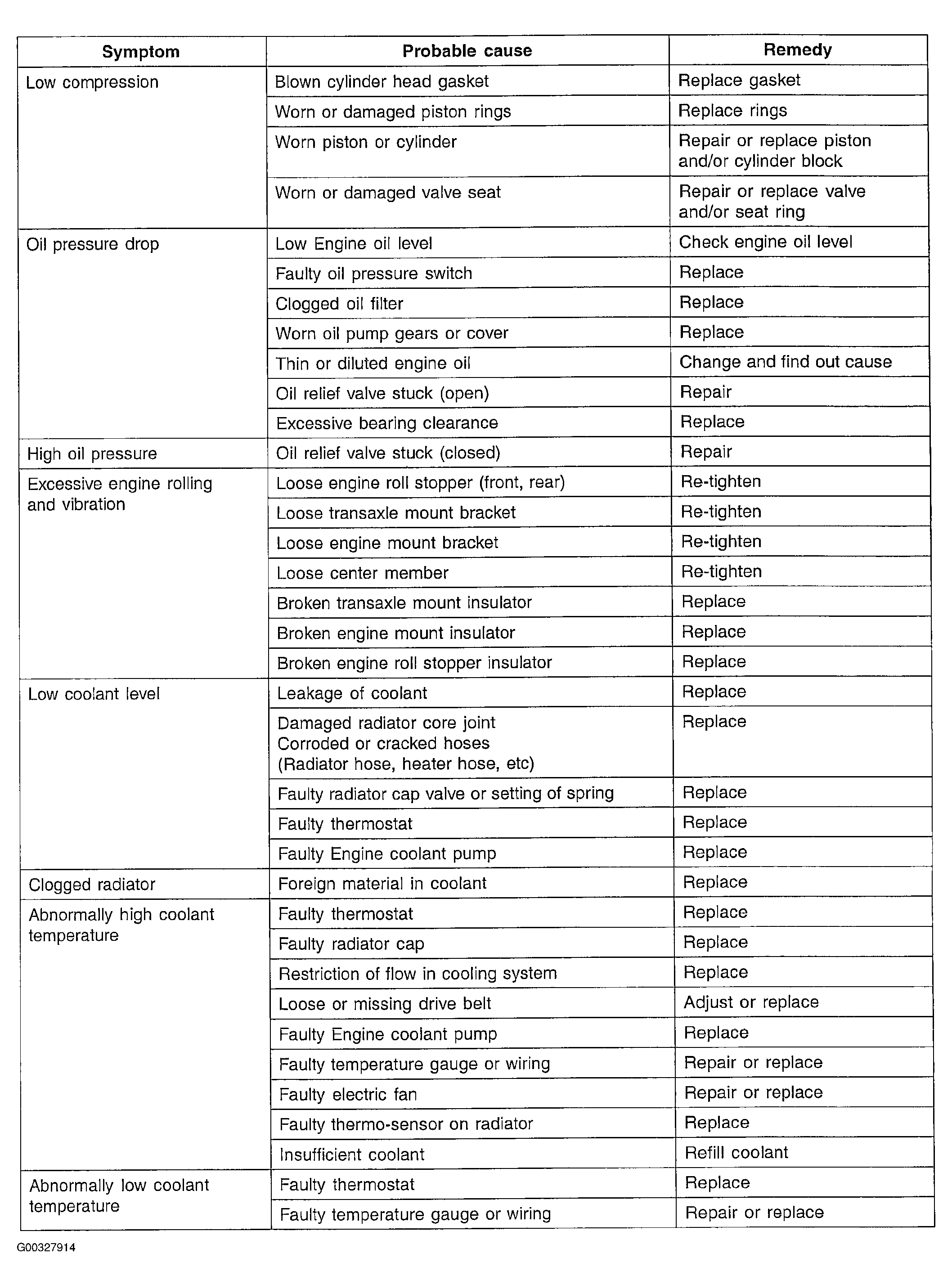

Fig 2: Troubleshooting Chart (2 Of 3)
G00327914Courtesy of KIA MOTORS AMERICA, INC.

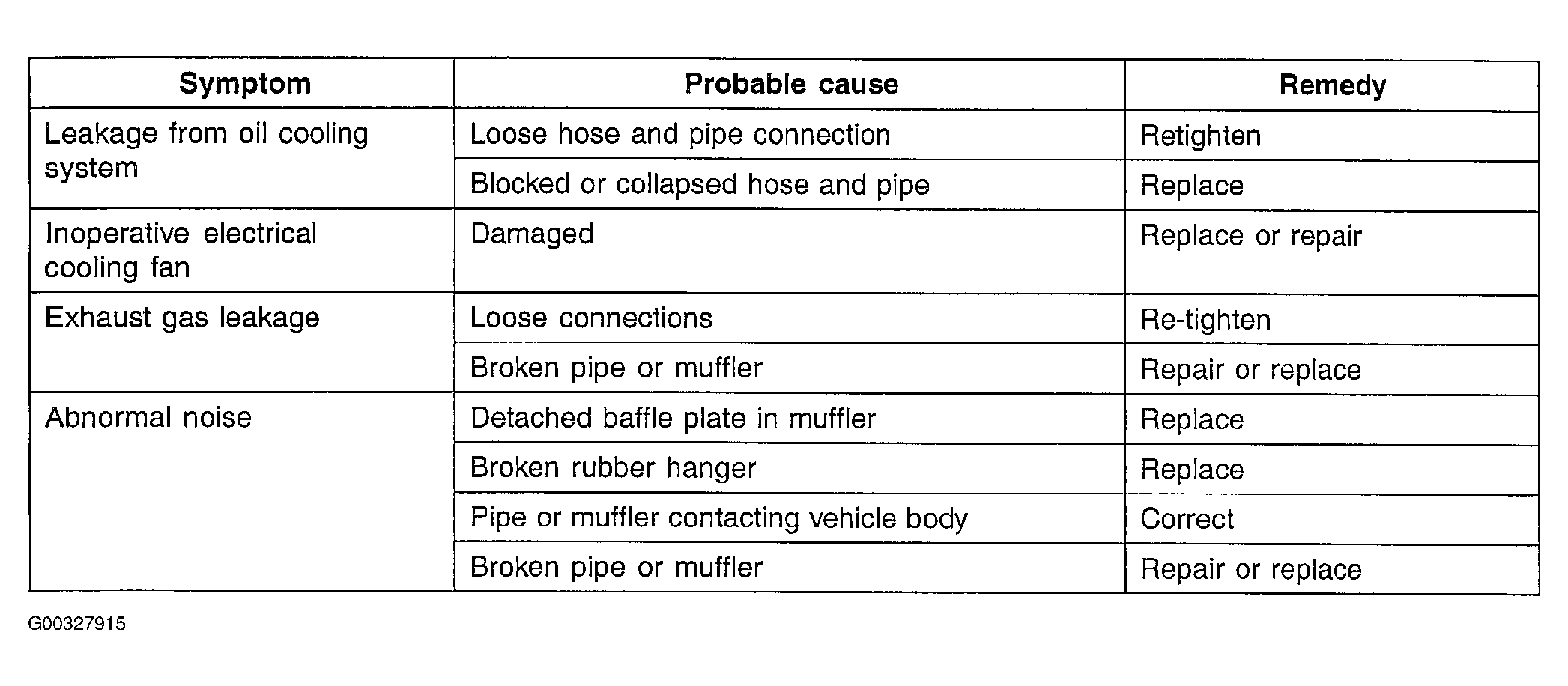

Fig 3: Troubleshooting Chart (3 Of 3)
G00327915Courtesy of KIA MOTORS AMERICA, INC.
