Repair and Diagnosis
>>
Engine Mechanical
>>
Lubrication System
>>
2.7L V6 Engine
>>
General
>>
Special Service Tools
Special Service Tools

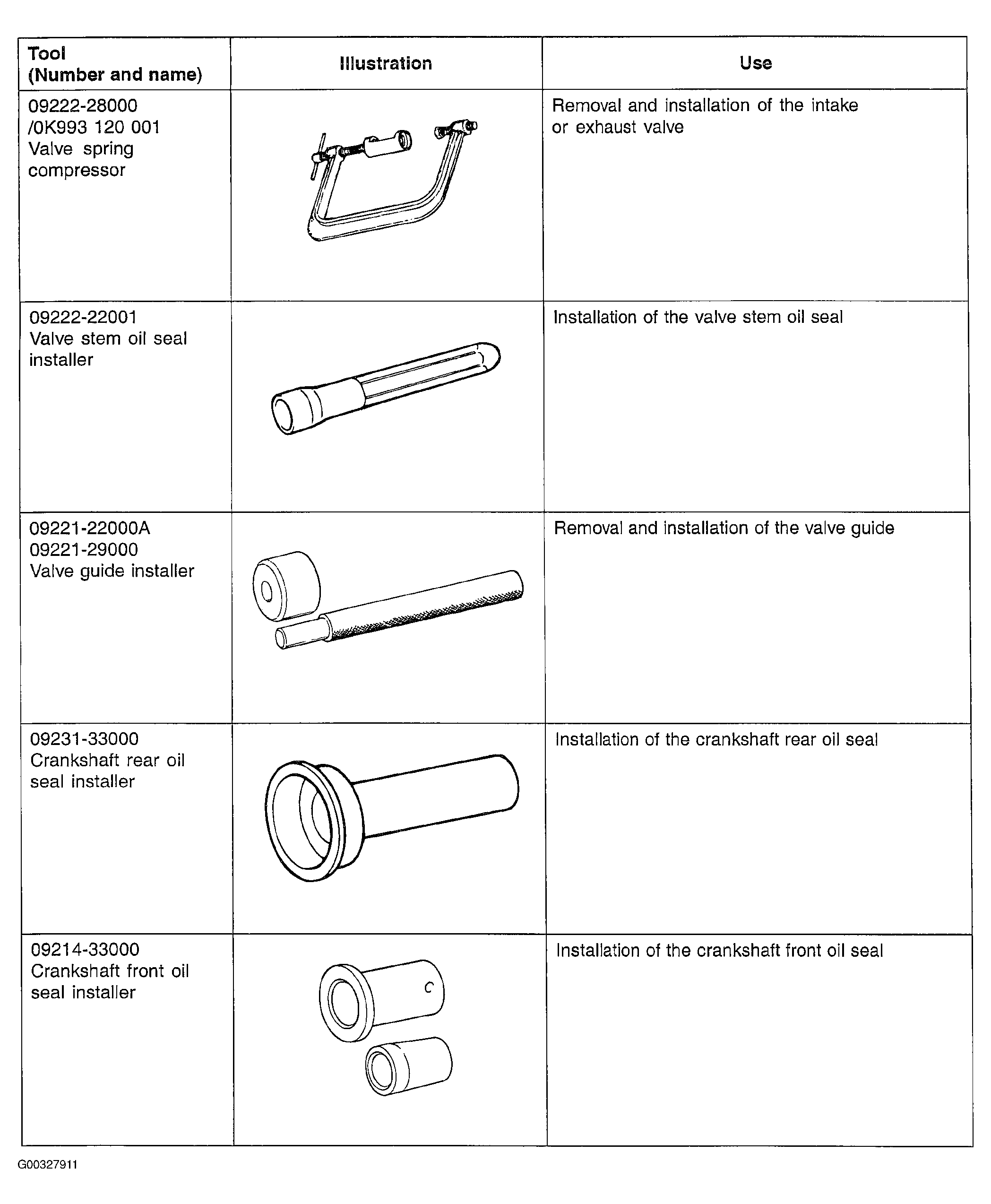

Fig 1: Identifying Special Service Tools (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

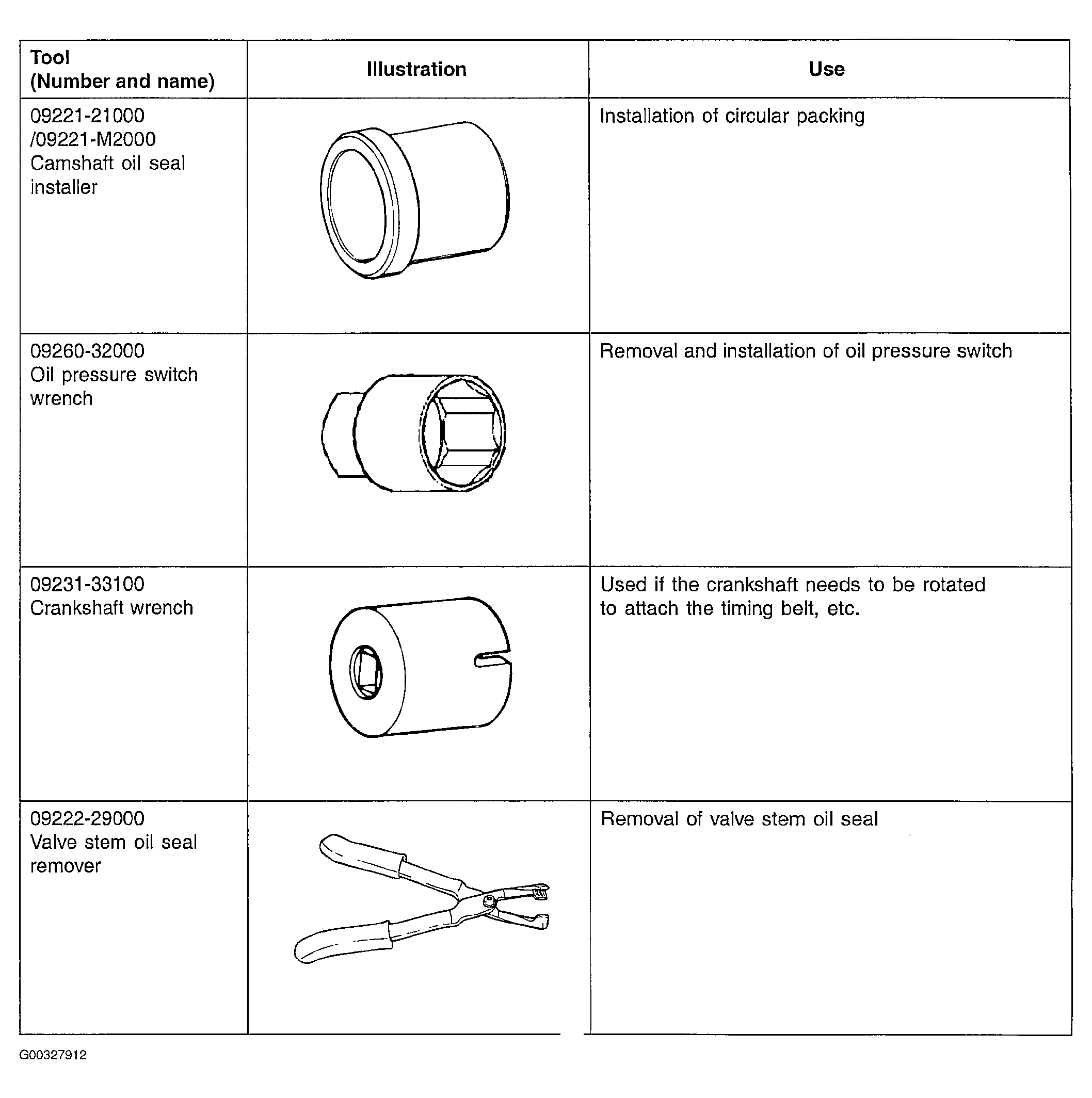

Fig 2: Identifying Special Service Tools (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
