Oil Pump Case: Components

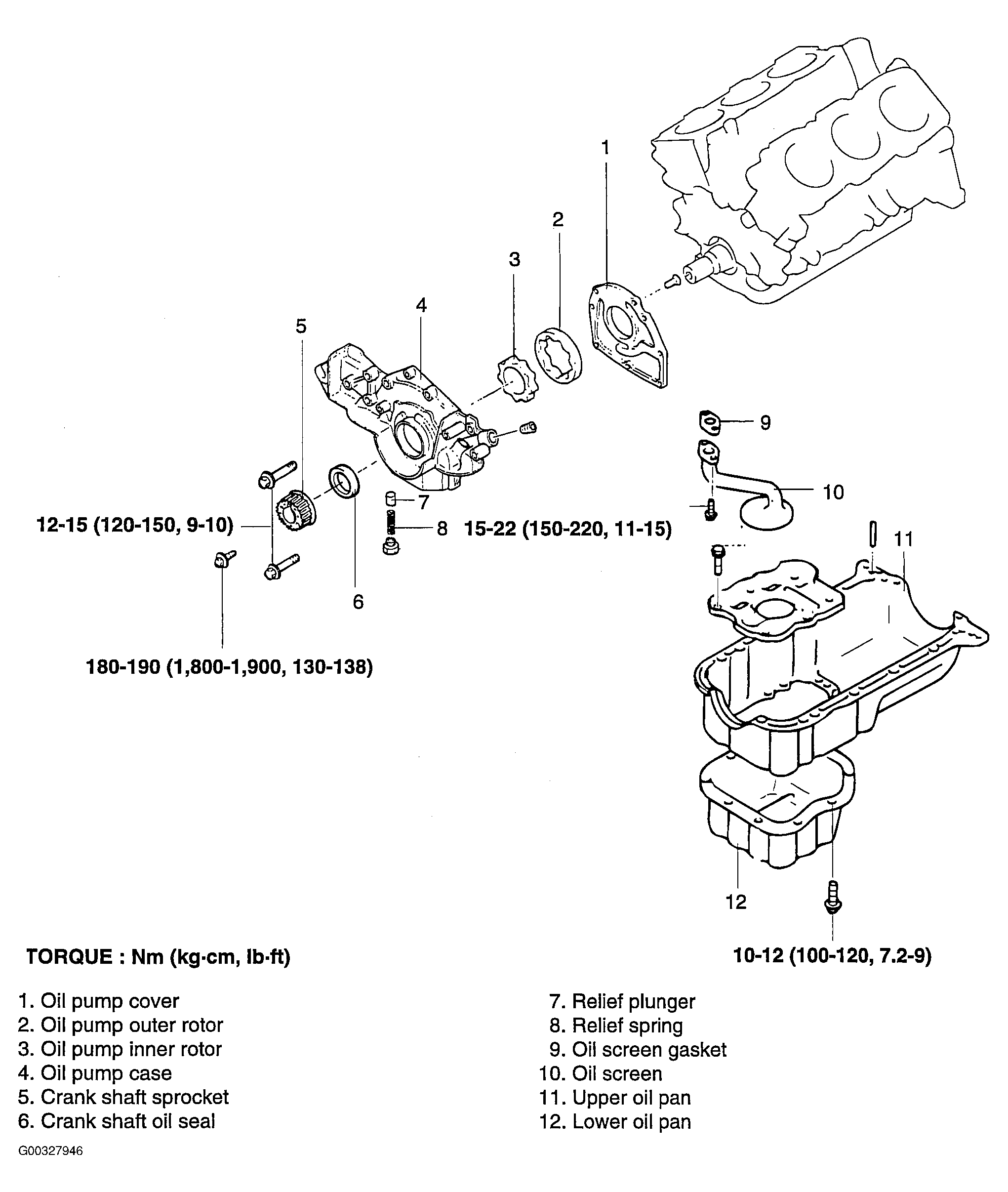

Fig 1: Removing & Installing Oil Pump Case
G00327946Courtesy of KIA MOTORS AMERICA, INC.
