Transaxle Mounting

  1. Remove the transaxle mounting bolt.
  2. Remove the transaxle bracket.

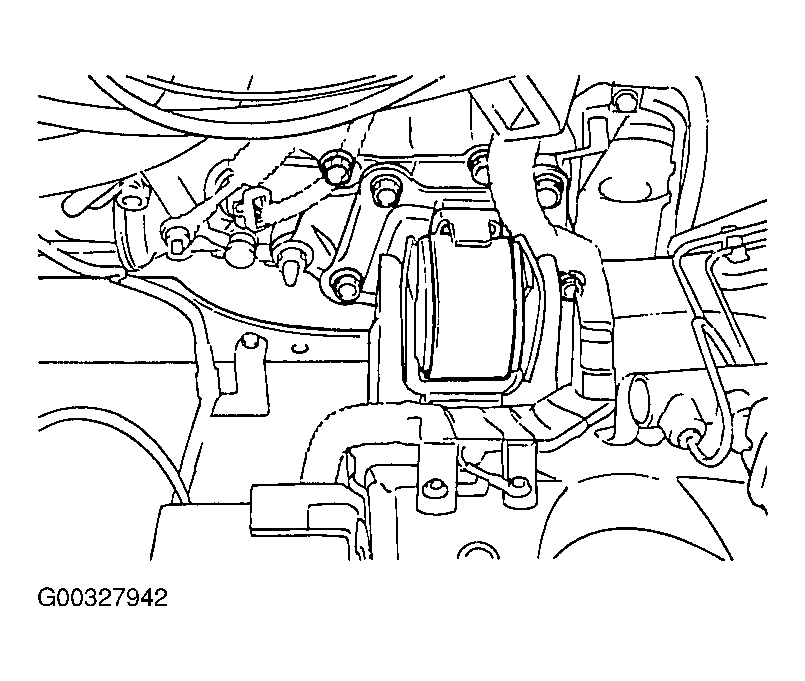

Fig 1: Removing Transaxle Mount
G00327942Courtesy of KIA MOTORS AMERICA, INC.
