Strut Assembly: Components

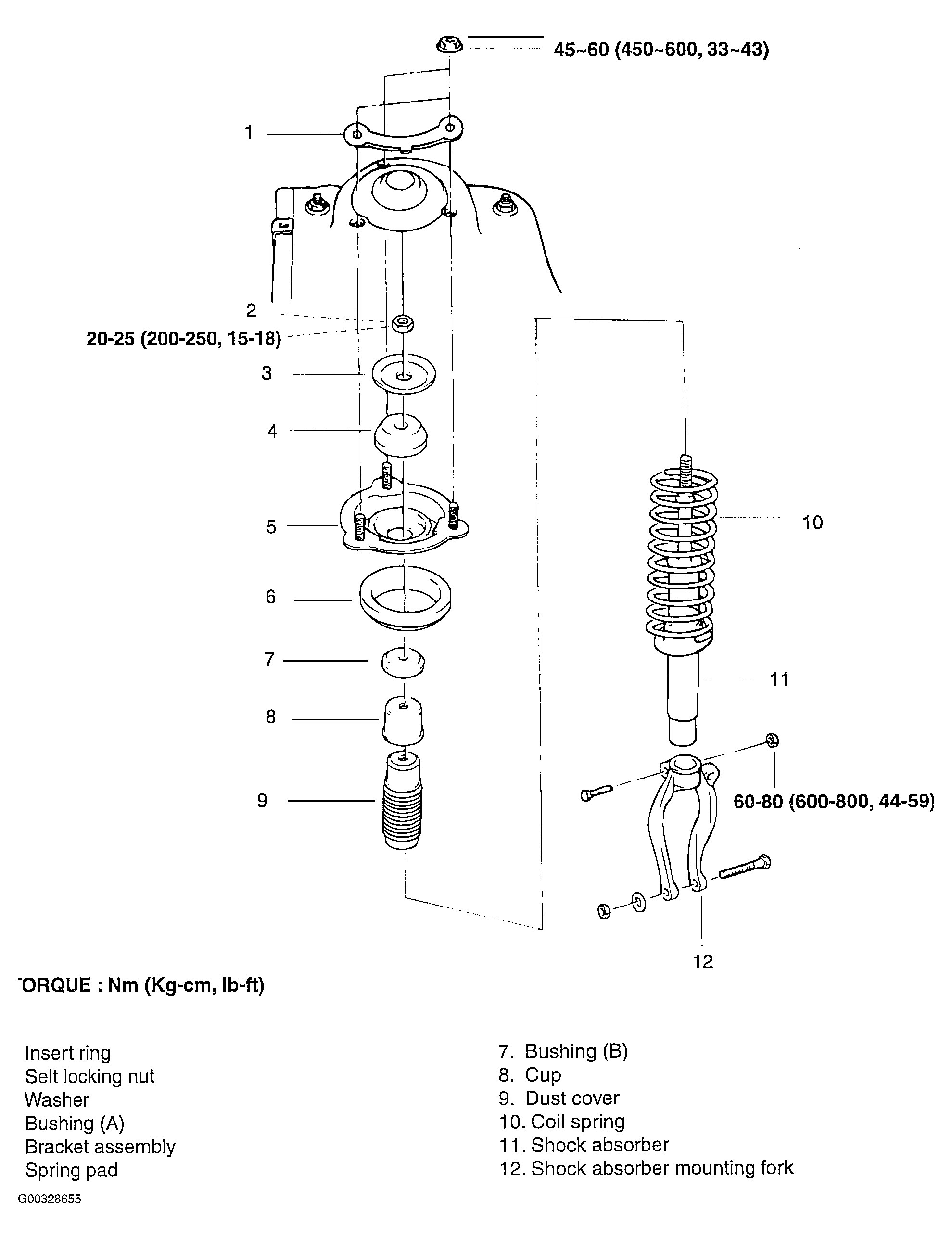

Fig 1: Exploded View Of Strut Assembly

G00328655

Courtesy of KIA MOTORS AMERICA, INC.
