Steering Column And Shaft: Installation

  1. Before installation, apply multipurpose grease to the groove on the inside of the bearing and mating surfaces of the boot and cover assembly.
  2. Connect the steering lower shaft and joint assembly.
    NOTE: When installing, secure the U-joint to the gear box first, then to the steering column shaft.

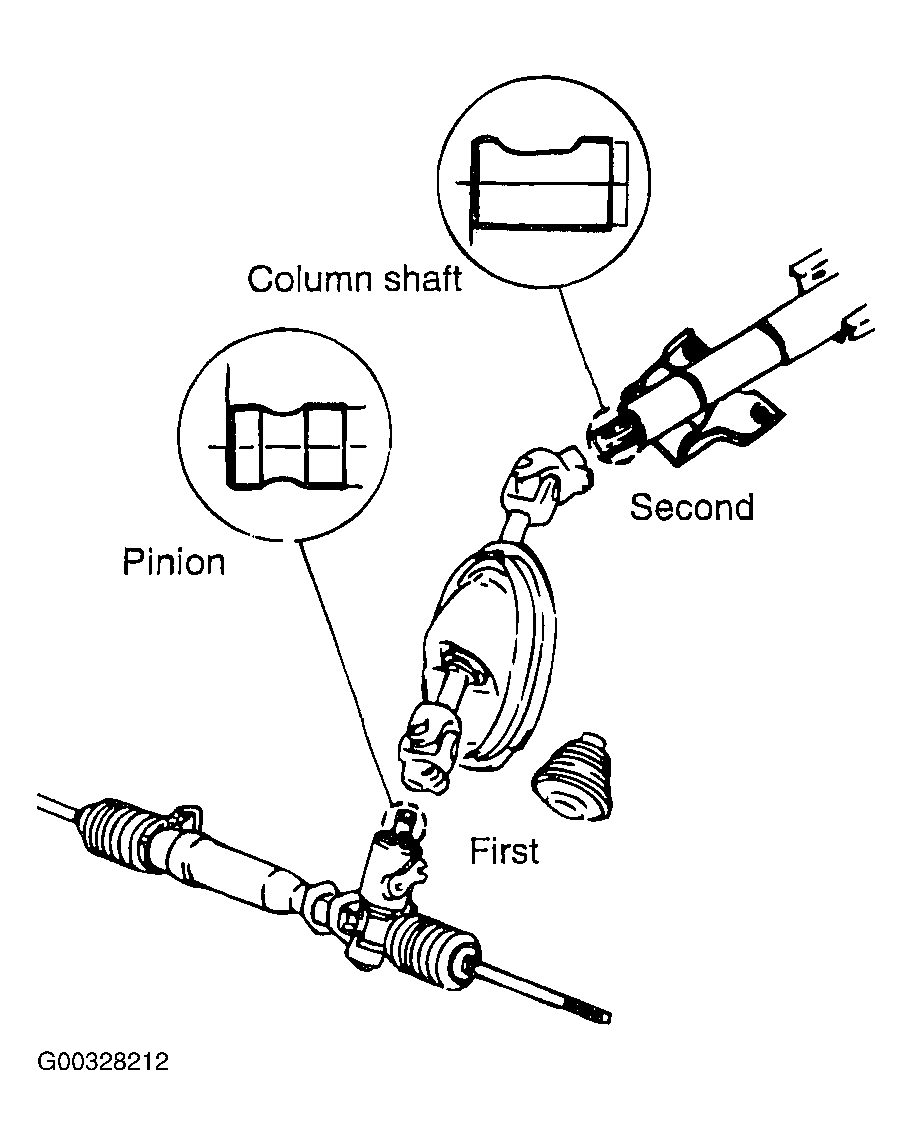

    Fig 1: Installing Steering Column & Shaft
    G00328212Courtesy of KIA MOTORS AMERICA, INC.
  3. Install the dust cover with column shaft assembly.
  4. Install the steering column assembly to the column member assembly (4 bolts).
  5. Install the multi function switch and connect the connectors.
  6. Install the lower cover and upper and lower shroud.
  7. Install the steering wheel.
    NOTE: When installing, do not use a hammer as the collapsible column shaft could be damaged.
