Steering Column And Shaft: Disassembly

1. Remove the coupling and universal joint from the steering column and shaft assembly.
   Fig 1: Removing Coupling & Universal Joint

   Courtesy of KIA MOTORS AMERICA, INC.
2. If it is necessary to remove the steering and ignition lock assembly, use a hack saw to cut the torsion bolt at the key holder assembly side.

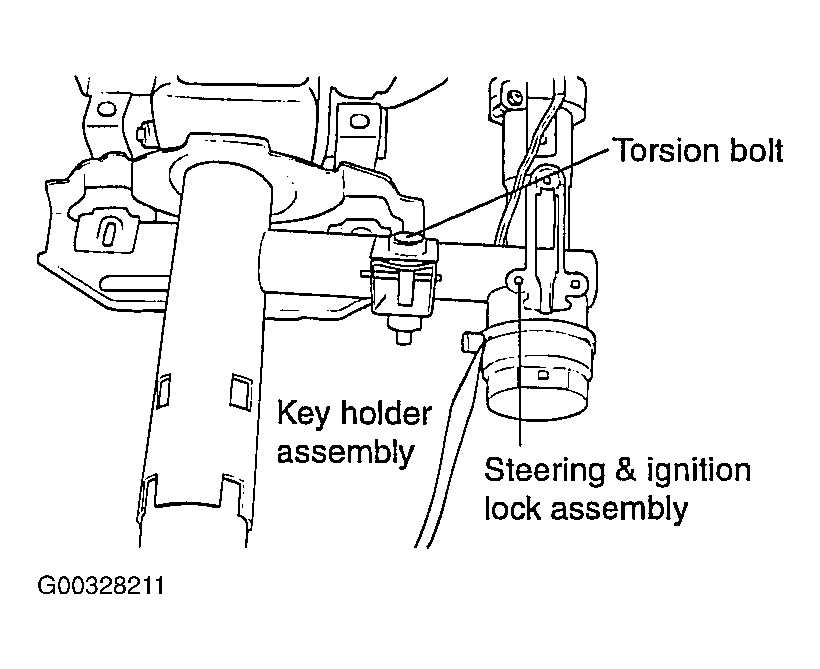

Fig 2: Removing Torsion Bolt

Courtesy of KIA MOTORS AMERICA, INC.
