Checking The Brake Fluid Level

  1. Visually check the level of the brake fluid in the reserve tank of the master cylinder.
  2. The level should be between the "MAX" and "MIN" marks.

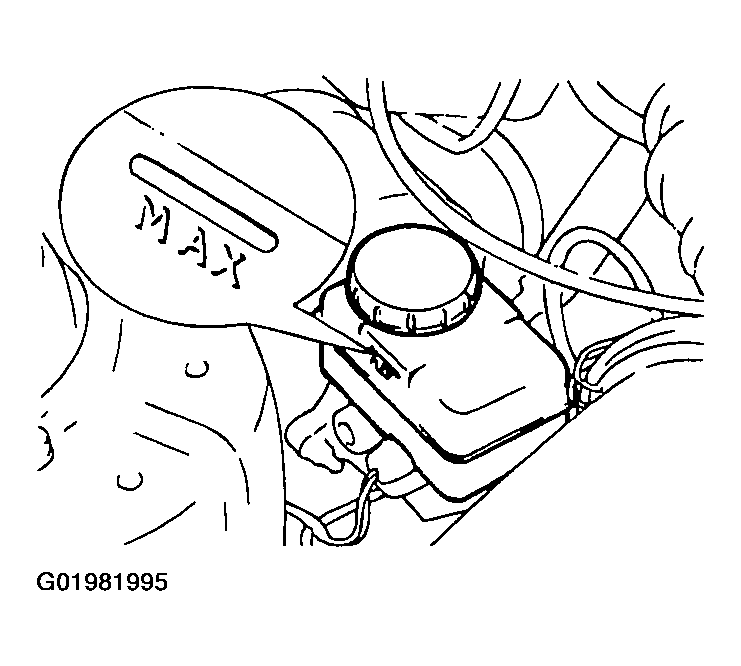

    Fig 1: Checking Brake Fluid Level
    G01981995Courtesy of KIA MOTORS AMERICA, INC.
  3. If the level is lower than the "MIN" marks, add fresh brake fluid up to the "MAX" mark.
