Components Location
Components Location

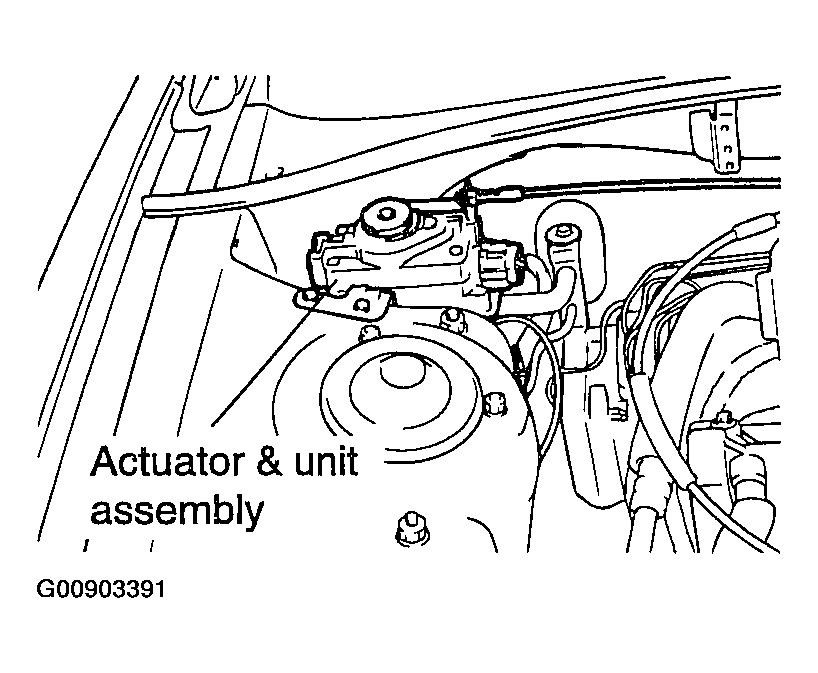

Fig 1: Locating Actuator & Unit Assembly
Courtesy of KIA MOTORS AMERICA, INC.

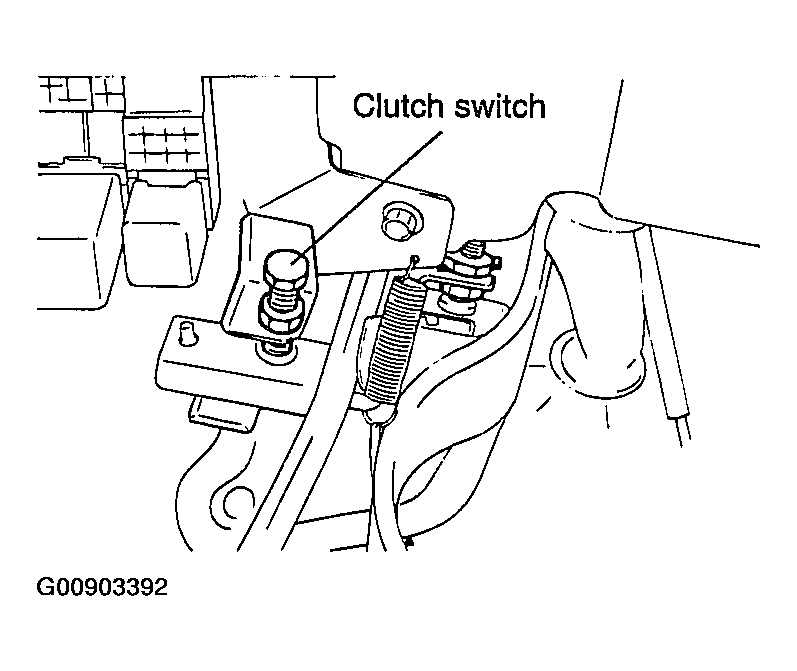

Fig 2: Locating Clutch Switch
Courtesy of KIA MOTORS AMERICA, INC.

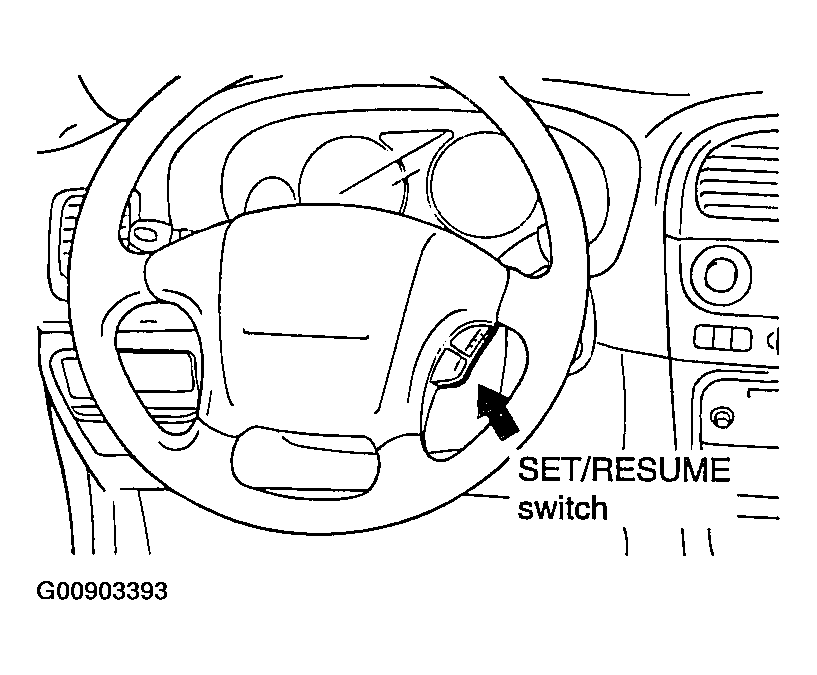

Fig 3: Locating SET/RESUME Switch
Courtesy of KIA MOTORS AMERICA, INC.

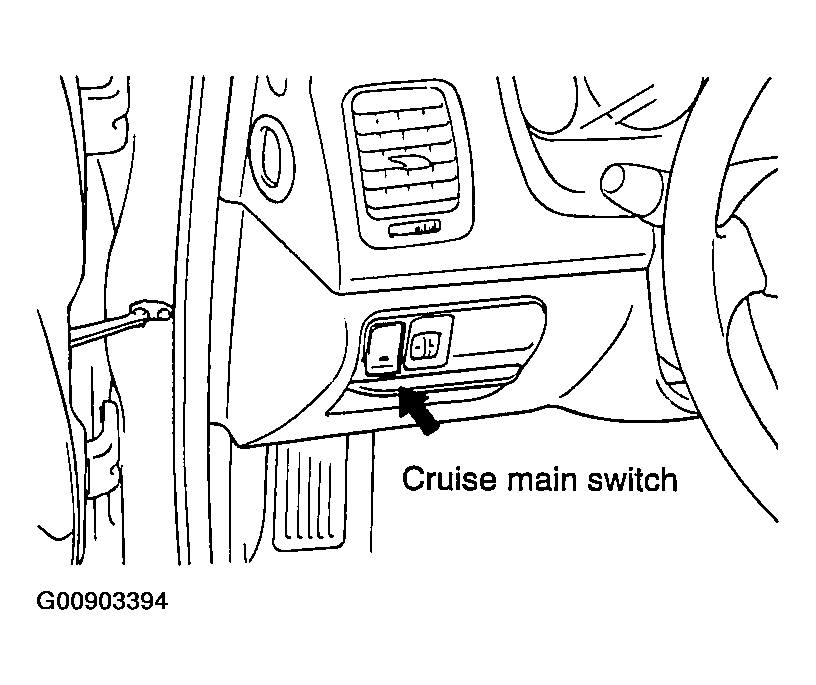

Fig 4: Locating Cruise Main Switch
Courtesy of KIA MOTORS AMERICA, INC.

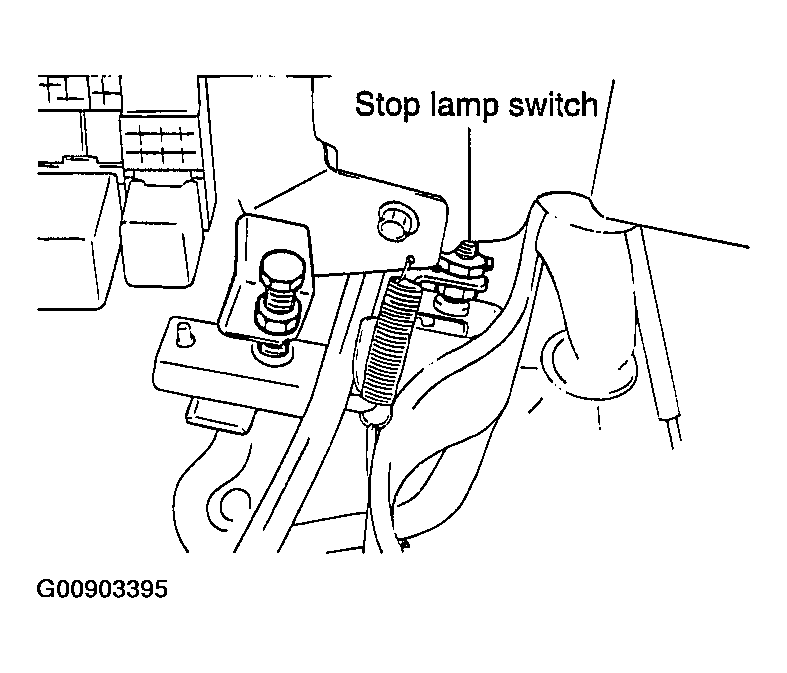

Fig 5: Locating Stop Lamp Switch
Courtesy of KIA MOTORS AMERICA, INC.

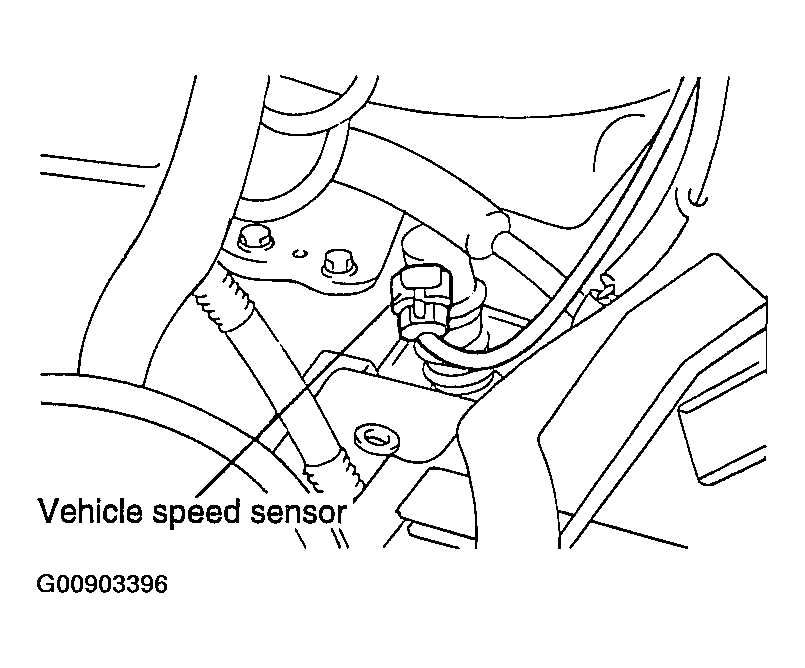

Fig 6: Locating Vehicle Speed Sensor
Courtesy of KIA MOTORS AMERICA, INC.
