Vehicle Lift And Support Locations

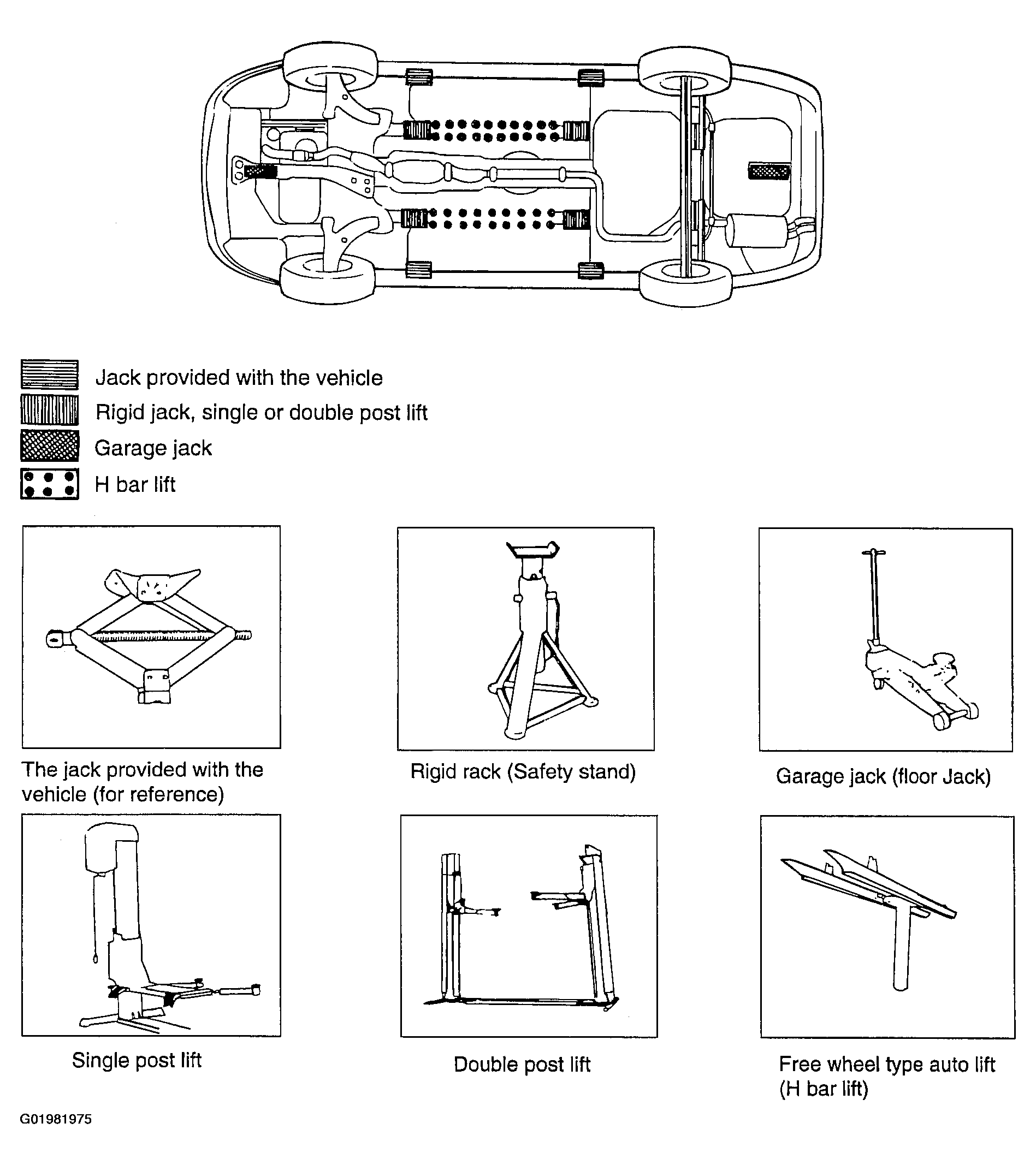

Fig 1: Lifting & Supporting Vehicle

Courtesy of KIA MOTORS AMERICA, INC.

CAUTION:

Never use a jack at the lateral rod or rear suspension assembly.
In order to prevent scarring the centermember, place a piece of cloth on the jack's contact surface (to prevent corrosion caused by damage to the coating).
Never attempt to position a floor jack on any part of the vehicle underbody.
Do not attempt to raise one entire side of the vehicle by placing a jack midway between the front and rear wheels. To do so could result in permanent damage to the body.
