Engine Compartment Fuse/Relay Box: Notes

NOTE: Engine compartment fuse/relay box is located on driver's side of engine compartment, in front of shock tower. See Fig 1.

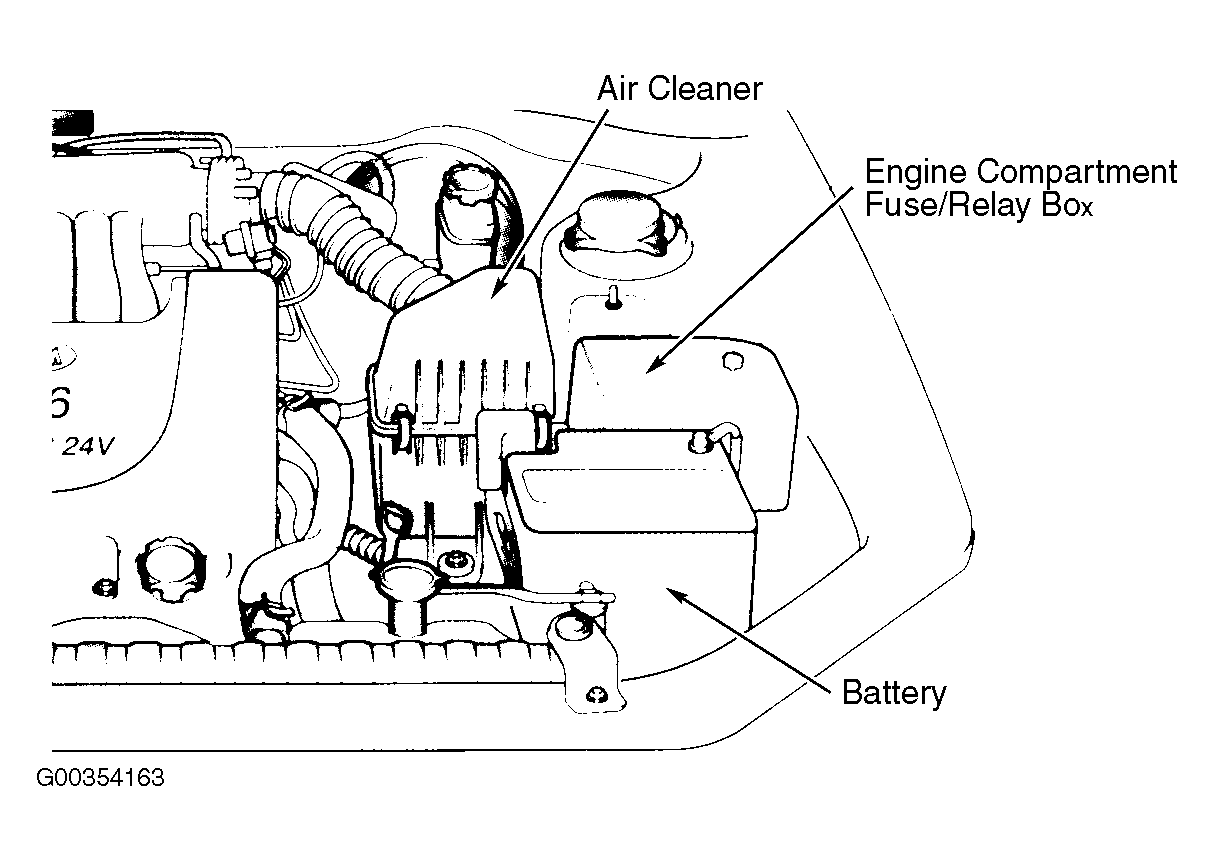

Fig 1: Locating Engine Compartment Fuse/Relay Box

Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Identifying Components On Engine Compartment Fuse/Relay Box

Courtesy of KIA MOTORS AMERICA, INC.

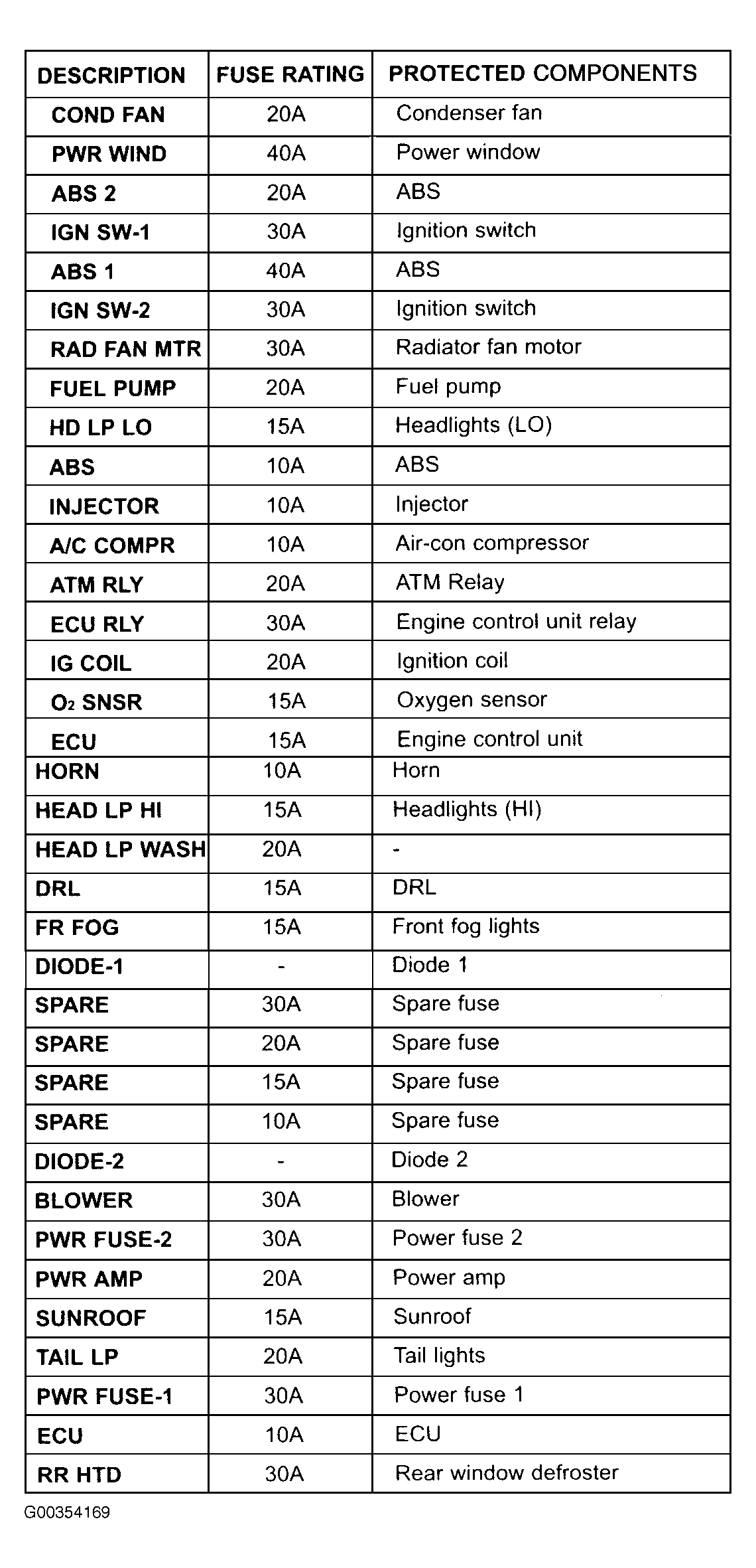

Fig 3: Engine Compartment Fuse/Relay Box Component Legend

Courtesy of KIA MOTORS AMERICA, INC.
