Diagnosis & Overhaul: Troubleshooting: Notes

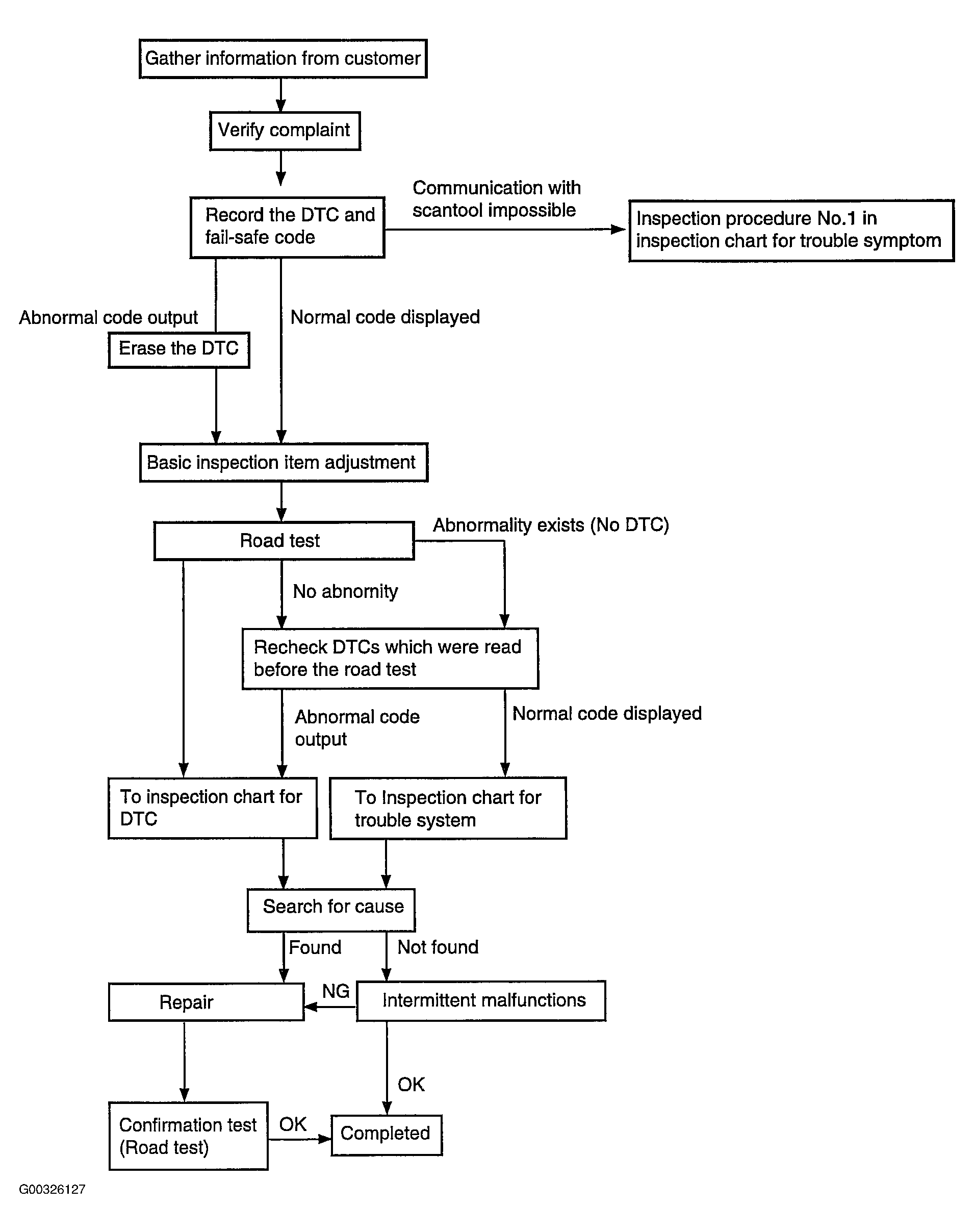

Fig 1: Automatic Transaxle Troubleshooting Flow Chart

G00326127

Courtesy of KIA MOTORS AMERICA, INC.
