Diagnosis & Overhaul: General: Specifications

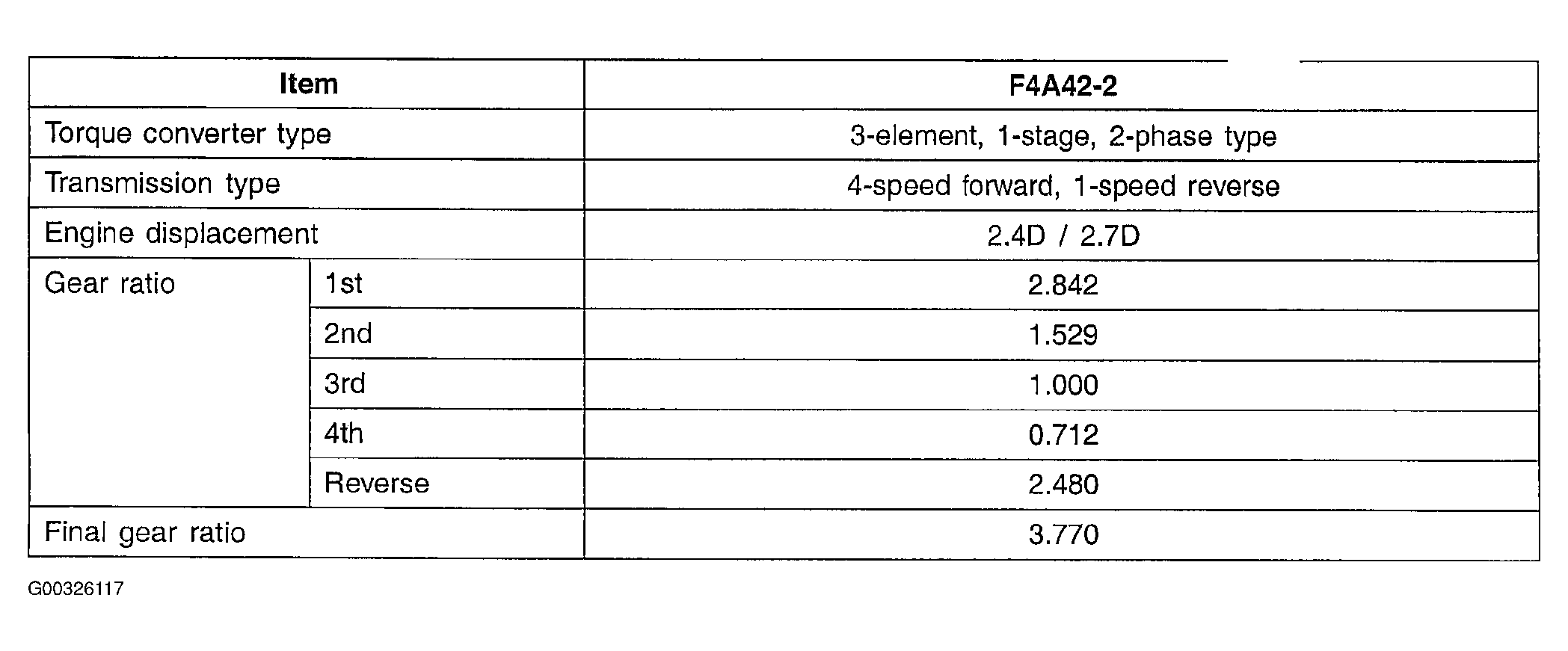

Fig 1: Identifying Automatic Transaxle Specifications

G00326117

Courtesy of KIA MOTORS AMERICA, INC.
