Service Specifications
Service Specifications

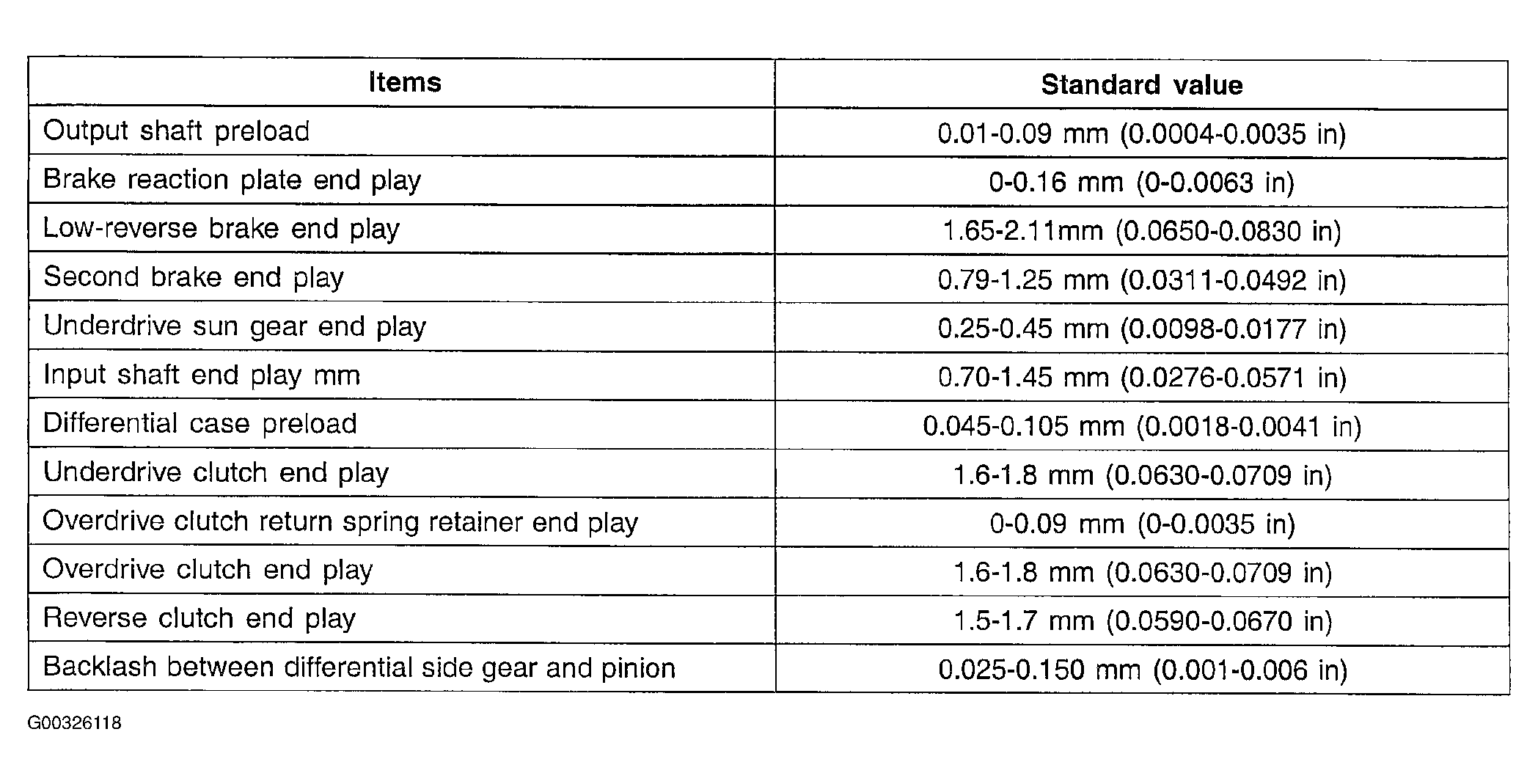

Fig 1: Identifying Automatic Transaxle Service Specifications
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
