UNDERDRIVE Clutch And Input Shaft: Notes

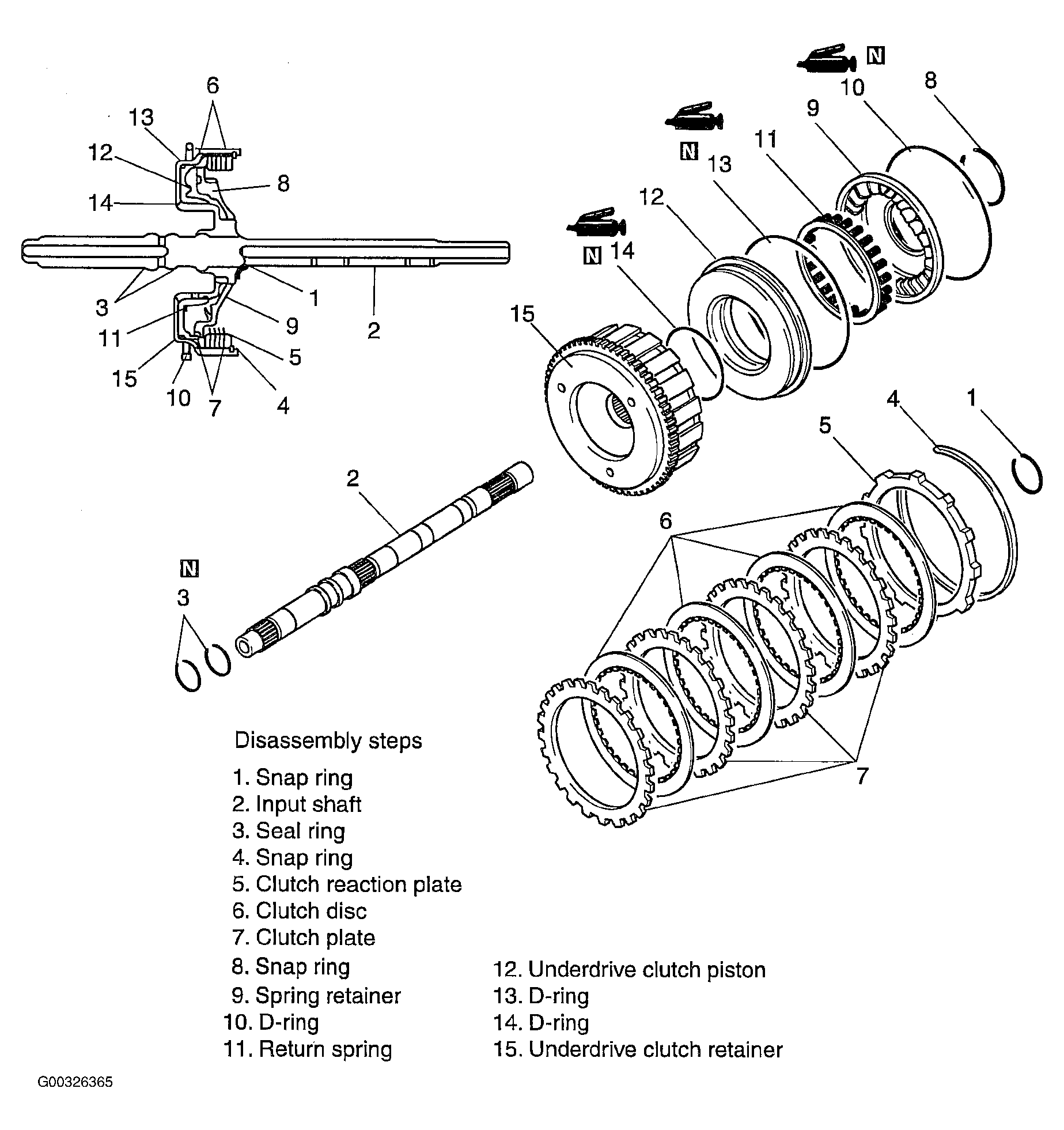

Fig 1: Exploded View Of Underdrive Clutch & Input Shaft

G00326365

Courtesy of KIA MOTORS AMERICA, INC.
