Output Shaft: Reassembly

  1. Remove the transfer driven gear by press.

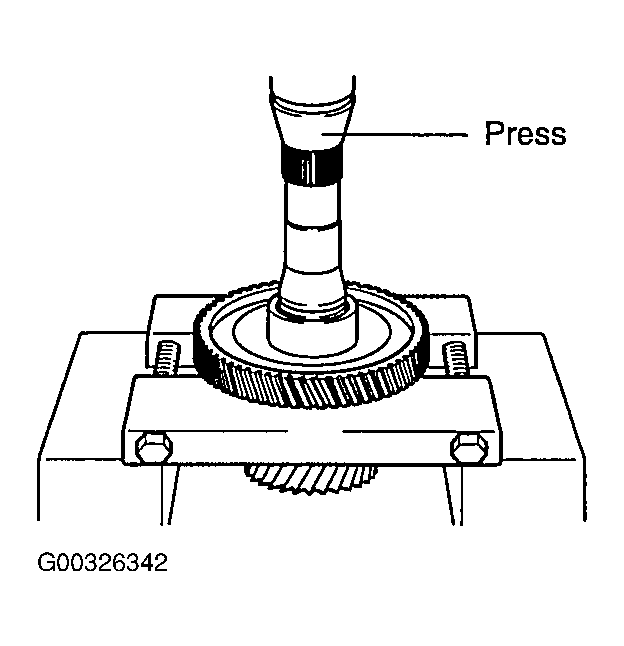

    Fig 1: Removing Transfer Driven Gear
    G00326342Courtesy of KIA MOTORS AMERICA, INC.
  2. Remove the taper roller bearing.

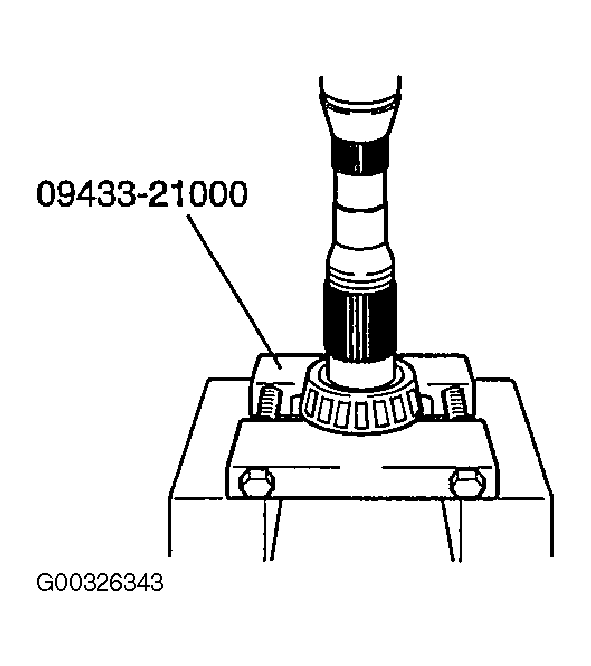

Fig 2: Removing Taper Roller Bearing
G00326343Courtesy of KIA MOTORS AMERICA, INC.
