Diagnosis & Overhaul: Components: Differential: Disassembly

  1. Clamp the differential case in a vise.
  2. Remove the differential drive retaining bolts and remove the differential drive gear from the case.

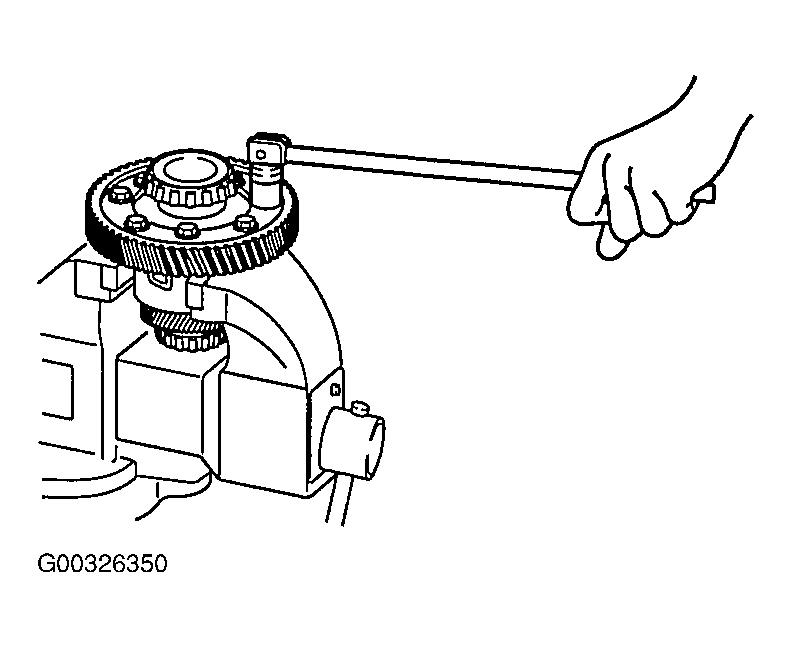

    Fig 1: Removing Differential Drive Gear
    G00326350Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the taper bearing using the special tool (09433-21000).
    CAUTION: Do not reuse the bearing removed from the shaft.

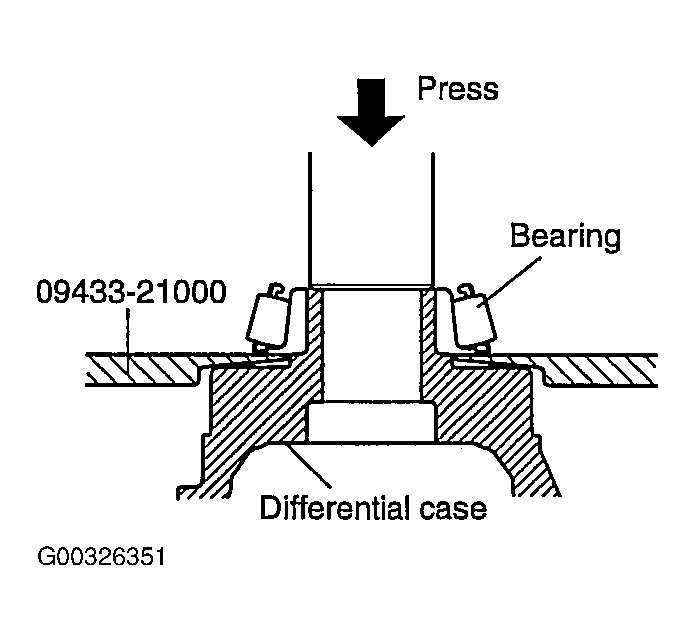

    Fig 2: Removing Taper Bearing
    G00326351Courtesy of KIA MOTORS AMERICA, INC.
  4. Drive out the lock pin from the hole A using a punch.

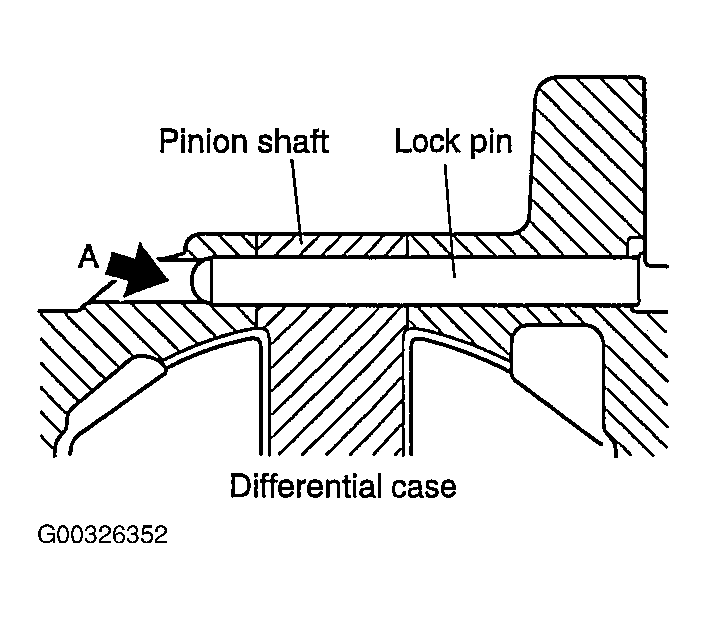

    Fig 3: Removing Lock Pin
    G00326352Courtesy of KIA MOTORS AMERICA, INC.
  5. Drive out the pinion shaft.
