Transaxle Range Switch Continuity

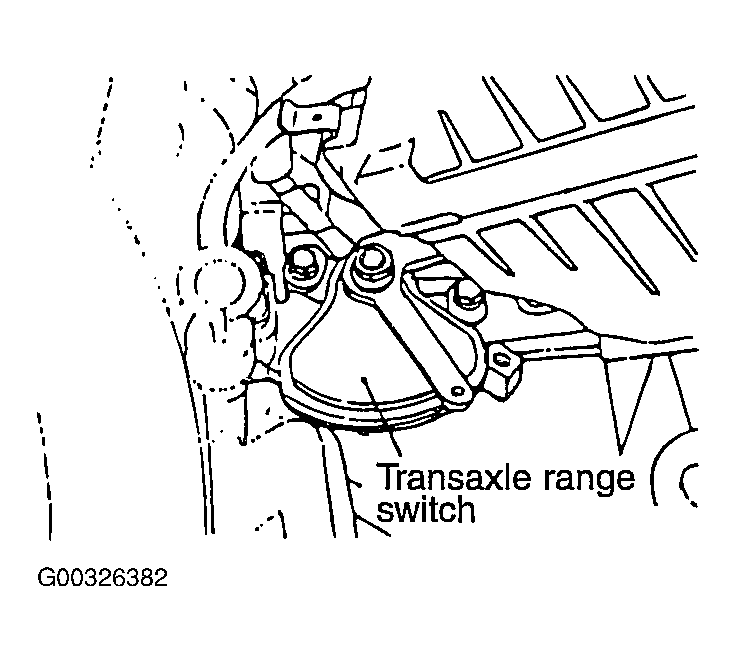

Fig 1: Locating Transaxle Range Switch Continuity
G00326382Courtesy of KIA MOTORS AMERICA, INC.

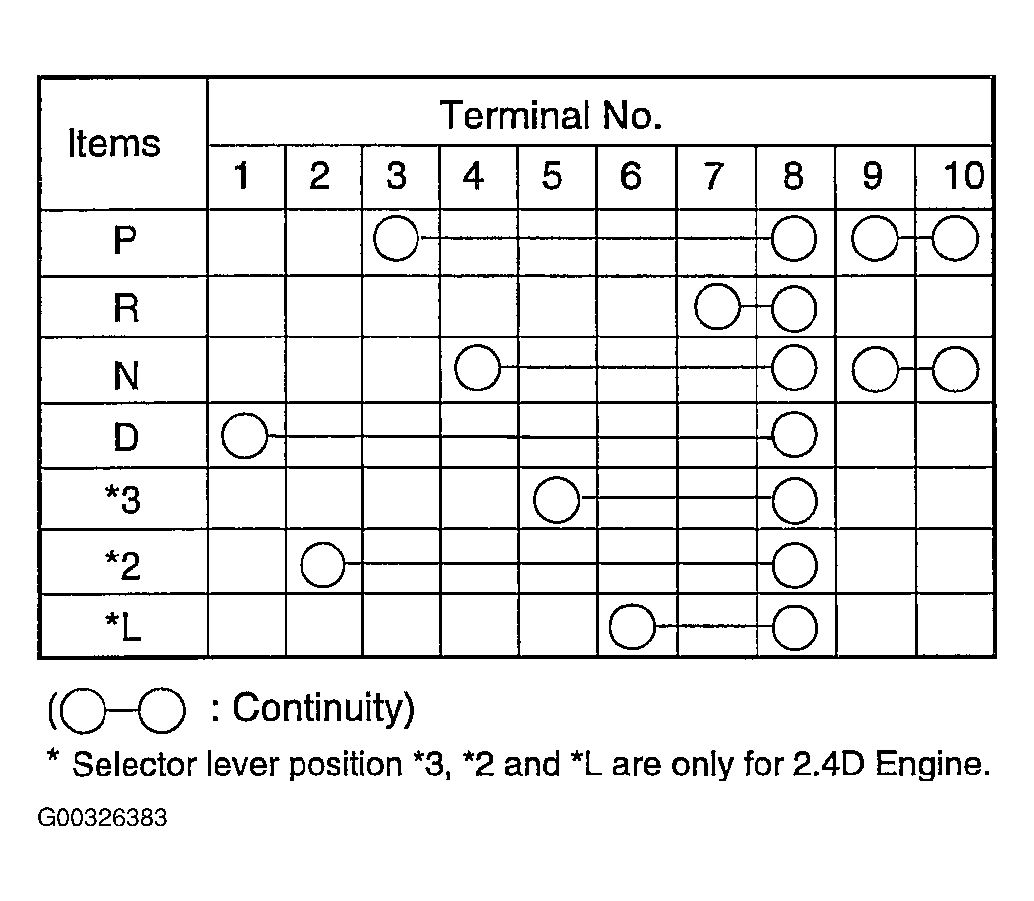

Fig 2: Testing Transaxle Range Switch Continuity (1 Of 2)
G00326383Courtesy of KIA MOTORS AMERICA, INC.

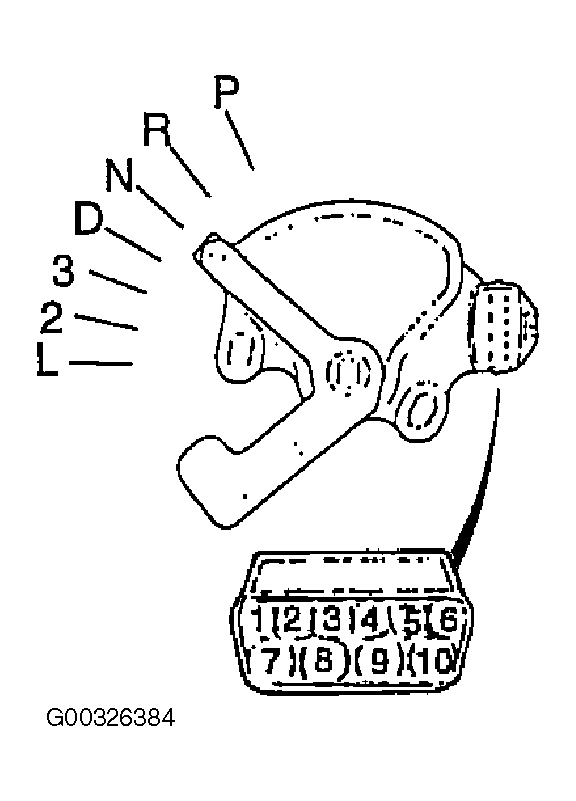

Fig 3: Testing Transaxle Range Switch Continuity (2 Of 2)
G00326384Courtesy of KIA MOTORS AMERICA, INC.
