Solenoid Valve Check

1. Disconnect the solenoid valve connector

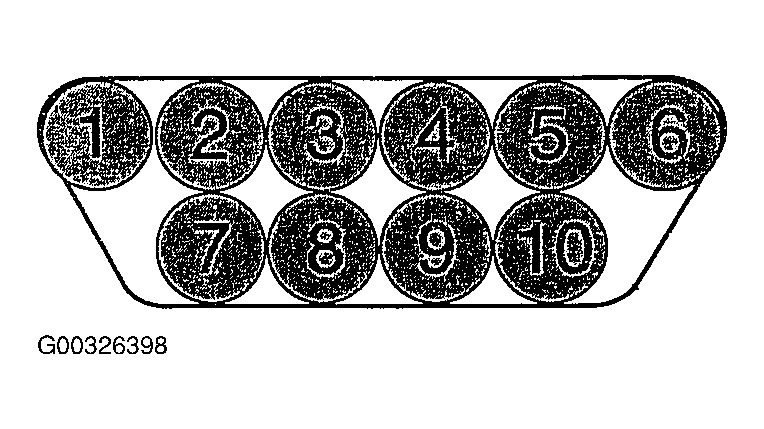

Fig 1: Identifying Solenoid Valve Connector

Courtesy of KIA MOTORS AMERICA, INC.

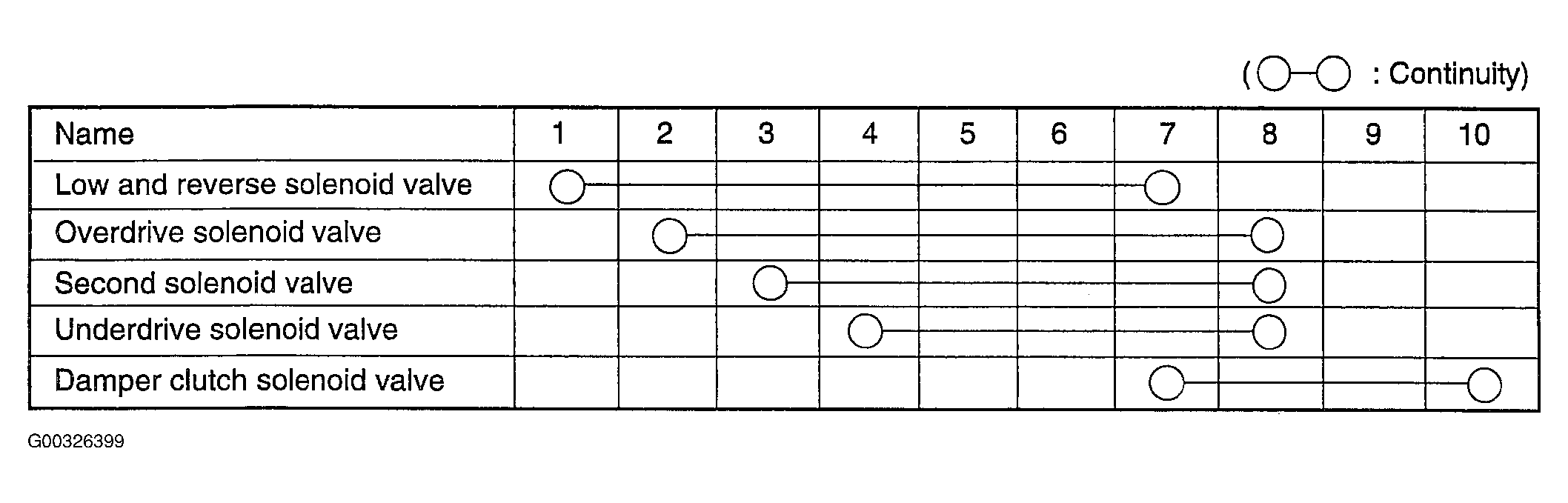

Fig 2: Identifying Solenoid Valve Continuity Chart

Courtesy of KIA MOTORS AMERICA, INC.

Solenoid valve resistance : 2.7-3.4Ω (at 20°C)
