Removal & Installation: Components

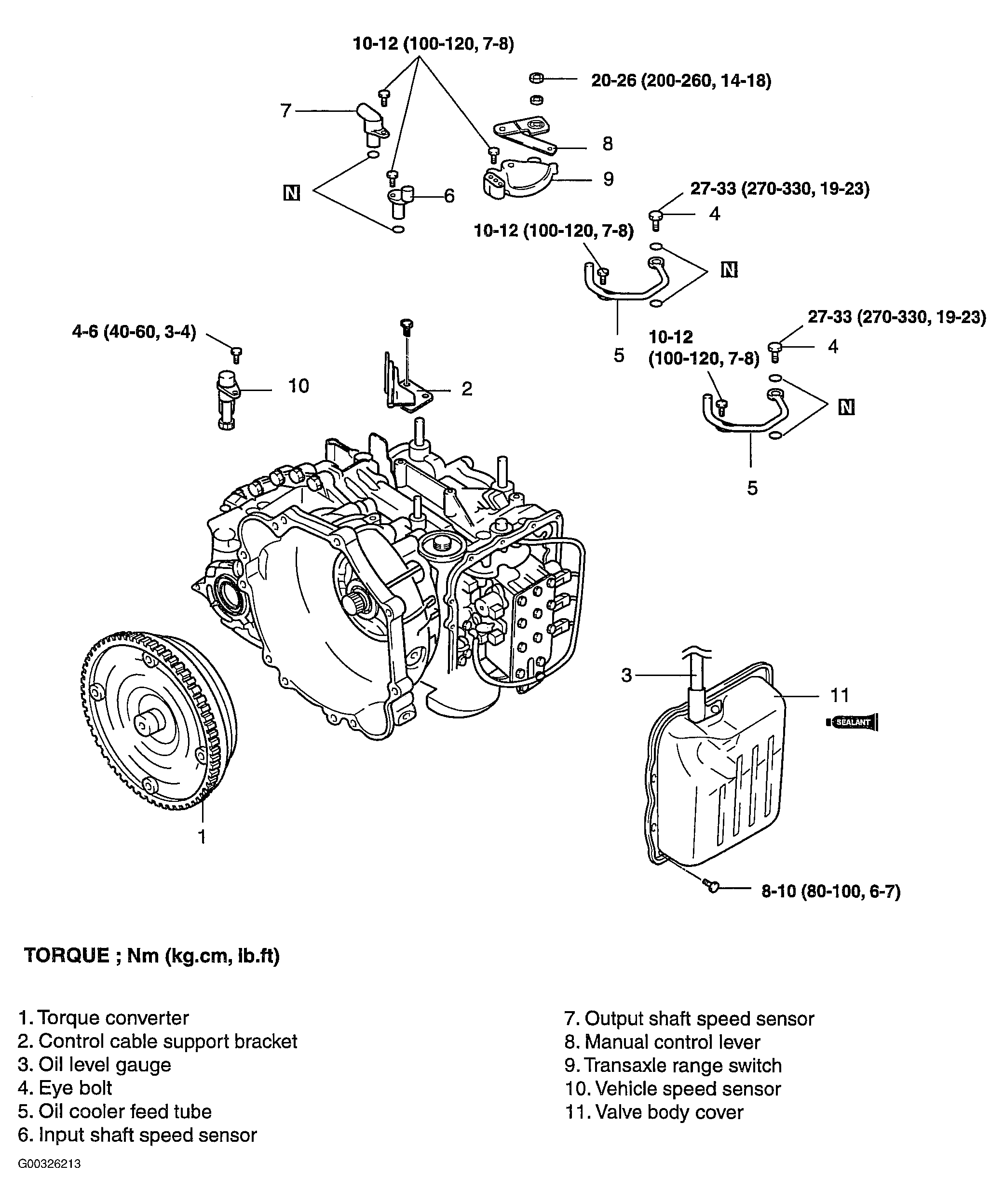

Fig 1: Removing & Installing Automatic Transaxle

G00326213

Courtesy of KIA MOTORS AMERICA, INC.
