Home >> Kia >> 2004 >> Magentis SE, 2.4 6 >> Repair and Diagnosis >> Suspension >> Rear Suspension >> General >> Specifications

Rear Suspension: General: Specifications

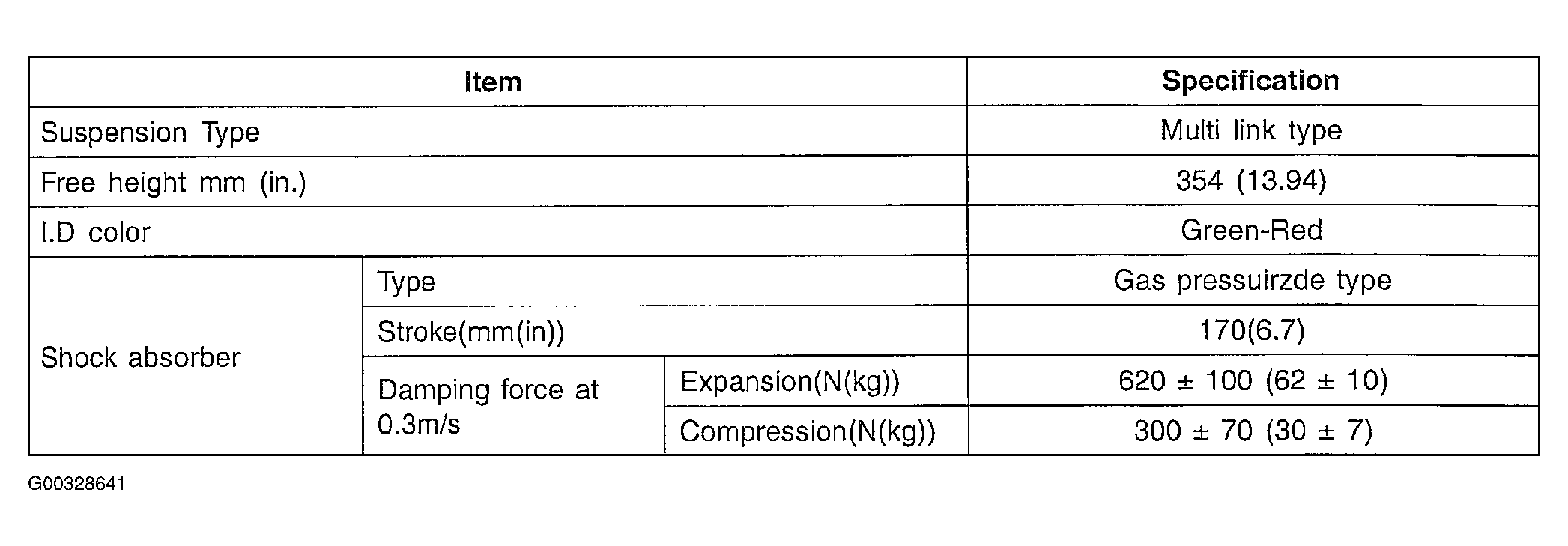

Fig 1: Identifying Rear Suspension Specifications

G00328641

Courtesy of KIA MOTORS AMERICA, INC.
