Lower Arm: Installation

  1. Install the stabilizer link so that the distance (A) is at the standard value.

    Standard value (A) : 3~5 mm (0.118-0.197 in.)

  2. Installation is in reverse order of removal.

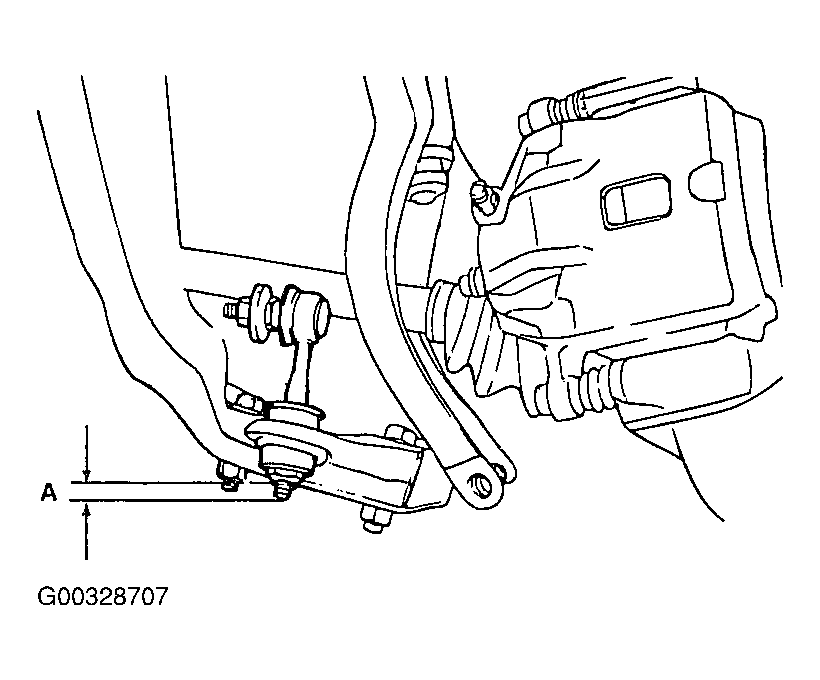

Fig 1: Installing Stabilizer Link
G00328707Courtesy of KIA MOTORS AMERICA, INC.
