Front Hub/Knuckle: Disassembly

Remove the brake disc from the hub.

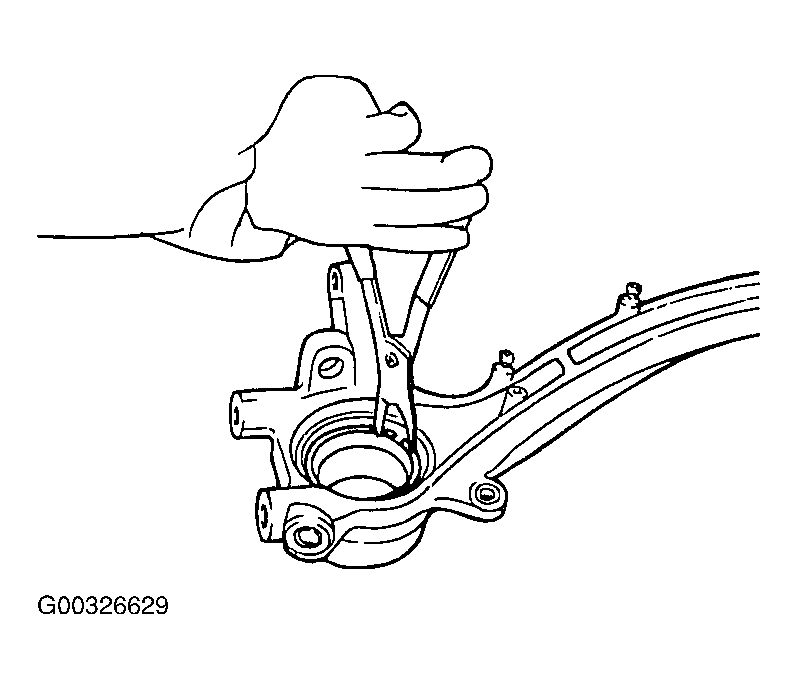

Remove the snap ring.

Fig 1: Removing Snap Ring
Courtesy of KIA MOTORS AMERICA, INC.

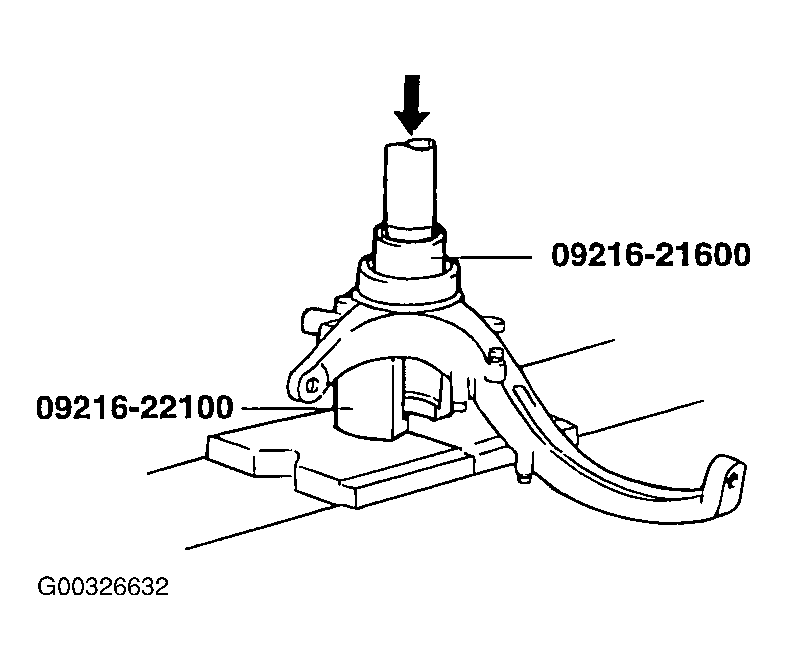

Using the special tool, disconnect the hub from the knuckle.

Fig 2: Separating Hub & Knuckle
Courtesy of KIA MOTORS AMERICA, INC.

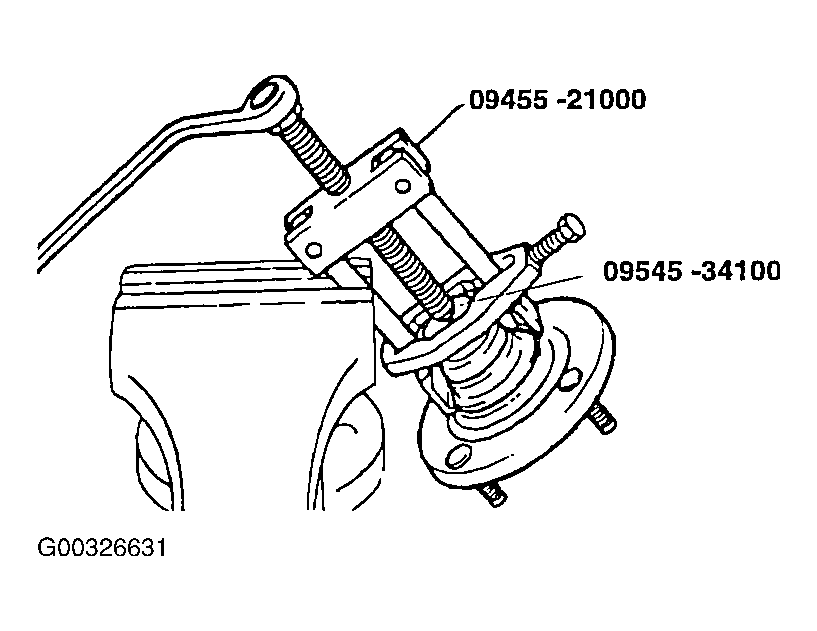

Using the special tool, remove the wheel bearing inner race from the hub.

Fig 3: Removing Wheel Bearing Inner Race
Courtesy of KIA MOTORS AMERICA, INC.

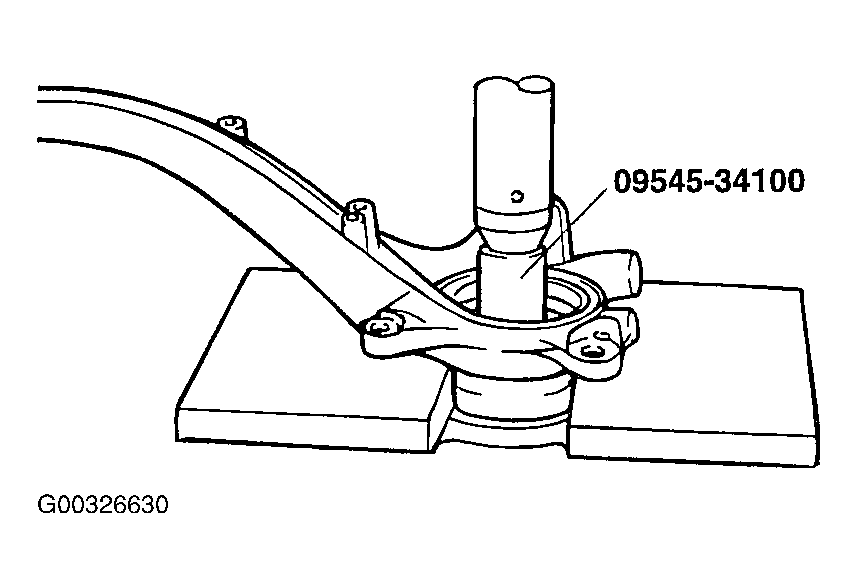

Using the special tool, remove the wheel bearing outer race from the knuckle.

Fig 4: Removing Wheel Bearing Outer Race

Courtesy of KIA MOTORS AMERICA, INC.
