Steering Column And Shaft: Removal

Loosen the tapping screws and lift up the horn pad and remove it.

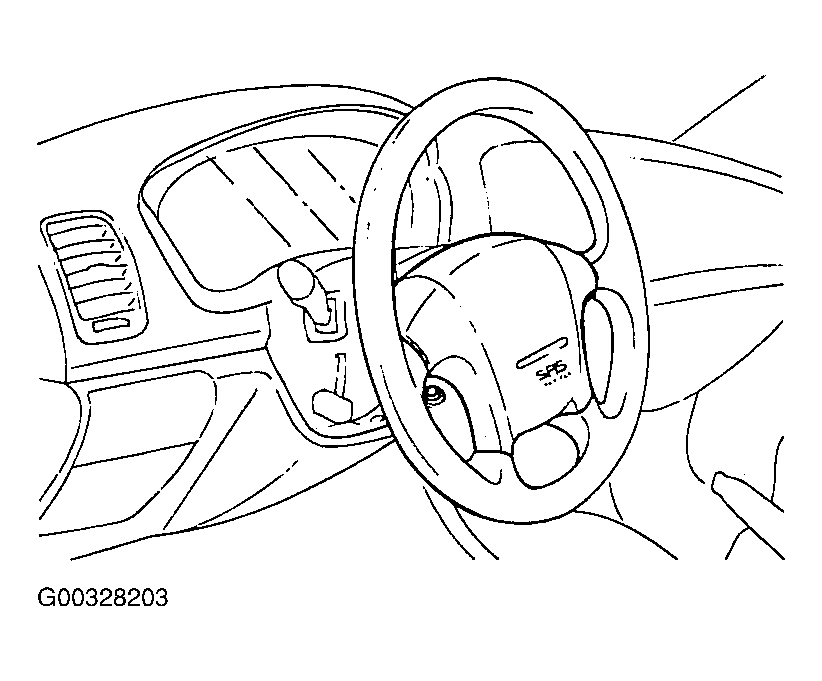

Fig 1: Removing Horn Pad
Courtesy of KIA MOTORS AMERICA, INC.
Remove the lock nut and the washer.
WARNING: Before doing these procedures, disarm airbag system. See AIR BAG DEACTIVATION PROCEDURES .
Remove the steering wheel using the special tool (09561-11001).

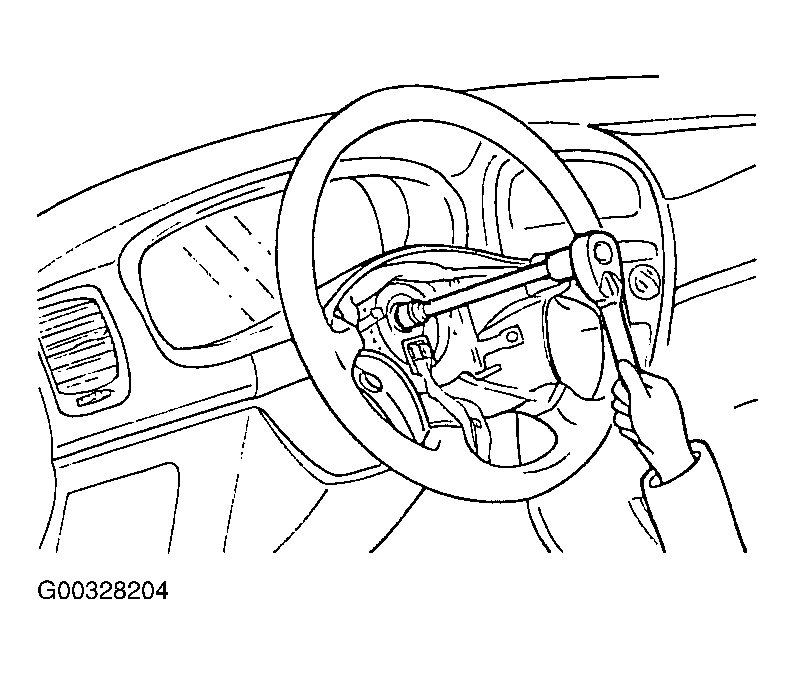

Fig 2: Removing Steering Wheel
Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: Do not hammer on the steering wheel to remove it; doing so may damage the collapsible mechanism.
Remove the steering column lower and upper shrouds.
Remove the lower cover.

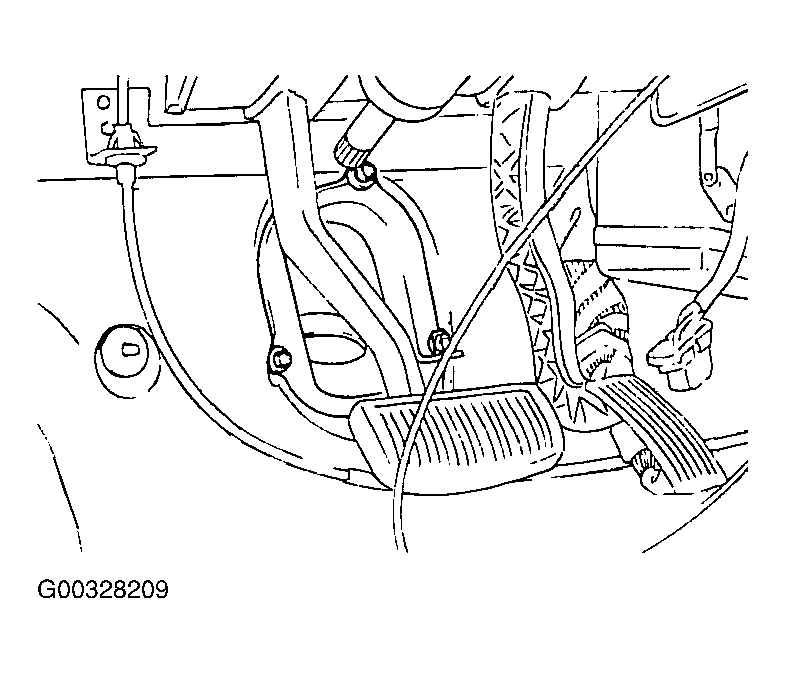

Fig 3: Removing Lower Cover
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the connectors and remove the multifunction switch.

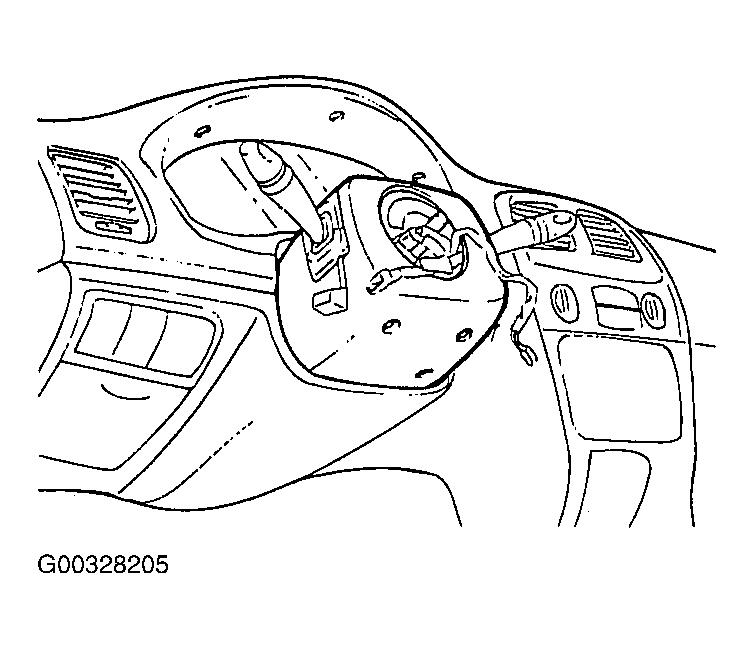

Fig 4: Removing Multi-Function Switch
Courtesy of KIA MOTORS AMERICA, INC.
Remove the bolts securing the coupling and universal joint.
Pull out the coupling and universal joint from the gear box.

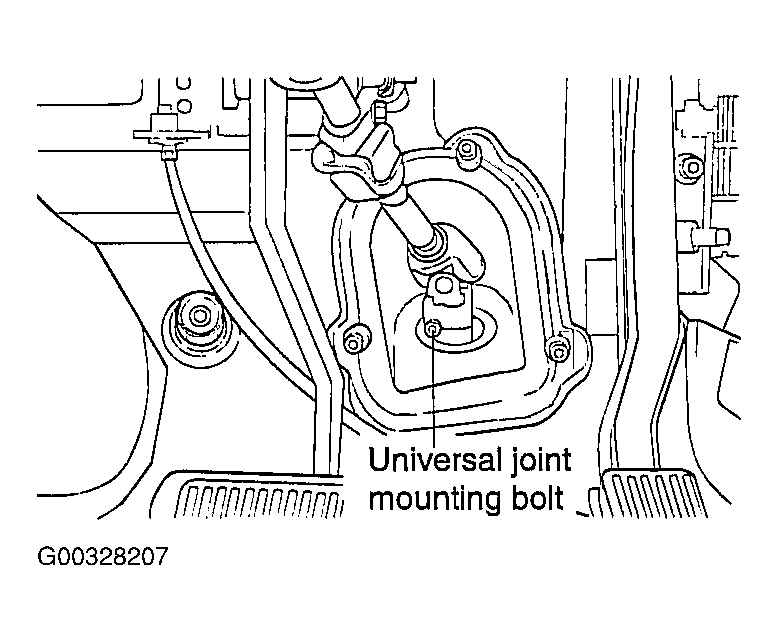

Fig 5: Removing Steering Column (1 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.
Remove the dust cover mounting bolts.
Remove the steering column mounting bolts (4 bolts).

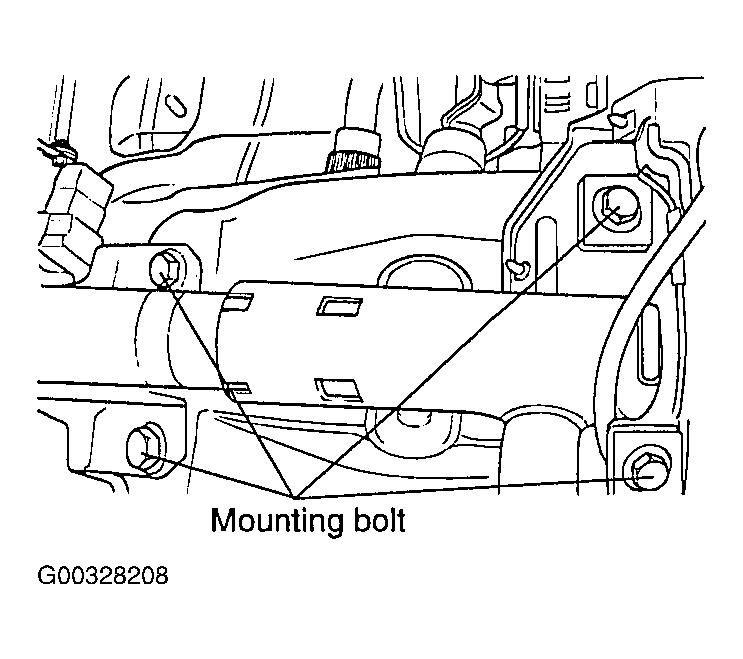

Fig 6: Removing Steering Column (2 Of 3)
Courtesy of KIA MOTORS AMERICA, INC.
Remove the steering column and shaft together with the universal joint and dust cover.

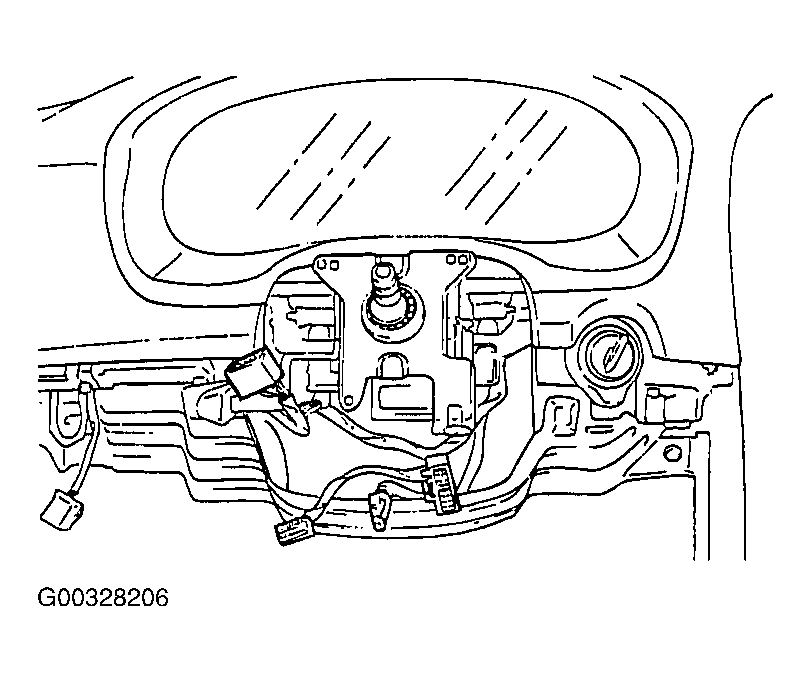

Fig 7: Removing Steering Column (3 Of 3)

Courtesy of KIA MOTORS AMERICA, INC.
