Description (Automatic Transaxle)

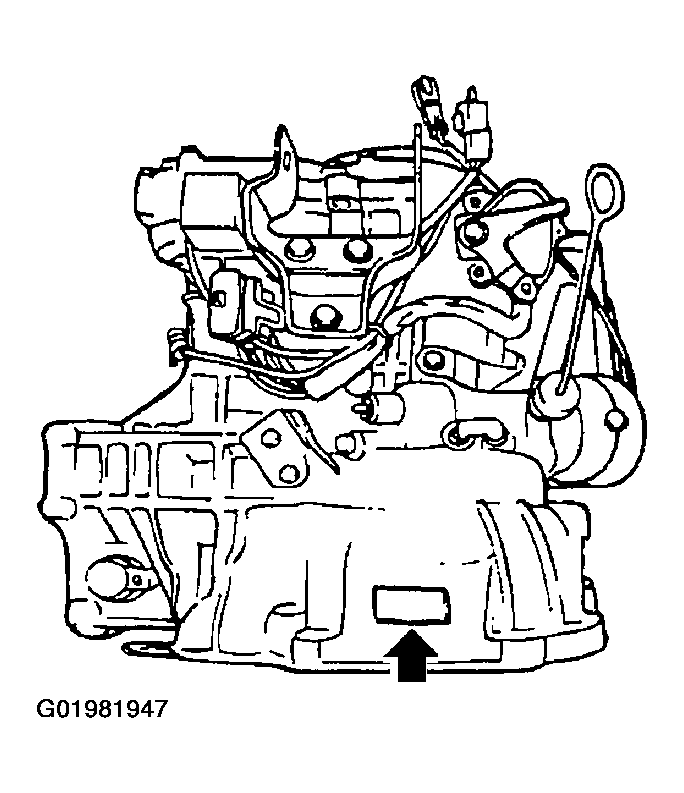

Fig 1: Locating Transaxle Identification Number (Automatic Transaxle)
G01981947Courtesy of KIA MOTORS AMERICA, INC.

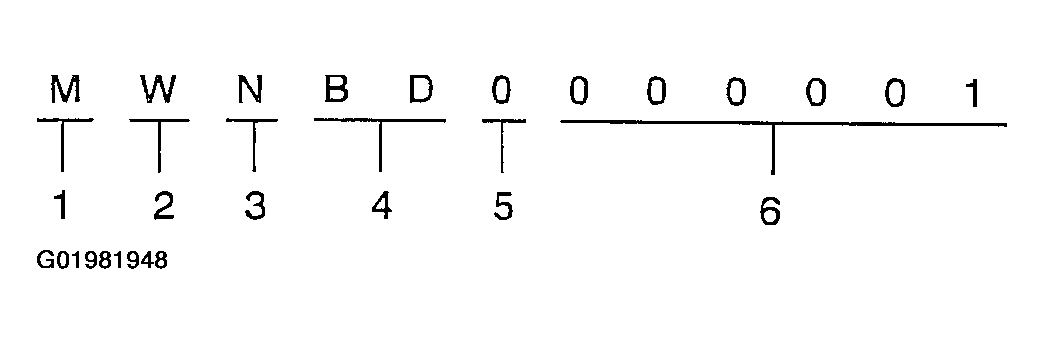

Fig 2: Identifying Transaxle Identification Number (Automatic Transaxle)
G01981948Courtesy of KIA MOTORS AMERICA, INC.
  1. Model

    C : KM 175-5 D : KM 175-6 H : F4A33

  2. Product year

    2 : 2002, 3 : 2003, 4 - 2004

  3. Final gear ration

    F : 4.350 (KM 175-6) A : 3.958 (F4A33)

  4. Classification of detail

    AD : 2.4 Liter Engine BD : 2.0/2.5 Liter Engine

  5. Spare
  6. Serial No.
