Inspect Oil Level

Inspect each component for evidence of leakage, and check the oil level by removing the filler plug. If the oil is contaminated, it is necessary to replace it with new oil.

1. With the vehicle parked at a level place, remove the filler plug and make sure that oil level is the same level as the plug hole.

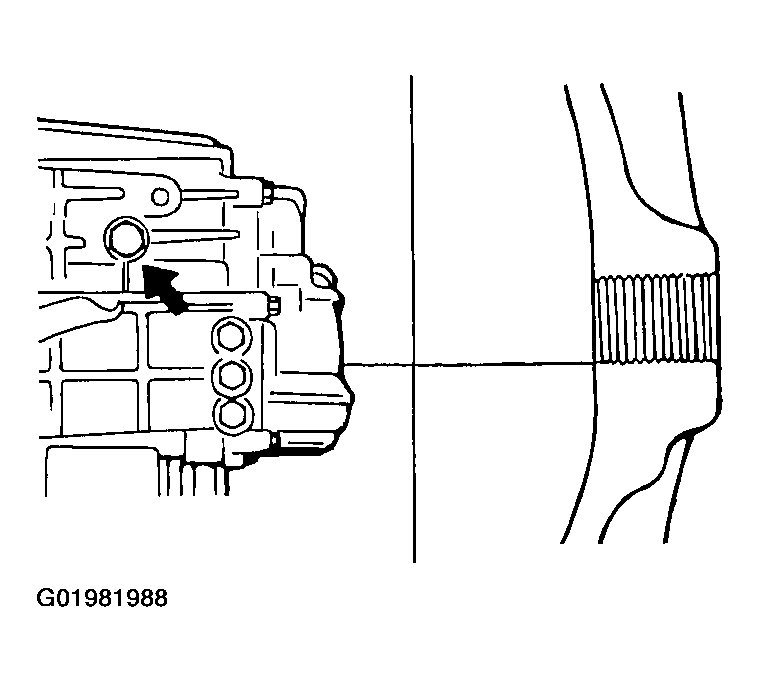

   Fig 1: Checking Oil Level

   Courtesy of KIA MOTORS AMERICA, INC.
2. Check to be sure that the transaxle oil is not dirty.
