Inspection Chart For Diagnostic Trouble Code
DIAGNOSTIC TROUBLE CODE (DTC) LIST
| DTC | Description |
|---|---|

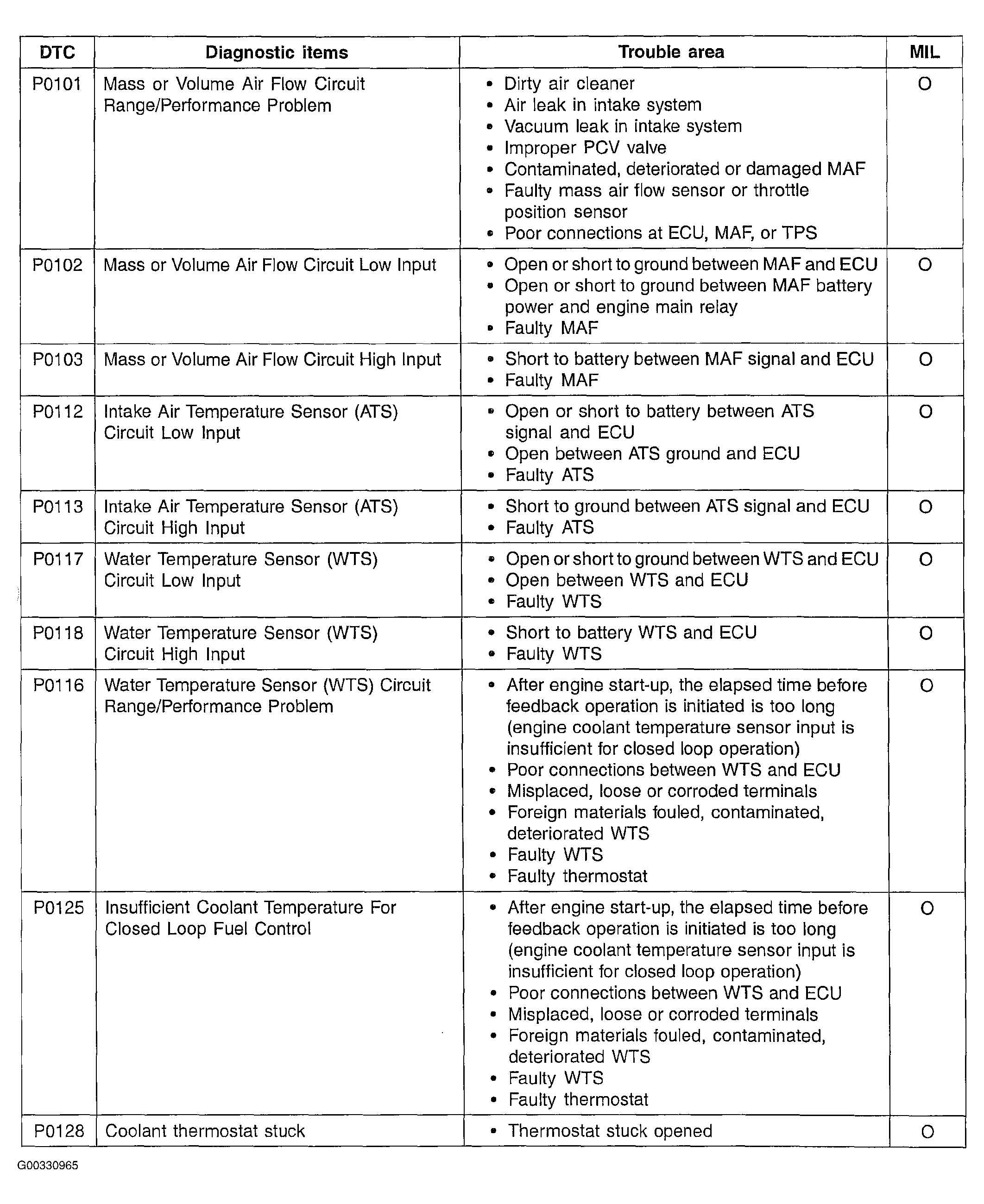

| DTC P0101 | MASS OR VOLUME AIR FLOW CIRCUIT RANGE PERFORMANCE PROBLEM |
| DTC P0102 | MASS OR VOLUME AIR FLOW CIRCUIT LOW INPUT |
| DTC P0103 | MASS OR VOLUME AIR FLOW CIRCUIT HIGH INPUT |
| DTC P0106 | MANIFOLD ABSOLUTE PRESSURE CIRCUIT RANGE PERFORMANCE |
| DTC P0107 | MANIFOLD ABSOLUTE PRESSURE CIRCUIT LOW INPUT |
| DTC P0108 | MANIFOLD ABSOLUTE PRESSURE CIRCUIT HIGH INPUT |
| DTC P0112 | INTAKE AIR TEMPERATURE SENSOR 1 CIRCUIT LOW INPUT |
| DTC P0113 | INTAKE AIR TEMPERATURE SENSOR 1 CIRCUIT HIGH INPUT |
| DTC P0116 | ENGINE COOLANT TEMPERATURE CIRCUIT RANGE PERFORMANCE |
| DTC P0117 | ENGINE COOLANT TEMPERATURE CIRCUIT LOW INPUT |
| DTC P0118 | ENGINE COOLANT TEMPERATURE CIRCUIT HIGH INPUT |

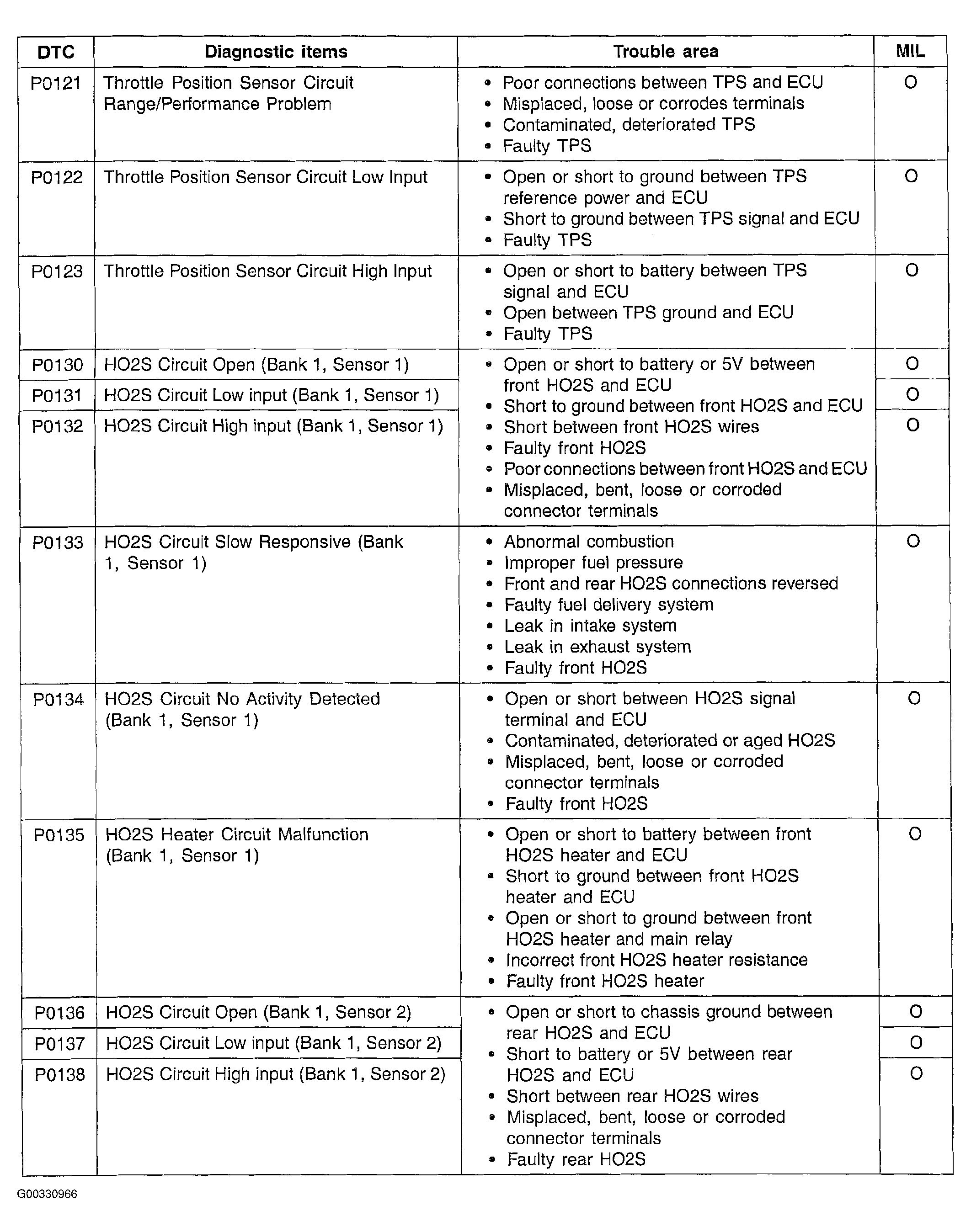

| DTC P0121 | THROTTLE POSITION SENSOR CIRCUIT RANGE PERFORMANCE PROBLEM |
| DTC P0122 | THROTTLE POSITION SENSOR CIRCUIT LOW INPUT |
| DTC P0123 | THROTTLE POSITION SENSOR CIRCUIT HIGH INPUT |
| DTC P0125 | INSUFFICIENT COOLANT TEMPERATURE FOR CLOSED LOOP FUEL CONTROL |
| DTC P0128 | COOLANT THERMOSTAT STUCK OPENED |
| DTC P0130 | HO2S CIRCUIT (BANK 1/SENSOR 1) |
| DTC P0131 | HO2S CIRCUIT LOW VOLTAGE (BANK 1/SENSOR 1) |
| DTC P0132 | HO2S CIRCUIT HIGH VOLTAGE (BANK 1/SENSOR 1) |
| DTC P0133 | HO2S CIRCUIT SLOW RESPONSE (BANK 1/SENSOR 1) |
| DTC P0134 | HO2S CIRCUIT NO ACTIVITY DETECTED (BANK 1/SENSOR 1) |
| DTC P0135 | HO2S HEATER CIRCUIT (BANK 1/SENSOR 1) |
| DTC P0136 | HO2S CIRCUIT (BANK 1/SENSOR 2) |
| DTC P0137 | HO2S CIRCUIT LOW VOLTAGE (BANK 1/SENSOR 2) |
| DTC P0138 | HO2S CIRCUIT HIGH VOLTAGE (BANK 1/SENSOR 2) |

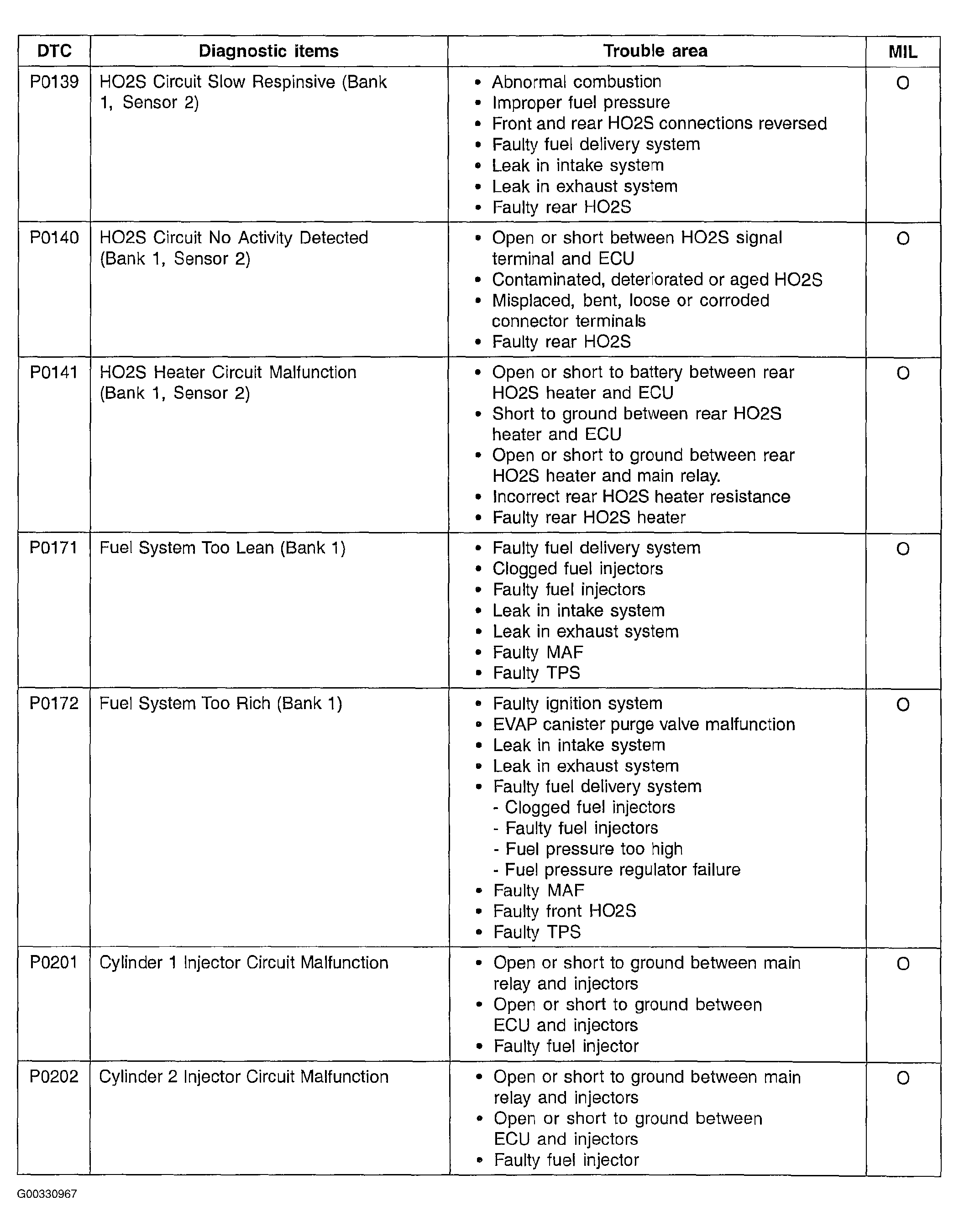

| DTC P0139 | HO2S CIRCUIT SLOW RESPONSE (BANK 1/SENSOR 2) |
| DTC P0140 | HO2S CIRCUIT NO ACTIVITY DETECTED (BANK 1/SENSOR 2) |
| DTC P0141 | HO2S HEATER CIRCUIT (BANK 1/SENSOR 2) |
| DTC P0171 | SYSTEM TOO LEAN (BANK 1) |
| DTC P0172 | SYSTEM TOO RICH (BANK 1) |
| DTC P0181 | DIFFERENCE OF FUEL TEMPERATURE AND ENGINE COOLANT TEMPERATURE AT START IS TOO LARGE |
| DTC P0182 | FUEL TEMPERATURE CIRCUIT LOW INPUT |
| DTC P0183 | FUEL TEMPERATURE CIRCUIT HIGH INPUT |
| DTC P0201 | CYLINDER 1 INJECTOR CIRCUIT MALFUNCTION |
| DTC P0202 | CYLINDER 2 INJECTOR CIRCUIT MALFUNCTION |

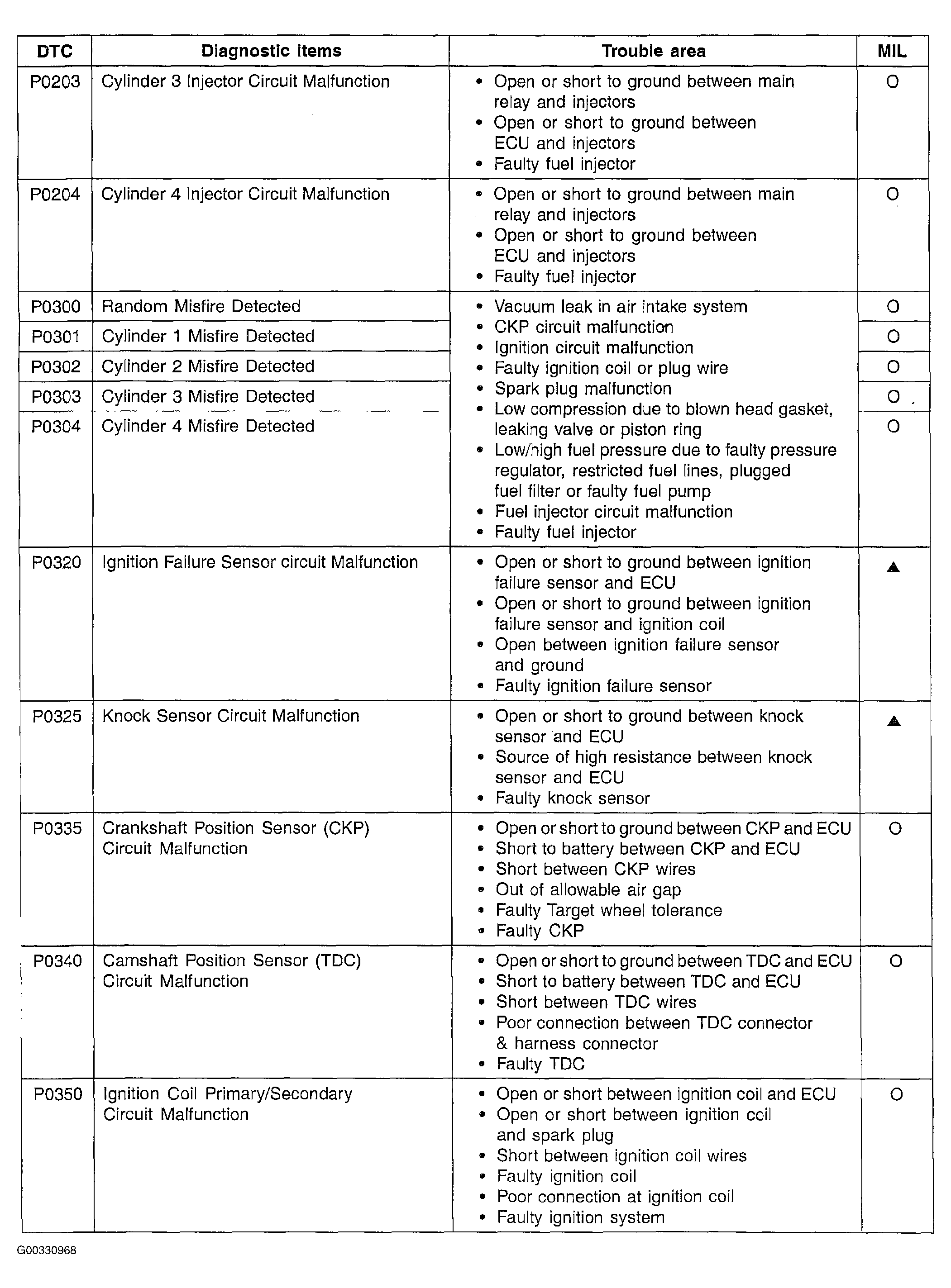

| DTC P0203 | CYLINDER 3 INJECTOR CIRCUIT MALFUNCTION |
| DTC P0204 | CYLINDER 4 INJECTOR CIRCUIT MALFUNCTION |
| DTC P0300 | RANDOM MULTIPLE CYLINDER MISFIRE DETECTED |
| DTC P0301 | CYLINDER 1 MISFIRE DETECTED |
| DTC P0302 | CYLINDER 2 MISFIRE DETECTED |
| DTC P0303 | CYLINDER 3 MISFIRE DETECTED |
| DTC P0304 | CYLINDER 4 MISFIRE DETECTED |
| DTC P0320 | IGNITION FAILURE SENSOR MALFUNCTION |
| DTC P0325 | KNOCK SENSOR 1 CIRCUIT |
| DTC P0335 | CRANKSHAFT POSITION SENSOR CIRCUIT MALFUNCTION |
| DTC P0340 | CAMSHAFT POSITION SENSOR CIRCUIT MALFUNCTION |
| DTC P0350 | IGNITION COIL PRIMARY SECONDARY CIRCUIT MALFUNCTION |

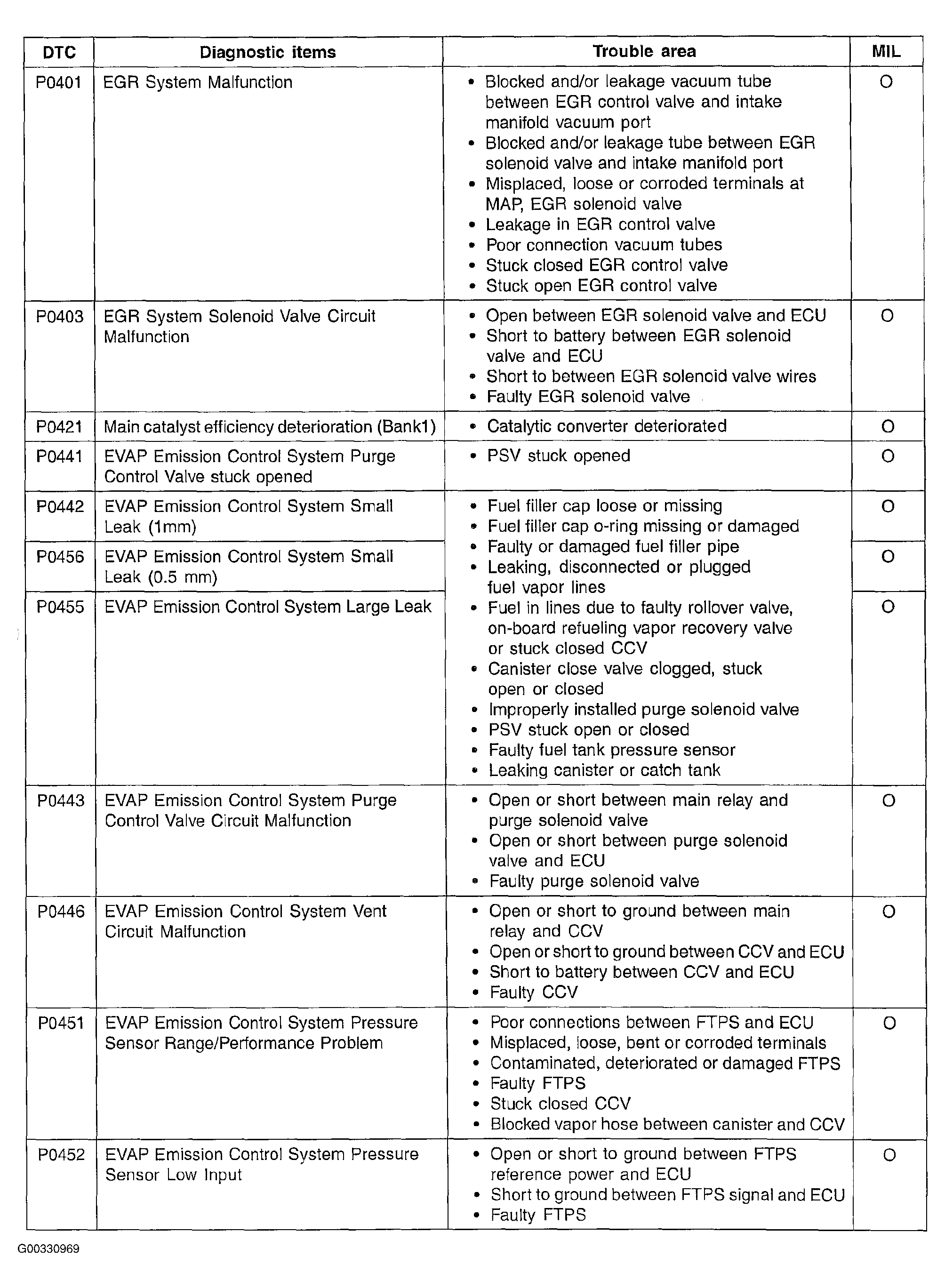

| DTC P0401 | EXHAUST GAS RECIRCULATION FLOW INSUFFICIENT DETECTED |
| DTC P0403 | EXHAUST GAS RECIRCULATION CONTROL CIRCUIT |
| DTC P0421 | WARM UP CATALYST EFFICIENCY BELOW THRESHOLD (BANK 1) |
| DTC P0441 | EVAP EMISSION SYSTEM INCORRECT PURGE FLOW |
| DTC P0442 | EVAP EMISSION SYSTEM - LEAK DETECTED (SMALL LEAK) |
| DTC P0443 | EVAP EMISSION SYSTEM - PURGE CTRL. VALVE CIRCUIT |
| DTC P0446 | EVAP EMISSION SYSTEM - VENT CONTROL CIRCUIT |
| DTC P0451 | EVAP EMISSION SYSTEM - PRESSURE SENSOR RANGE PERFORMANCE |
| DTC P0452 | EVAP EMISSION SYSTEM - PRESSURE SENSOR LOW INPUT |

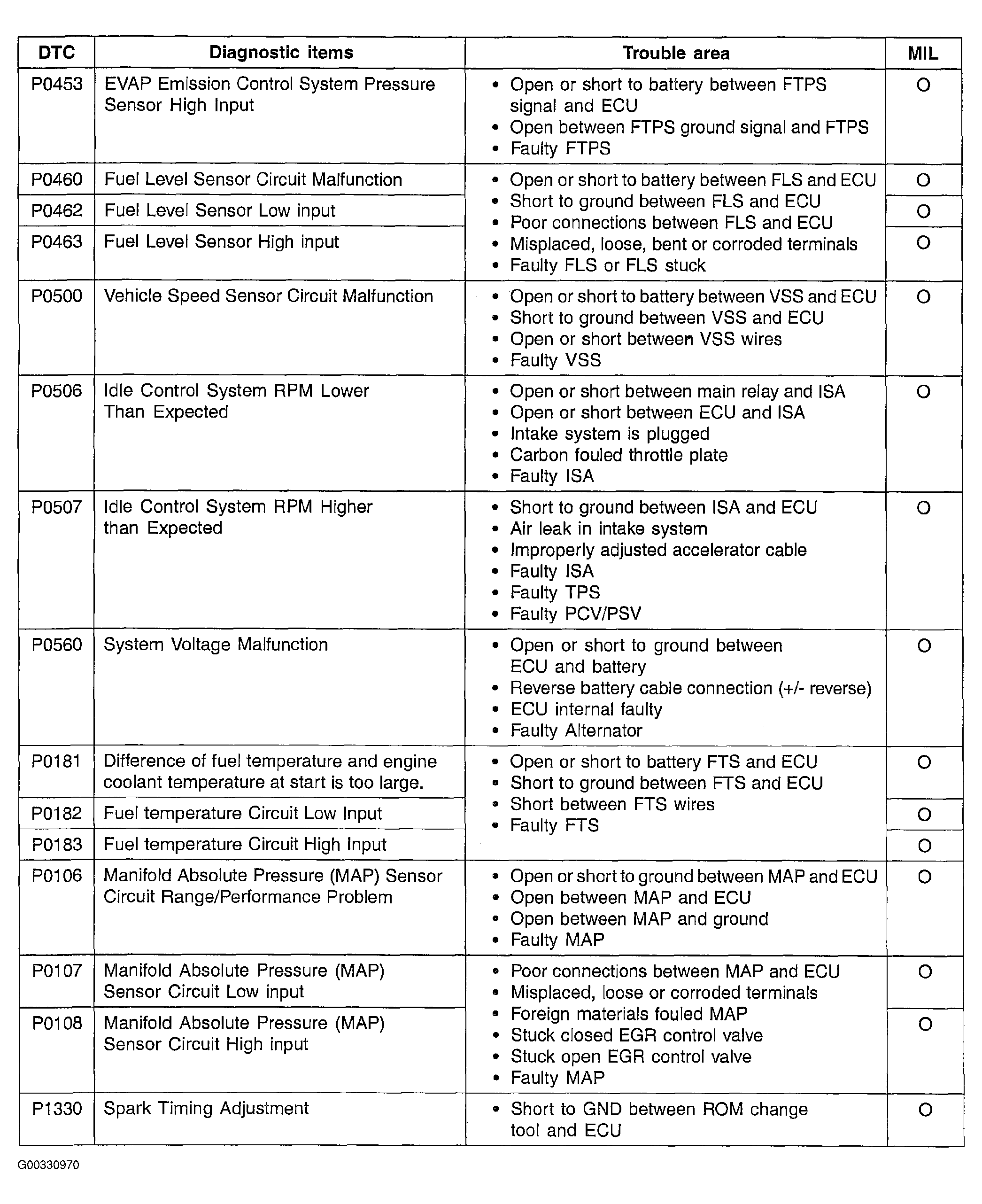

| DTC P0453 | EVAP EMISSION SYSTEM - PRESSURE SENSOR HIGH INPUT |
| DTC P0455 | EVAP EMISSION SYSTEM - LEAK DETECTED (LARGE LEAK) |
| DTC P0456 | EVAP EMISSION SYSTEM - LEAK DETECTED (VERY SMALL LEAK) |
| DTC P0460 | FUEL LEVEL SENSOR CIRCUIT |
| DTC P0461 | FUEL LEVEL SENSOR A CIRCUIT RANGE PERFORMANCE |
| DTC P0462 | FUEL LEVEL SENSOR A CIRCUIT LOW INPUT |
| DTC P0463 | FUEL LEVEL SENSOR A CIRCUIT HIGH INPUT |
| DTC P0500 | VEHICLE SPEED SENSOR |
| DTC P0501 | VEHICLE SPEED SENSOR CIRCUIT MALFUNCTION |
| DTC P0506 | IDLE AIR CONTROL SYSTEM - RPM LOWER THAN EXPECTED |
| DTC P0507 | IDLE AIR CONTROL SYSTEM - RPM HIGHER THAN EXPECTED |

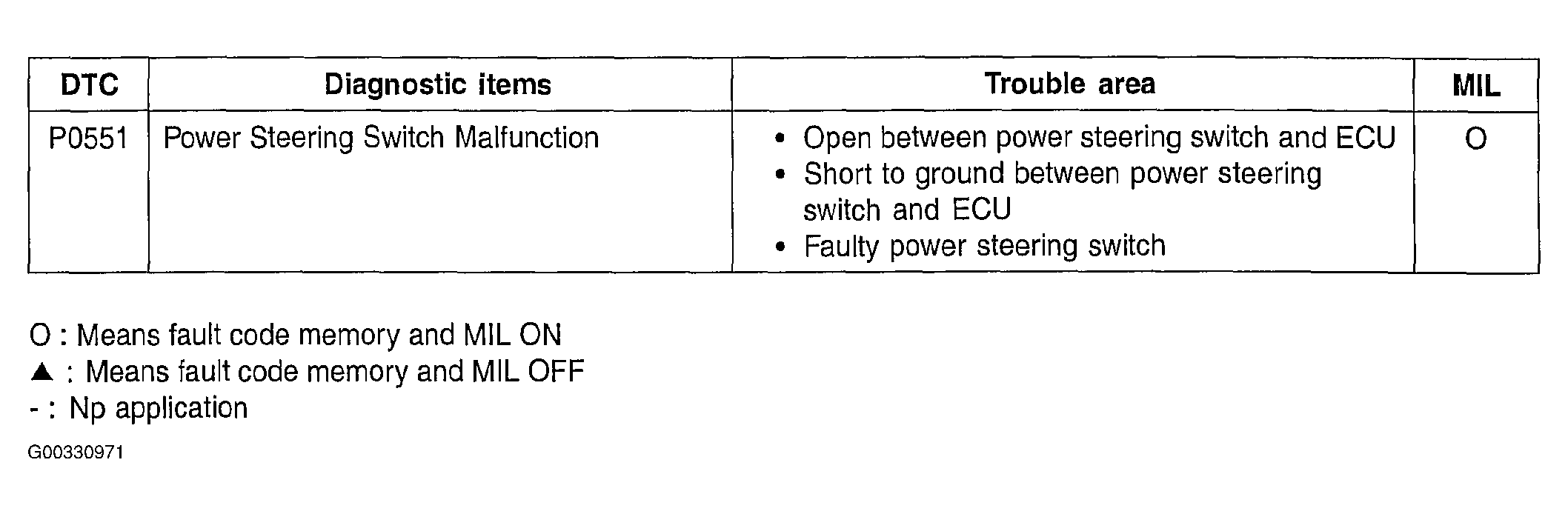

| DTC P0551 | POWER STEERING PRESSURE SENSOR SWITCH CIRCUIT RANGE PERFORMANCE |
| DTC P0560 | SYSTEM VOLTAGE |
| DTC P1330 | SPARK TIMING ADJUST SIGNAL |
| DTC P1723 | TCM POWER RELAY OPEN OR SHORT (GROUND) |
