Positive Crankcase Ventilation (PCV) Valve: Description

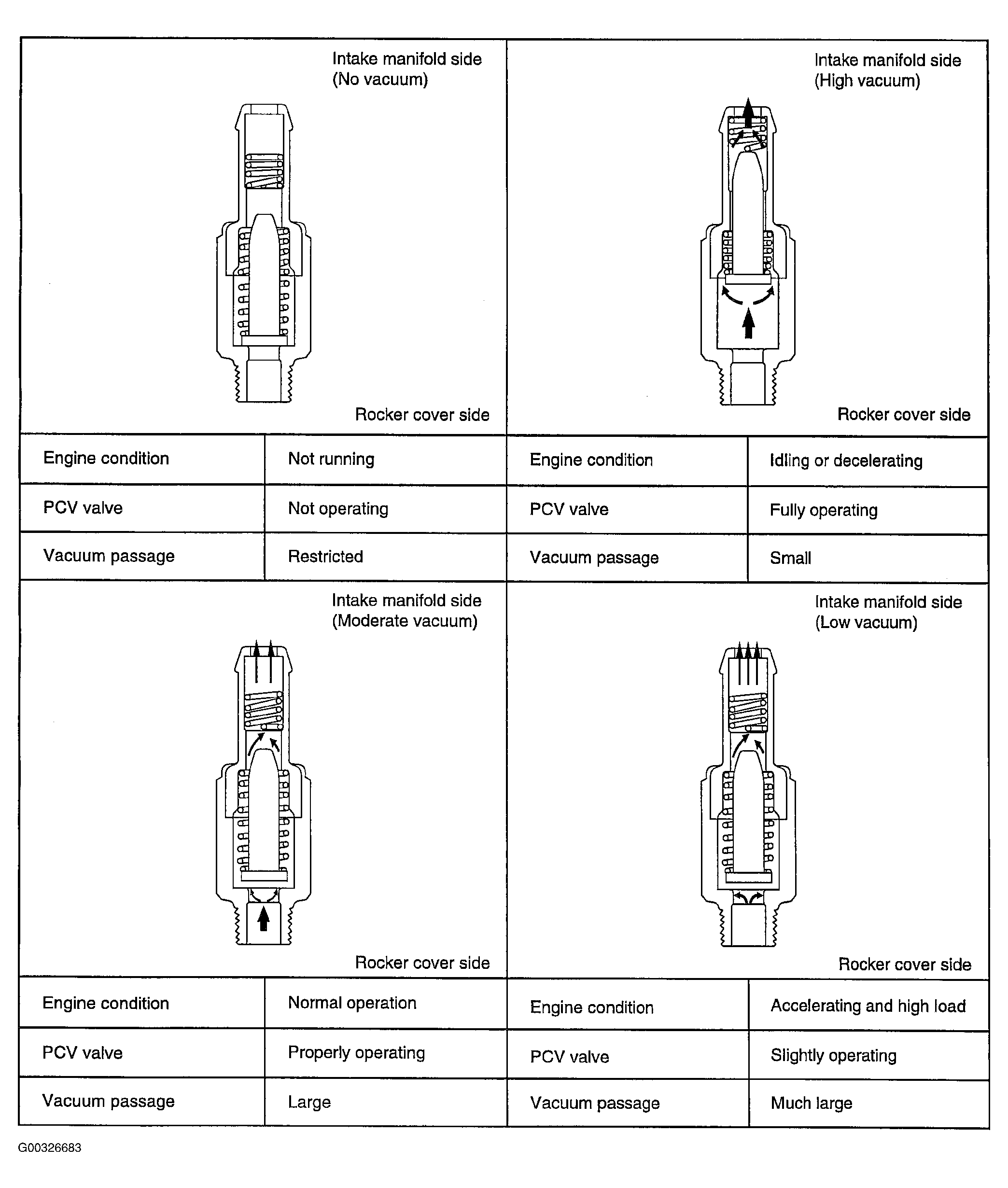

Fig 1: Identifying Positive Crankcase Ventilation (PCV) Valve

G00326683

Courtesy of KIA MOTORS AMERICA, INC.
