Rear Wheel Speed Sensor

  1. Remove the rear seat cushion.
  2. Remove the rear pillar trim assembly.

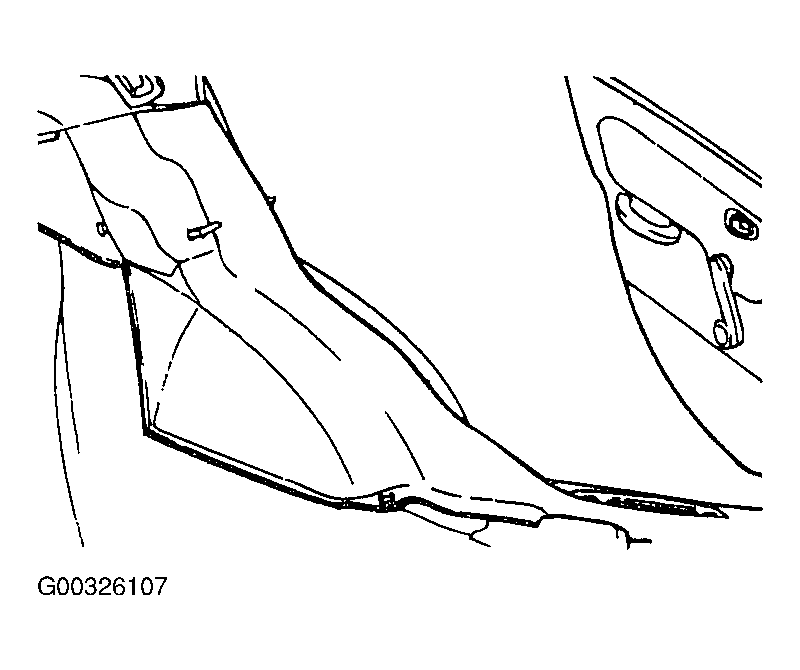

    Fig 1: Removing Rear Pillar Trim Assembly
    G00326107Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the tire assembly.
  4. Remove the rear wheel speed sensor after disconnecting the wheel speed sensor connector.

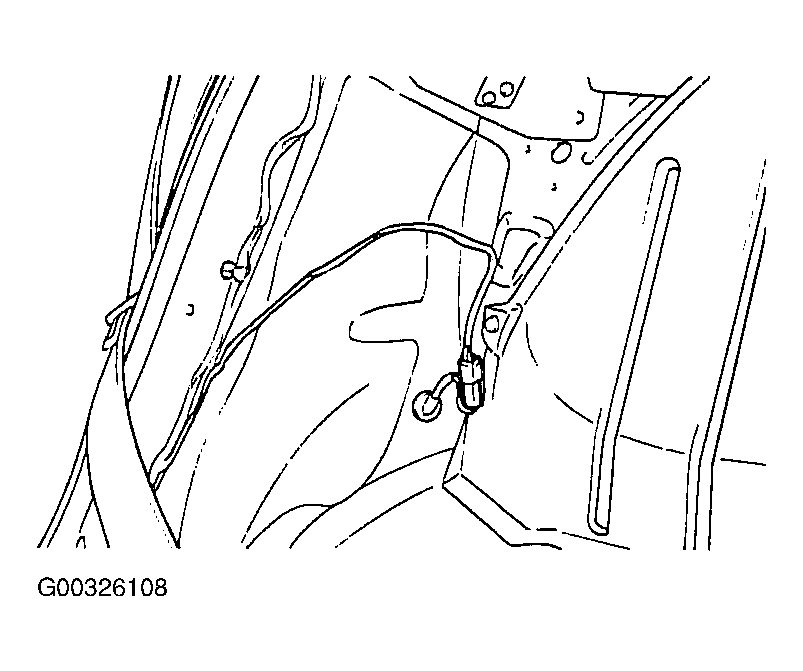

Fig 2: Removing Rear Wheel Speed Sensor
G00326108Courtesy of KIA MOTORS AMERICA, INC.
