Inspection Chart For Diagnostic Trouble Codes
Inspection Chart For Diagnostic Trouble Codes
Inspect according to the inspection chart that is appropriate for the malfunction code.

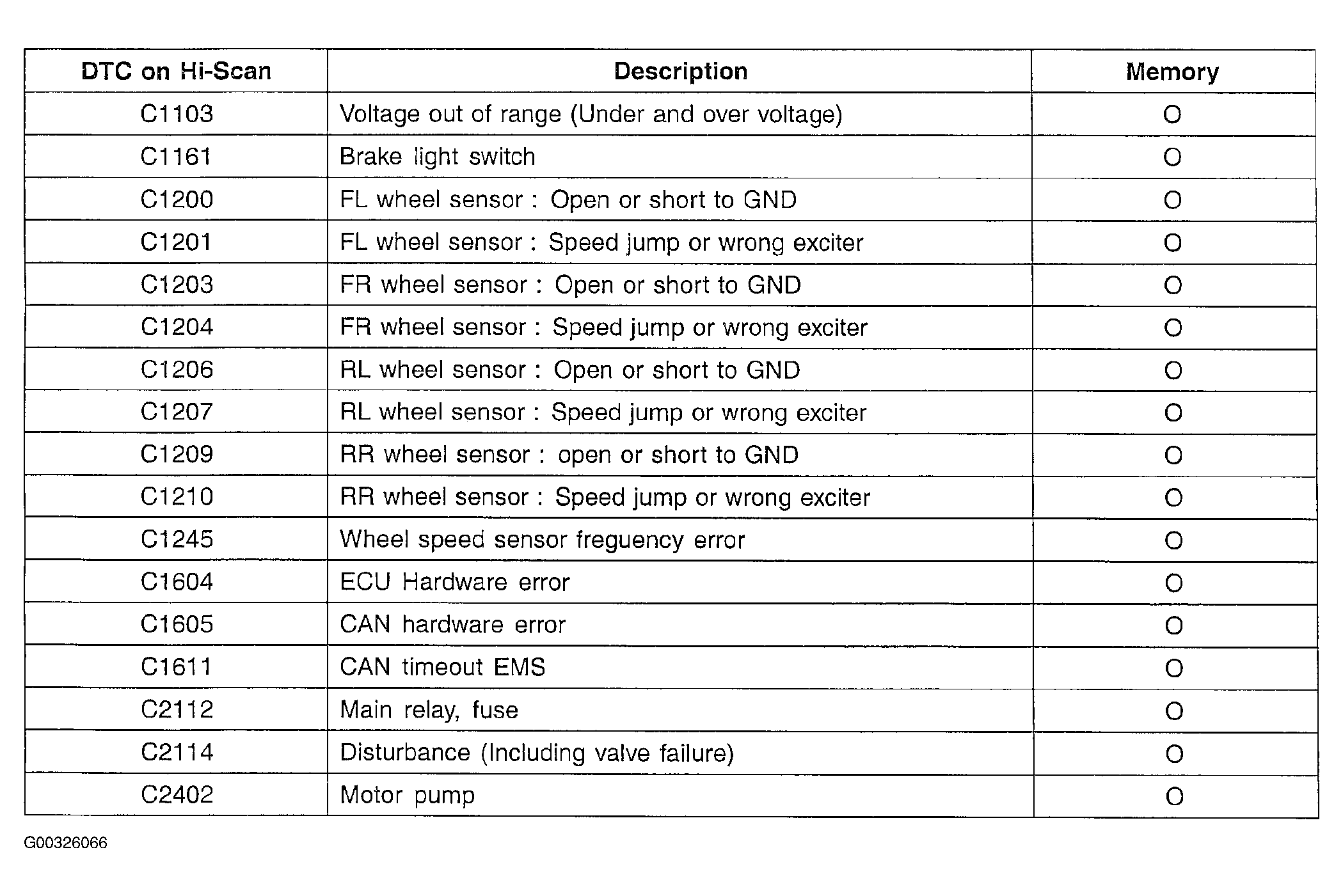

Fig 1: Identifying Inspection Chart For Diagnostic Trouble Codes
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
