Front Seat: Inspection

  1. Check that seat adjuster and reclining lever move smoothly.
  2. Look under seat and visually check seat adjuster for wear or damage.

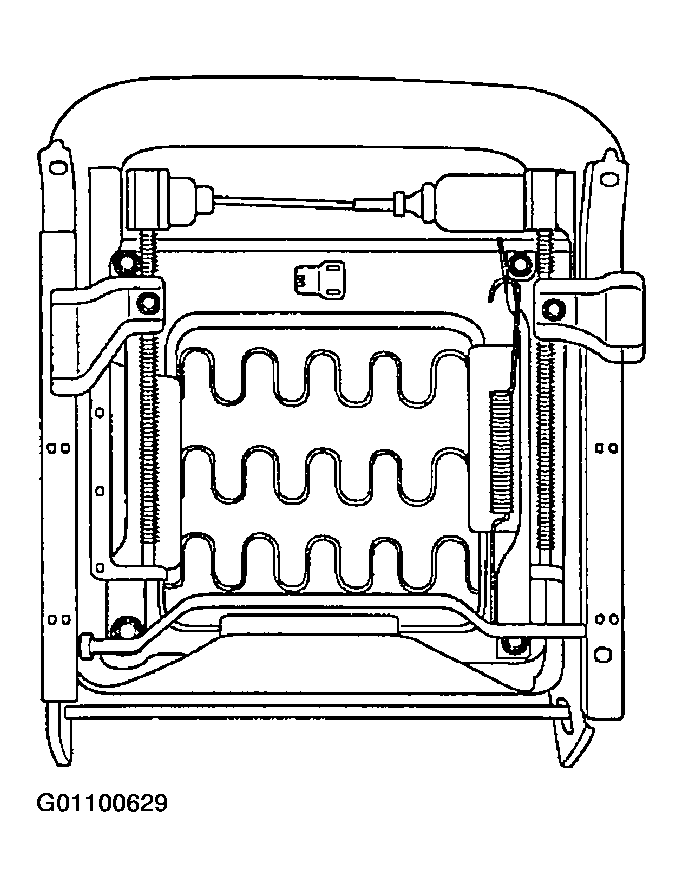

    Fig 1: Locating Seat Adjusters
    G01100629Courtesy of KIA MOTORS AMERICA, INC.
  3. Apply grease to all exposed moving parts.
