Rear Door Trim: Removal

Disconnect negative battery cable.
Remove inside door garnish.
Remove inside handle cover.
- Remove screw cover and one screw.
- Unfasten inside handle cover.
Fig 1: Removing Inside Handle Cover (Rear Door)
Courtesy of KIA MOTORS AMERICA, INC.
Remove door trim.
- Remove one screw on pull handle.

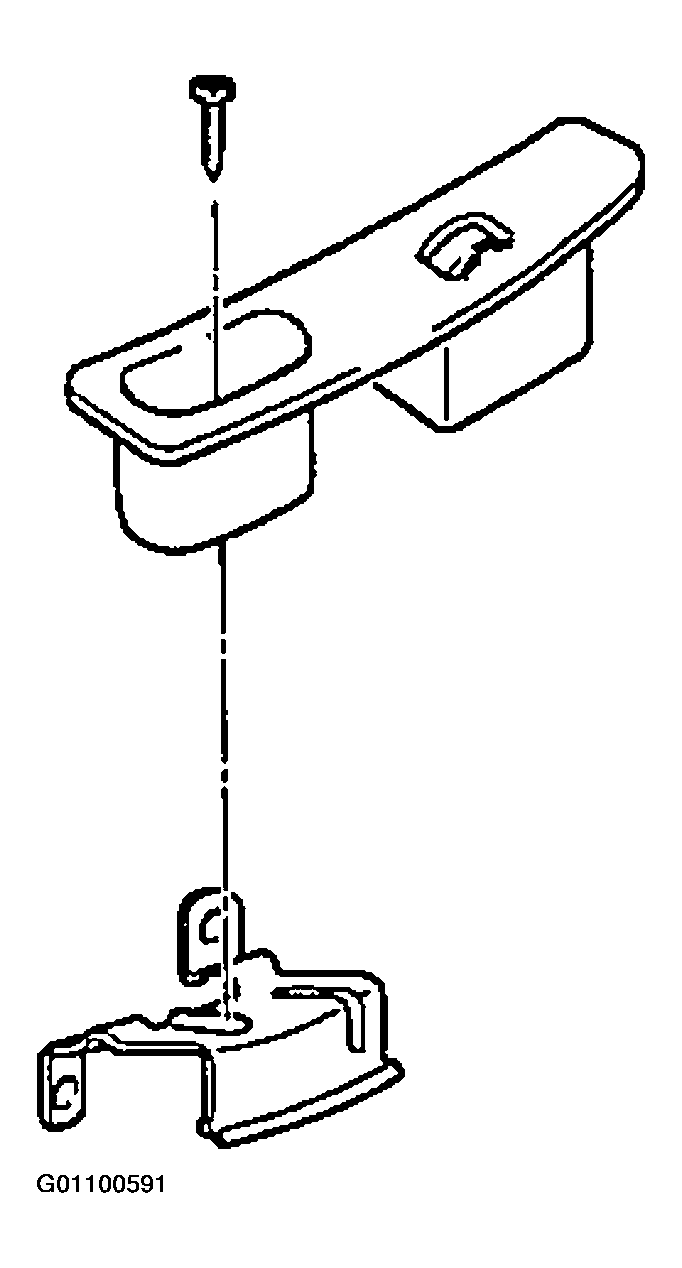

  Fig 2: Removing Screw On Pull Handle (Rear Door)
  Courtesy of KIA MOTORS AMERICA, INC.
- Remove screw cover and two screws on left side of door trim.

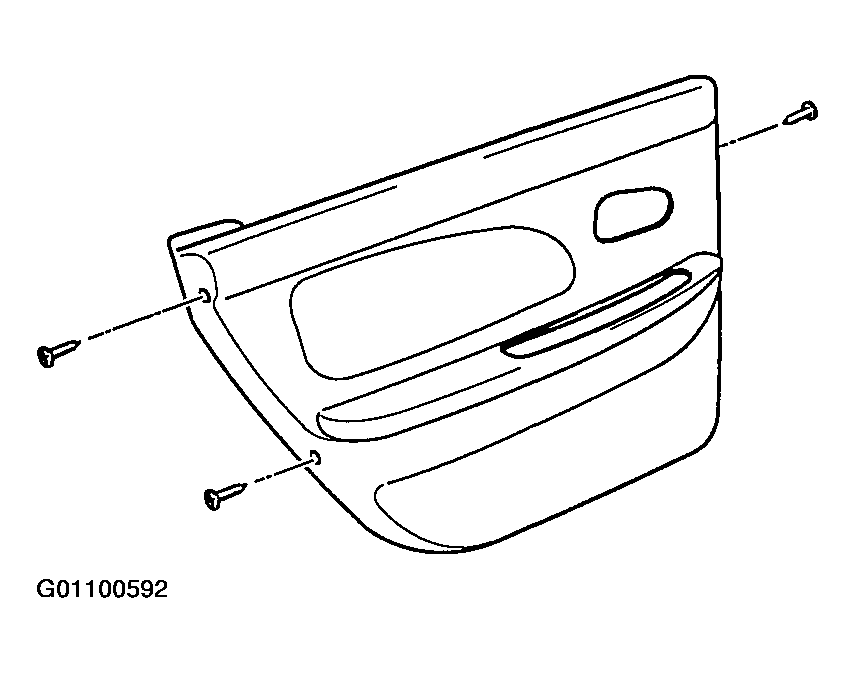

  Fig 3: Removing Screw Cover (Rear Door)
  Courtesy of KIA MOTORS AMERICA, INC.
- Remove one screw on right side of door trim.
- Unfasten door trim.
- Disconnect power window switch connector.
