Power Window Main Switch

  1. Remove the switch from the door trim panel.
  2. Check for continuity between the terminals. If continuity is not as specified in the table, replace the power window switch.

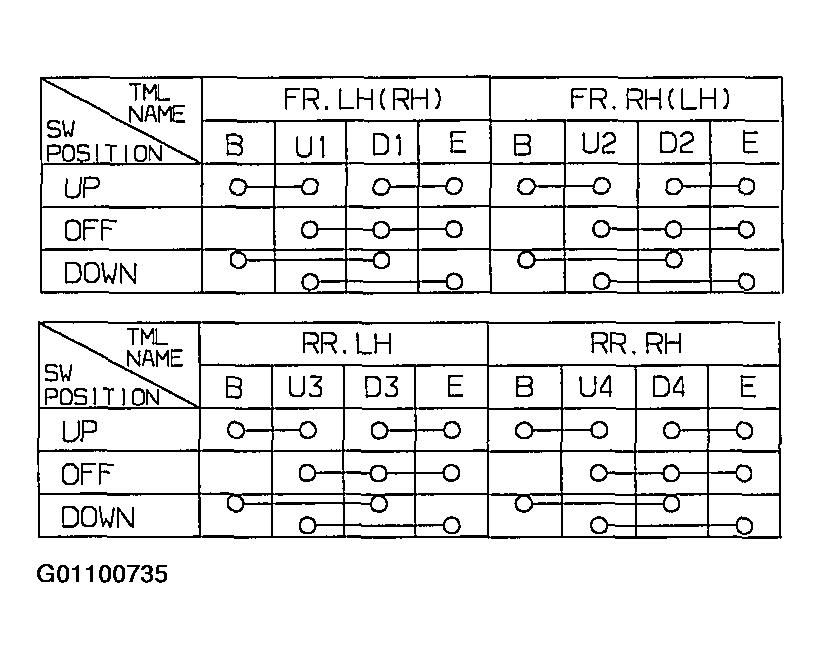

    Fig 1: Checking For Continuity Between The Power Window Main Switch Terminals
    G01100735Courtesy of KIA MOTORS AMERICA, INC.
    Fig 2: Identifying Power Window Main Switch Connector Terminals
    G01100736Courtesy of KIA MOTORS AMERICA, INC.
