Wiper/Washer Systems: Component

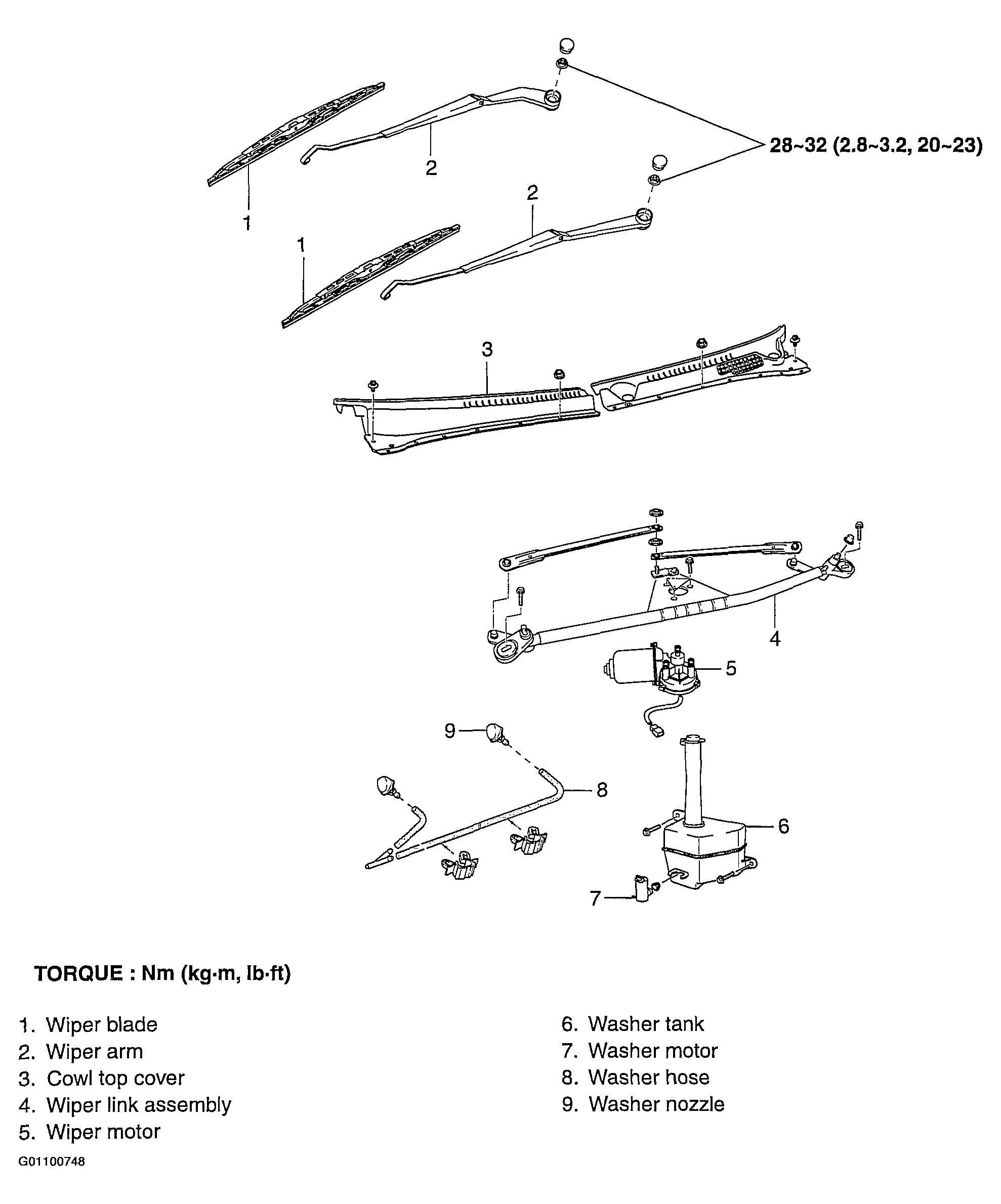

Fig 1: Identifying Windshield Wiper/Washer Components

G01100748

Courtesy of KIA MOTORS AMERICA, INC.
