Stop Lamp Switch

After operating the stop lamp switch, check for continuity between the terminals.

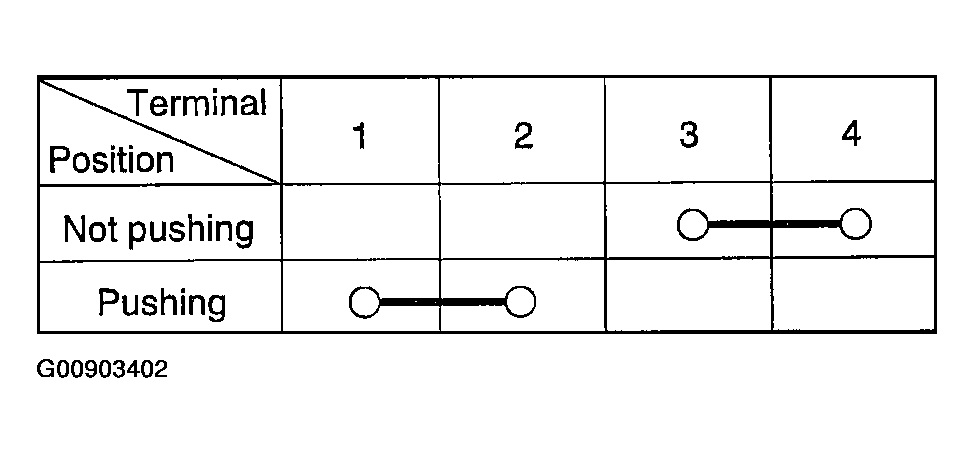

Fig 1: Testing Stop Lamp Switch (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

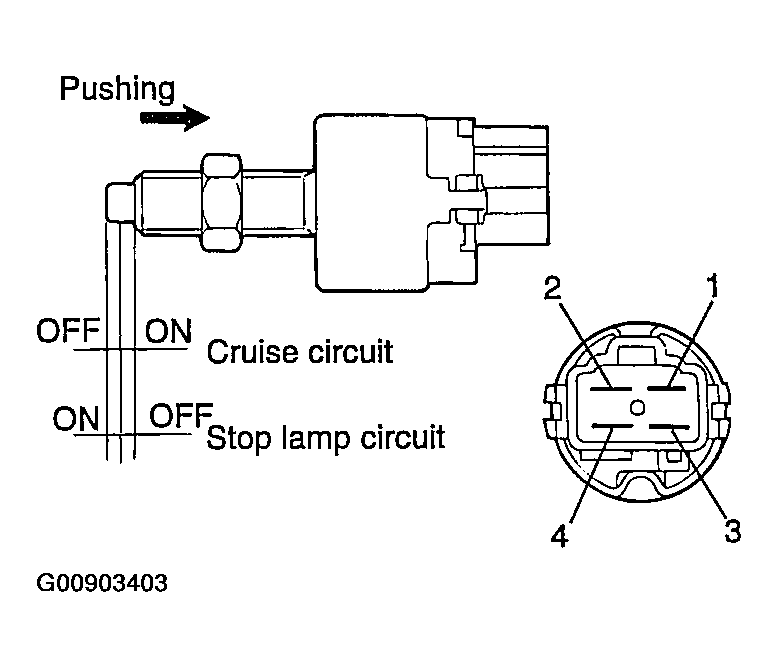

Fig 2: Testing Stop Lamp Switch (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.
