Cruise Control Cable

Prior to proceeding with the final cable adjustment, make sure that the lever attached to throttle valve is in the normal idle position.

1. Assemble the cable to actuator & unit assembly.
2. Tighten nut "b" after pulled cable tightly.
3. Back nut "b" off one turn.
4. Tighten nut "a".
5. Cable should have approximately 1 mm of slack with actuator & unit against stop.

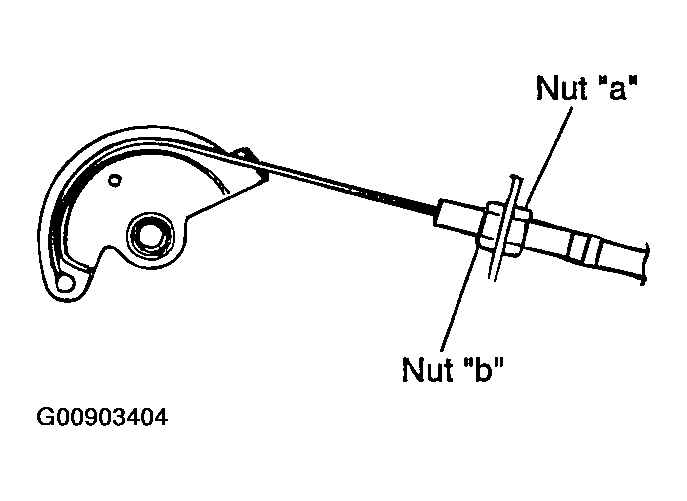

Fig 1: Adjusting Cruise Control Cable

Courtesy of KIA MOTORS AMERICA, INC.
