Front Suspension
>>
Notes
Front Suspension: Notes

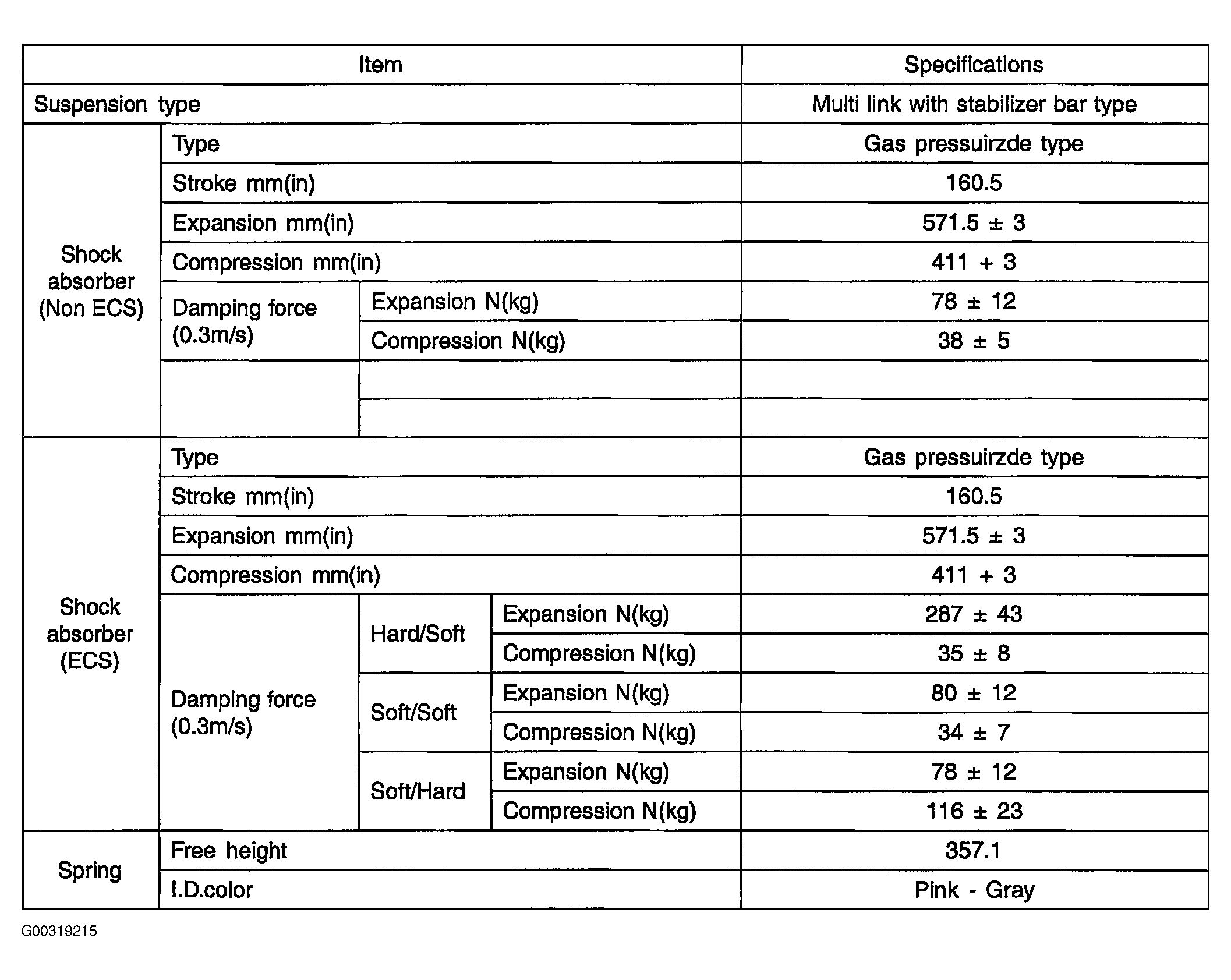

Fig 1: Specifications
Courtesy of KIA MOTORS AMERICA, INC.

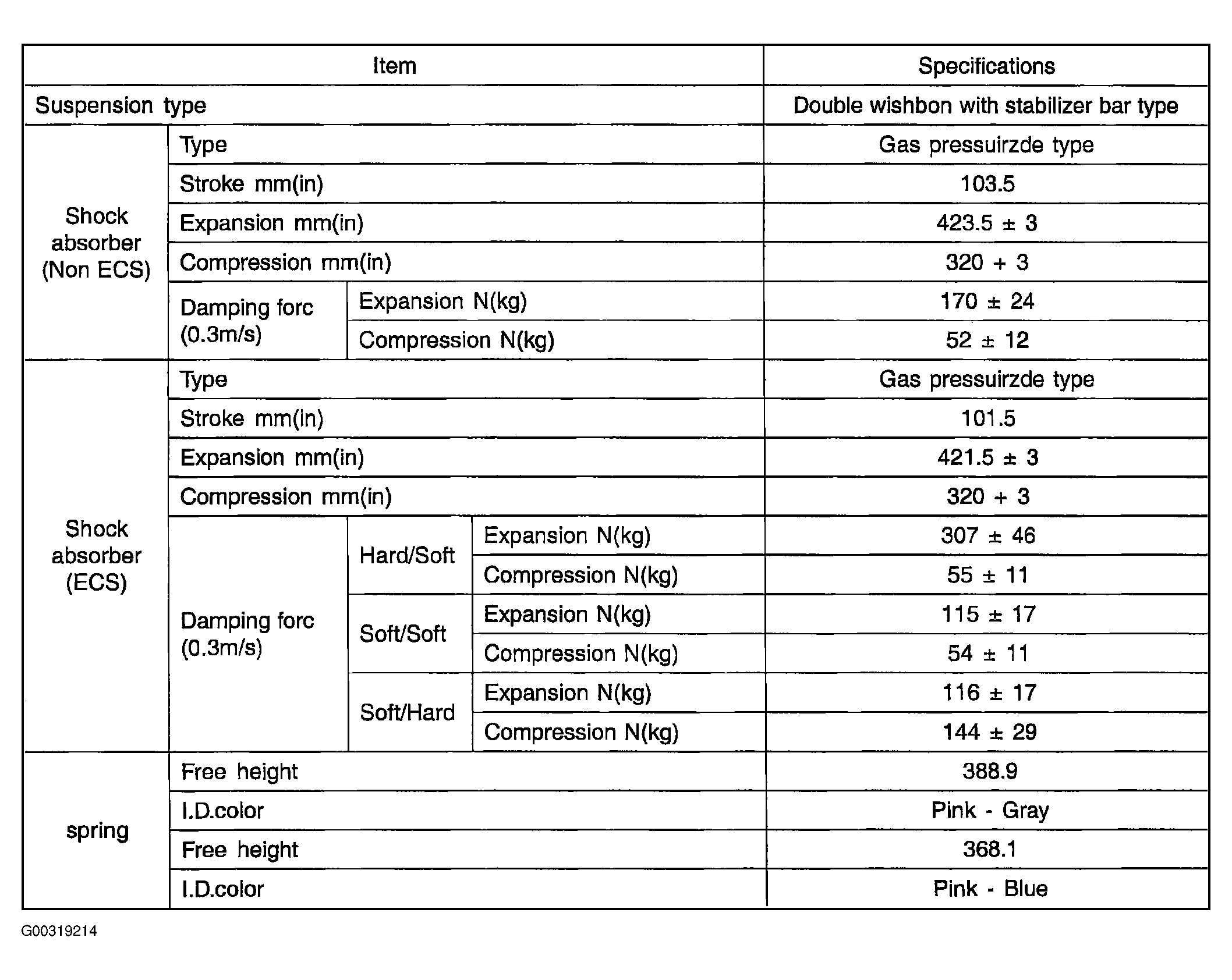

Fig 2: Specifications
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
