Front Hub/Knuckle: Disassembly

Remove the snap ring.

Fig 1: Removing Snap Ring
Courtesy of KIA MOTORS AMERICA, INC.
Using the special tool (0K130 331 AA0A), disconnect the hub from the knuckle.

Fig 2: Disconnecting Hub From Knuckle
Courtesy of KIA MOTORS AMERICA, INC.
Using the special tools (09455-21000, 09545-34100), remove the wheel bearing inner race from the hub.

Fig 3: Removing Bearing Inner Race
Courtesy of KIA MOTORS AMERICA, INC.

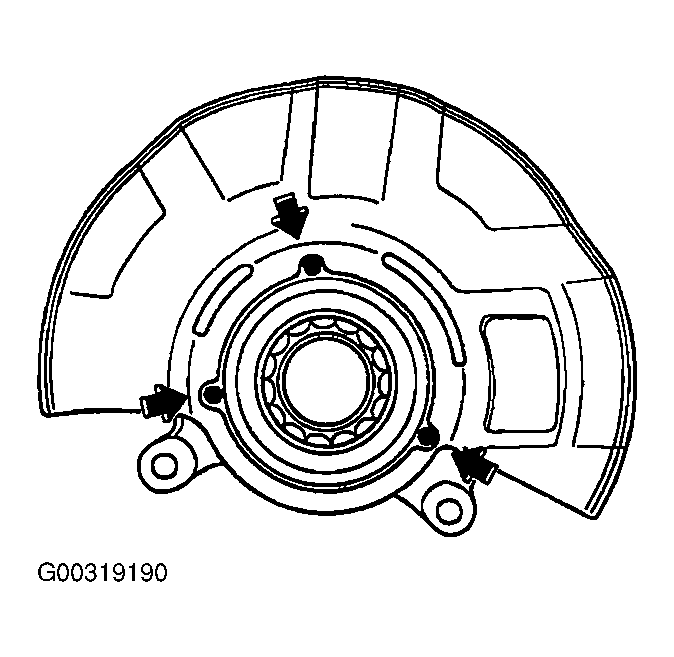

Remove the dust cover mounting bolt, and then remove the dust cover.

Fig 4: Removing Dust Cover
Courtesy of KIA MOTORS AMERICA, INC.
Place the inner race on the bearing.
Using the special tools (09216-21600, 09216-22100), remove the wheel bearing outer race from the knuckle.

Fig 5: Removing Bearing Outer Race

Courtesy of KIA MOTORS AMERICA, INC.
