Fundamental Procedures: Symbols

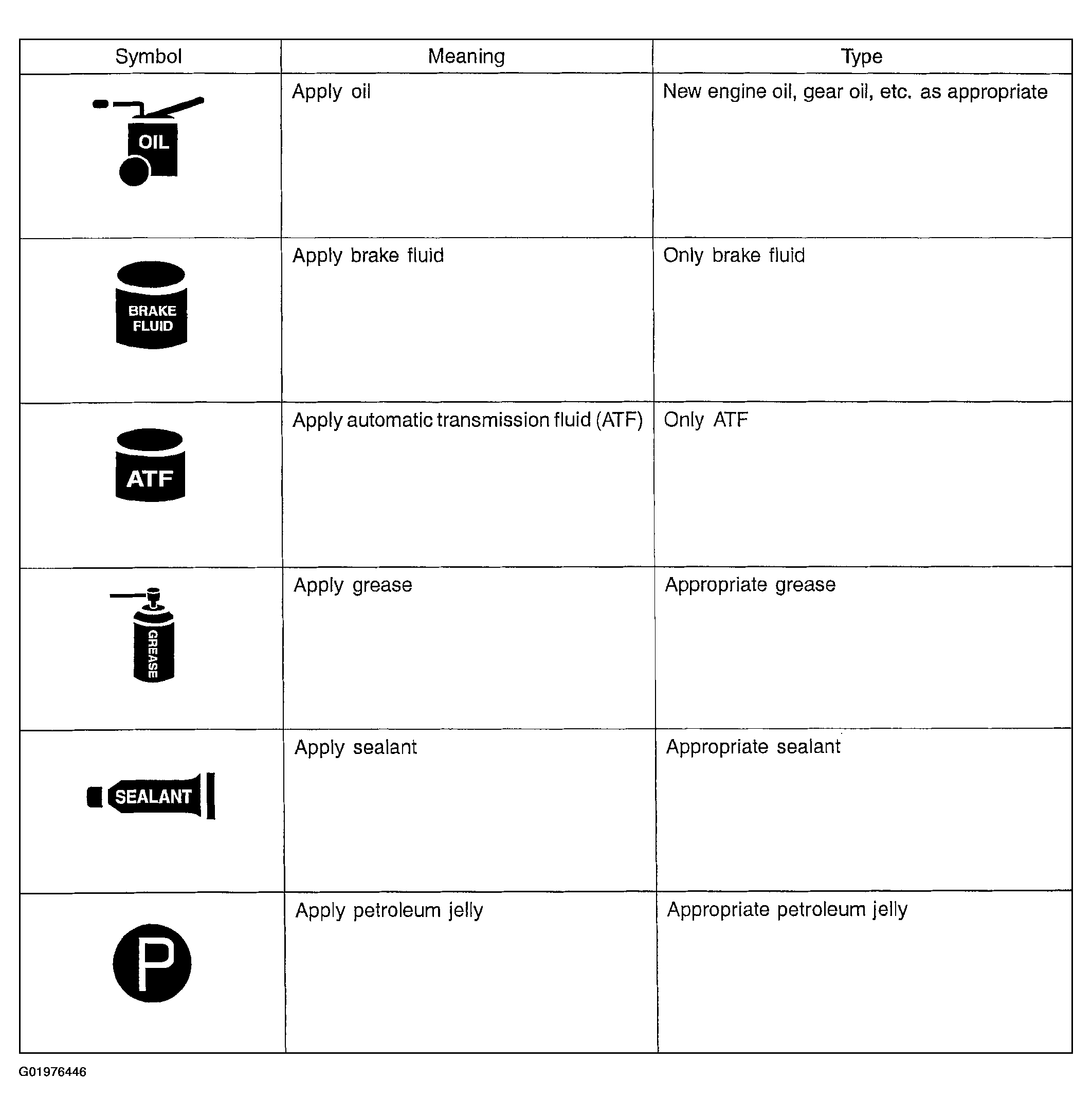

There are six primary symbols used to complement illustrations. These symbols indicate areas to apply such materials during service.
Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
Whenever special oil or grease is required, it will be identified in figure.
