Variable Intake Manifold Control Motor (V.I. Motor)
>>
Harness Connector
Harness Connector

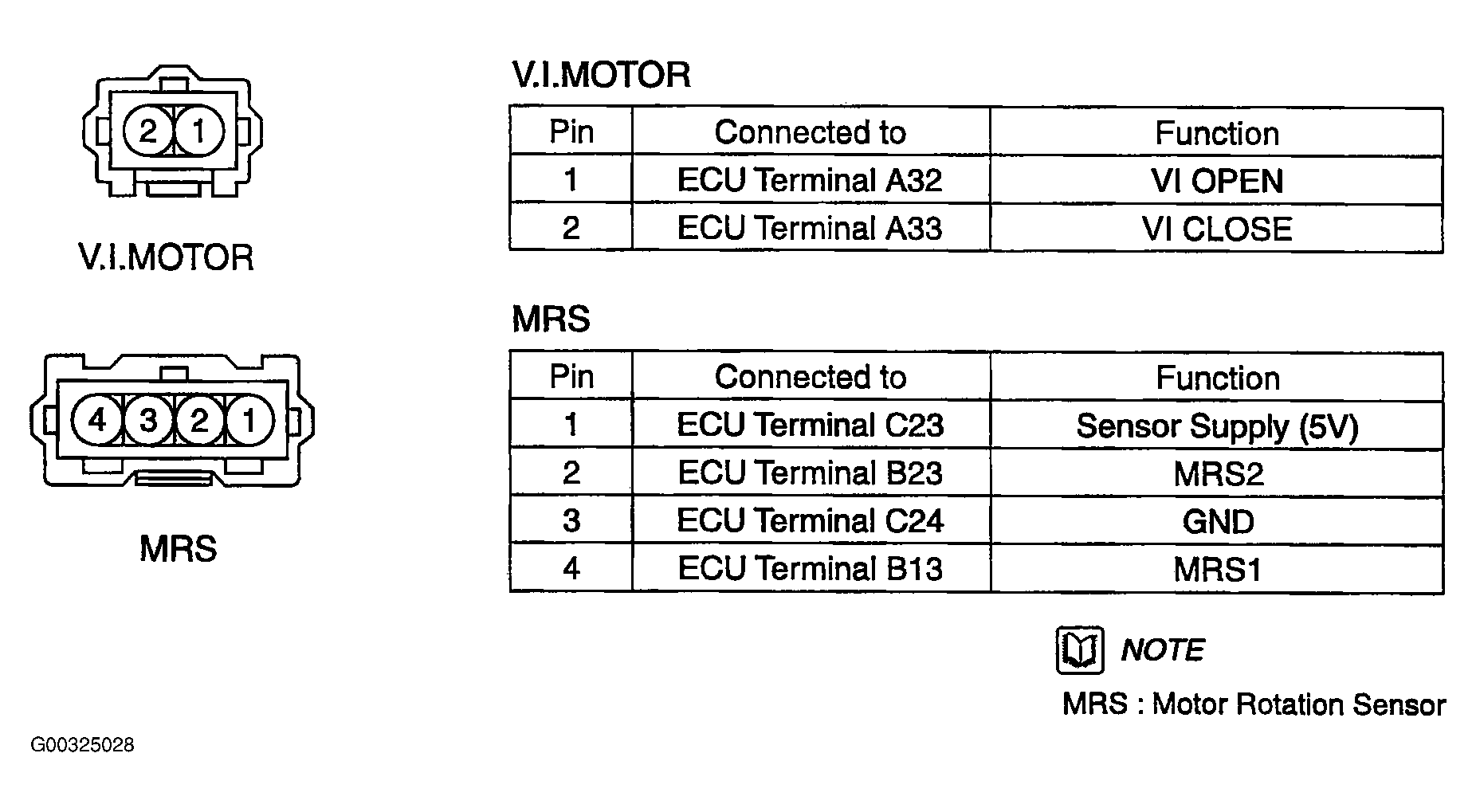

Fig 1: Illustrating V.I. Motor Harness Connector Pinout
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
