Purge Control Solenoid Valve (PCSV)
>>
Troubleshooting Procedures
>>
Notes
Troubleshooting Procedures: Notes

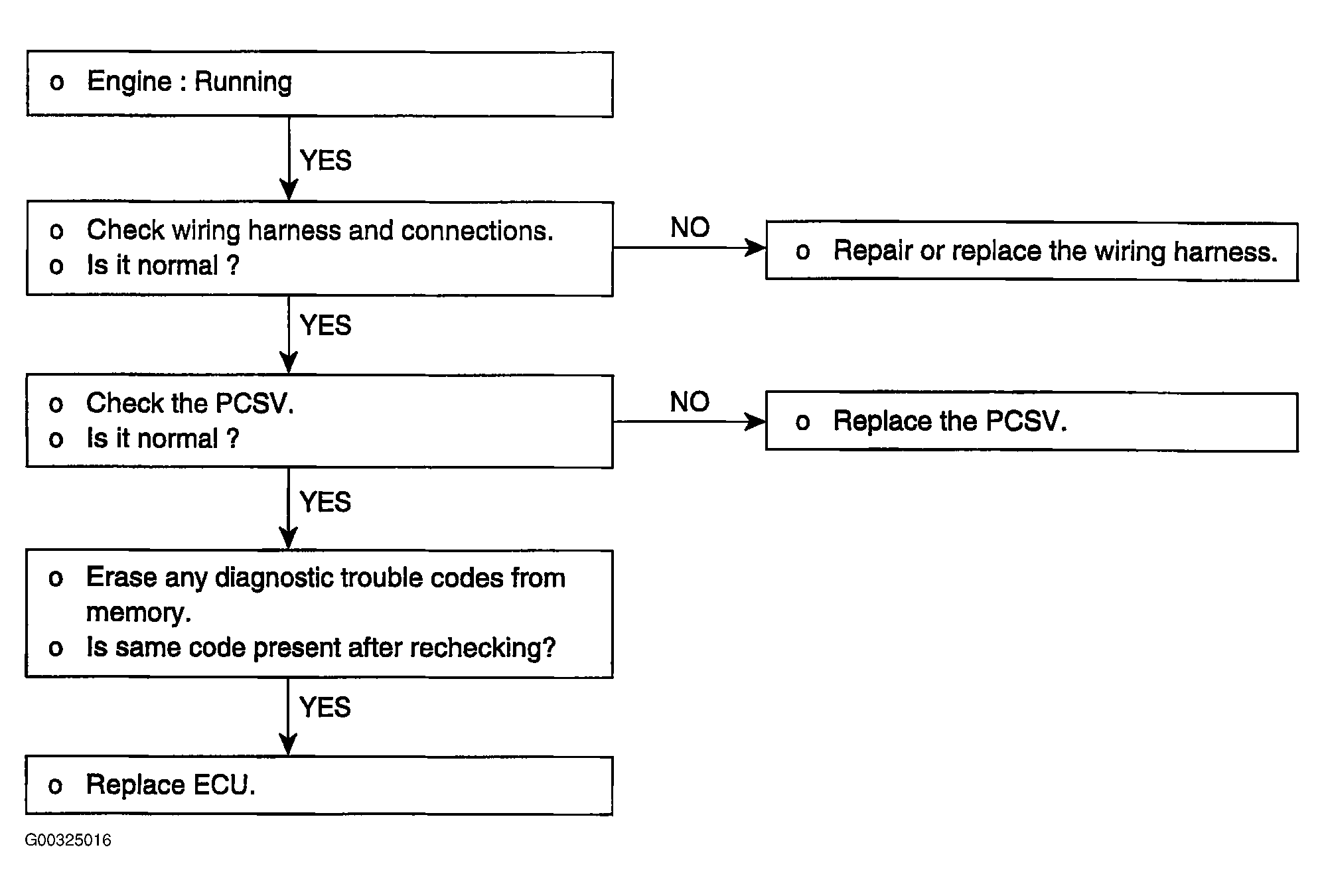

Fig 1: Troubleshooting PCSV Procedures Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
