Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Fuel System & Engine Control System
>>
MFI Control System
>>
Manifold Absolute Pressure (Map) Sensor
>>
Circuit Diagram
Circuit Diagram

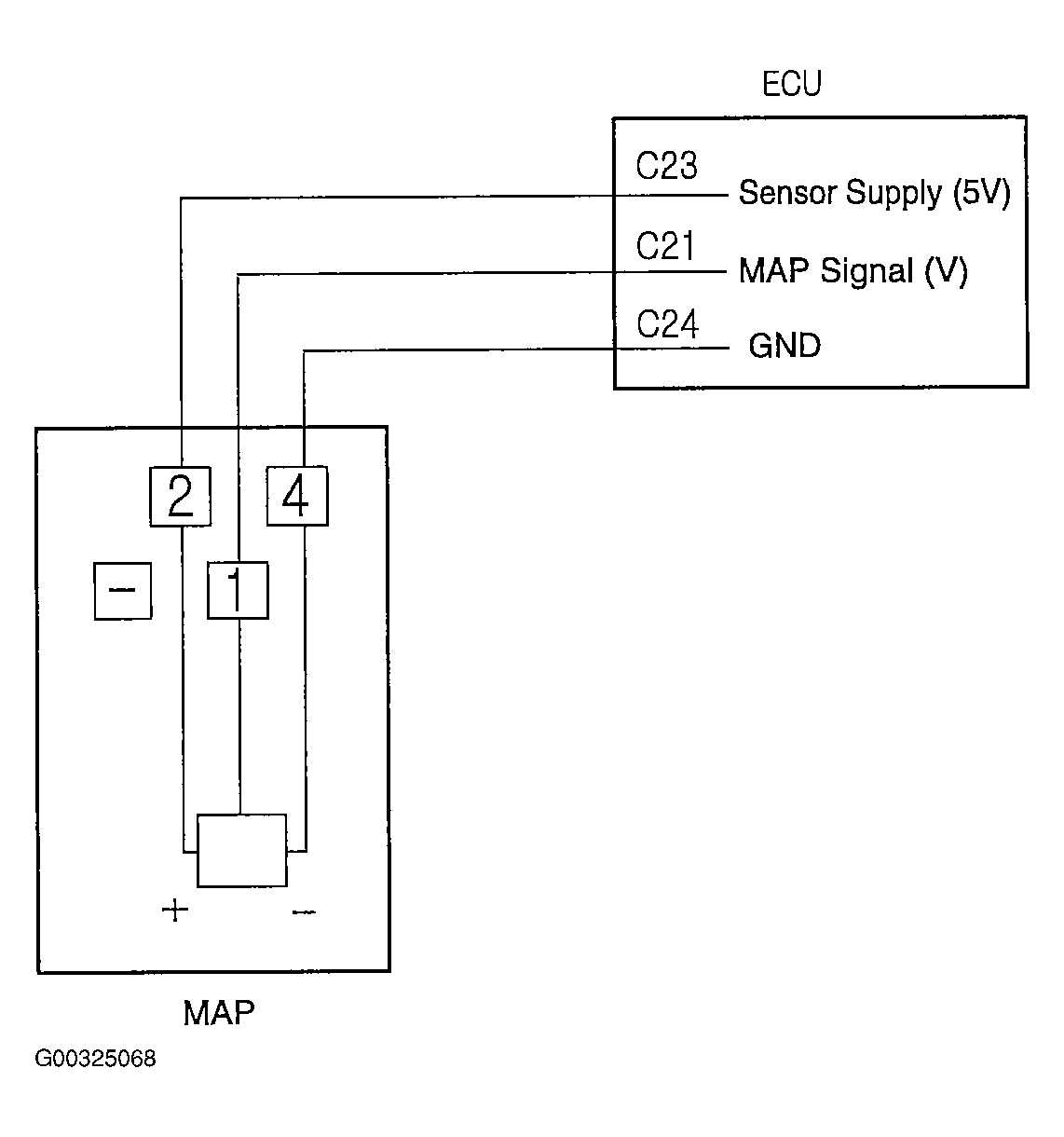

Fig 1: Illustrating MAP Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
