Harness Inspection Procedures

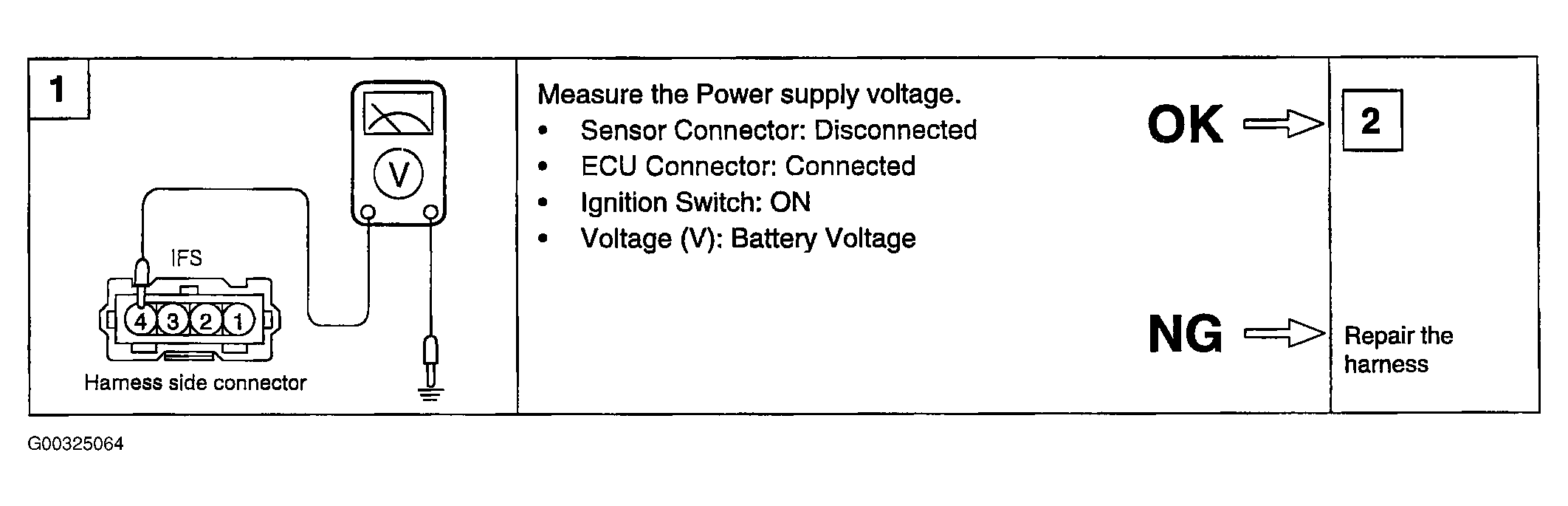

Fig 1: Illustrating IFS Harness Inspection Procedure (1 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

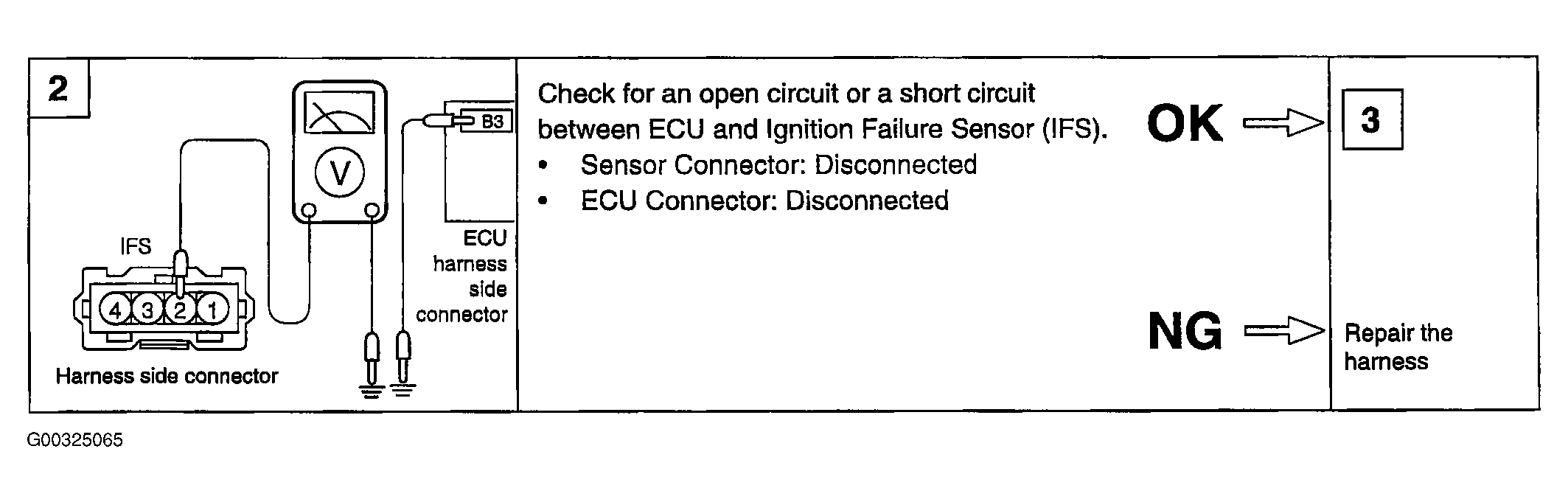

Fig 2: Illustrating IFS Harness Inspection Procedure (2 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

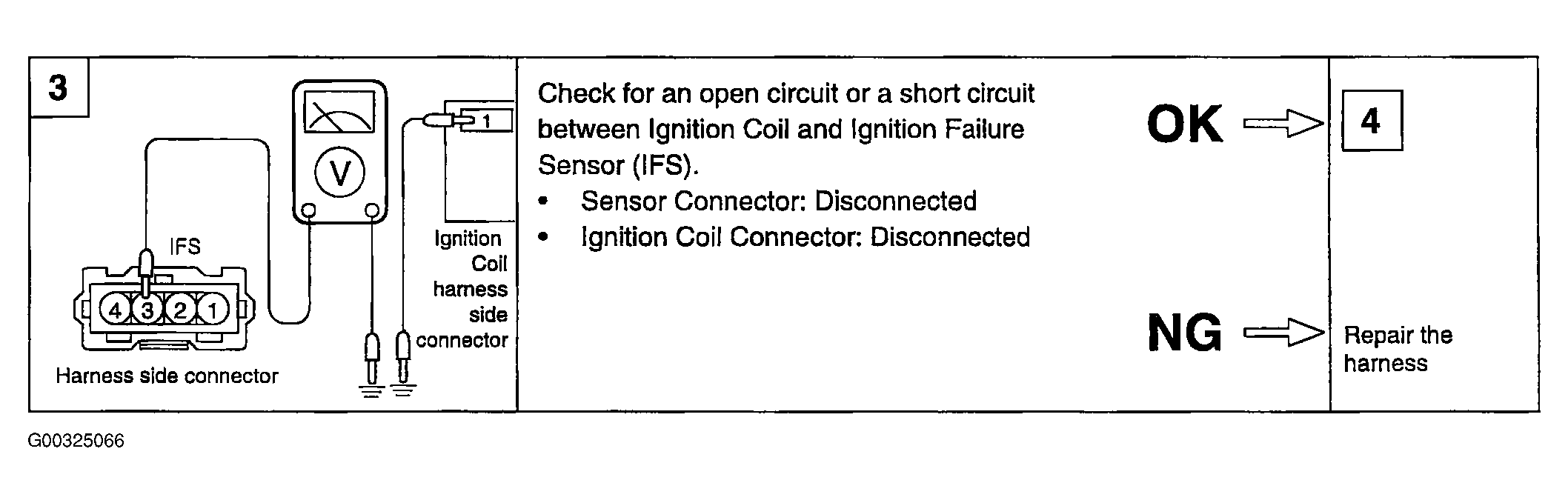

Fig 3: Illustrating IFS Harness Inspection Procedure (3 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

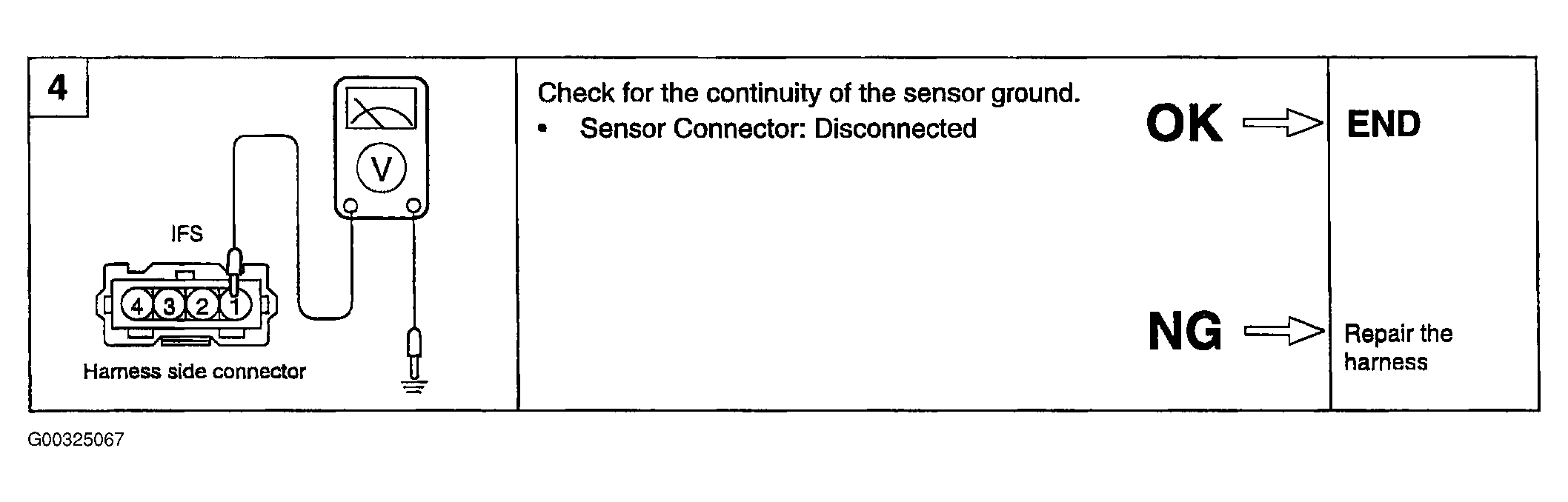

Fig 4: Illustrating IFS Harness Inspection Procedure (4 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
