Kia
>>
2004
>>
Amanti
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Fuel System & Engine Control System
>>
MFI Control System
>>
Ignition System
>>
Ignition Failure Sensor (Ifs)
>>
Circuit Diagram
Circuit Diagram

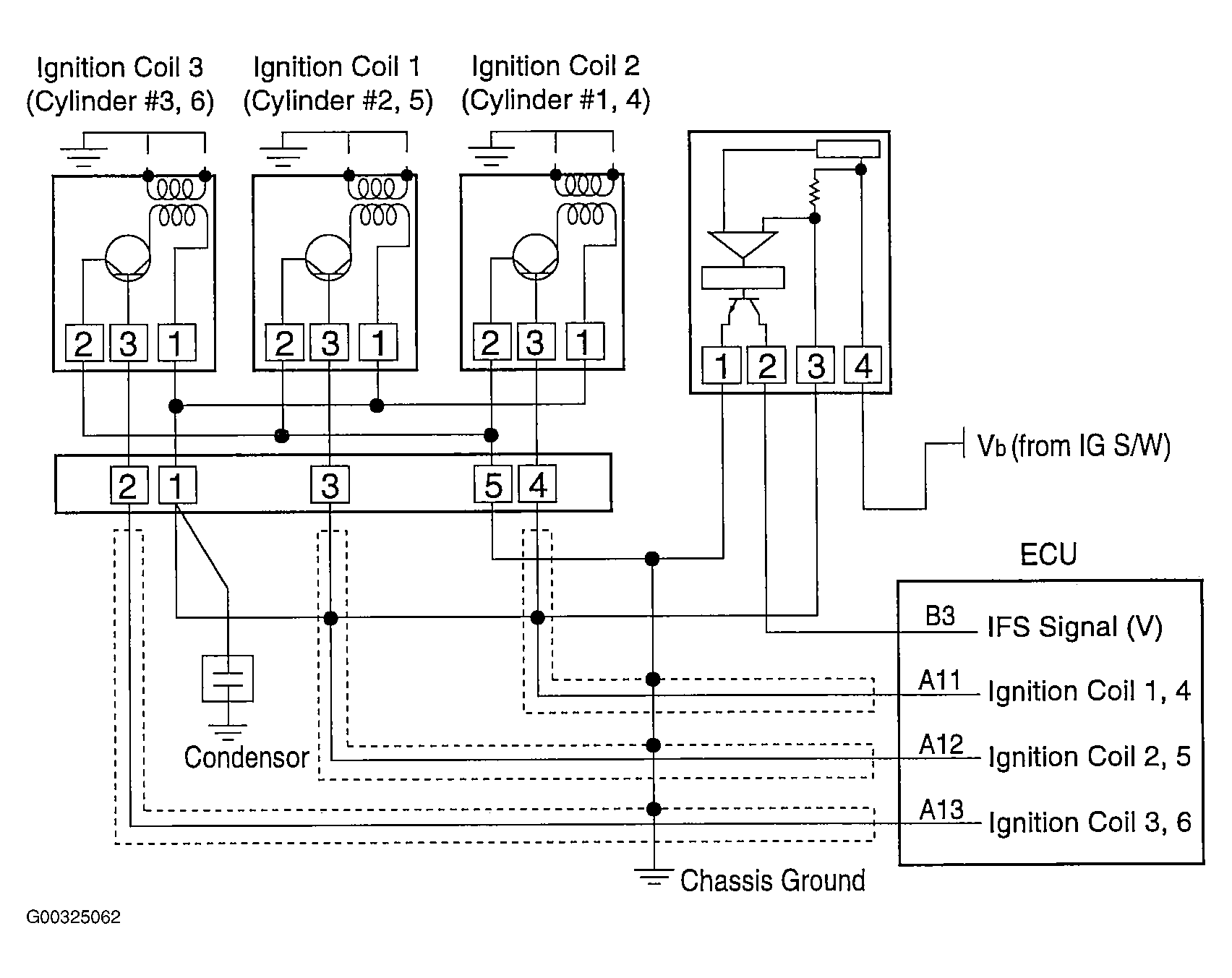

Fig 1: Illustrating IFS Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
