Home >> Kia >> 2004 >> Amanti >> Repair and Diagnosis >> Engine Performance >> System >> Fuel System & Engine Control System >> MFI Control System >> Fuel Tank Temperature Sensor (FTS) >> Circuit Diagram

Circuit Diagram

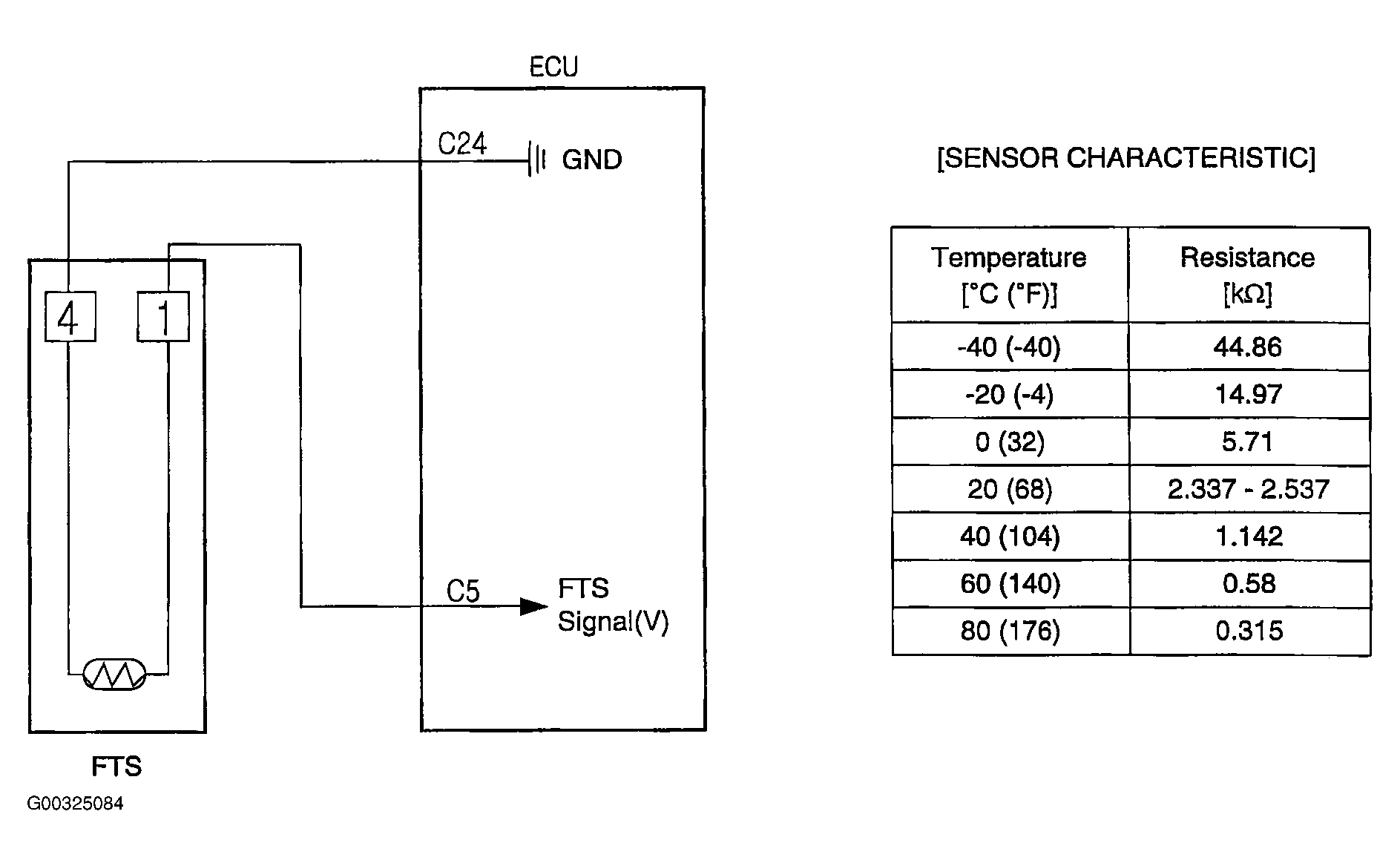

Fig 1: Illustrating FTS Circuit Diagram

G00325084

Courtesy of KIA MOTORS AMERICA, INC.
