ETS (Electronic Throttle System) Terminal In/Out Check Sheet

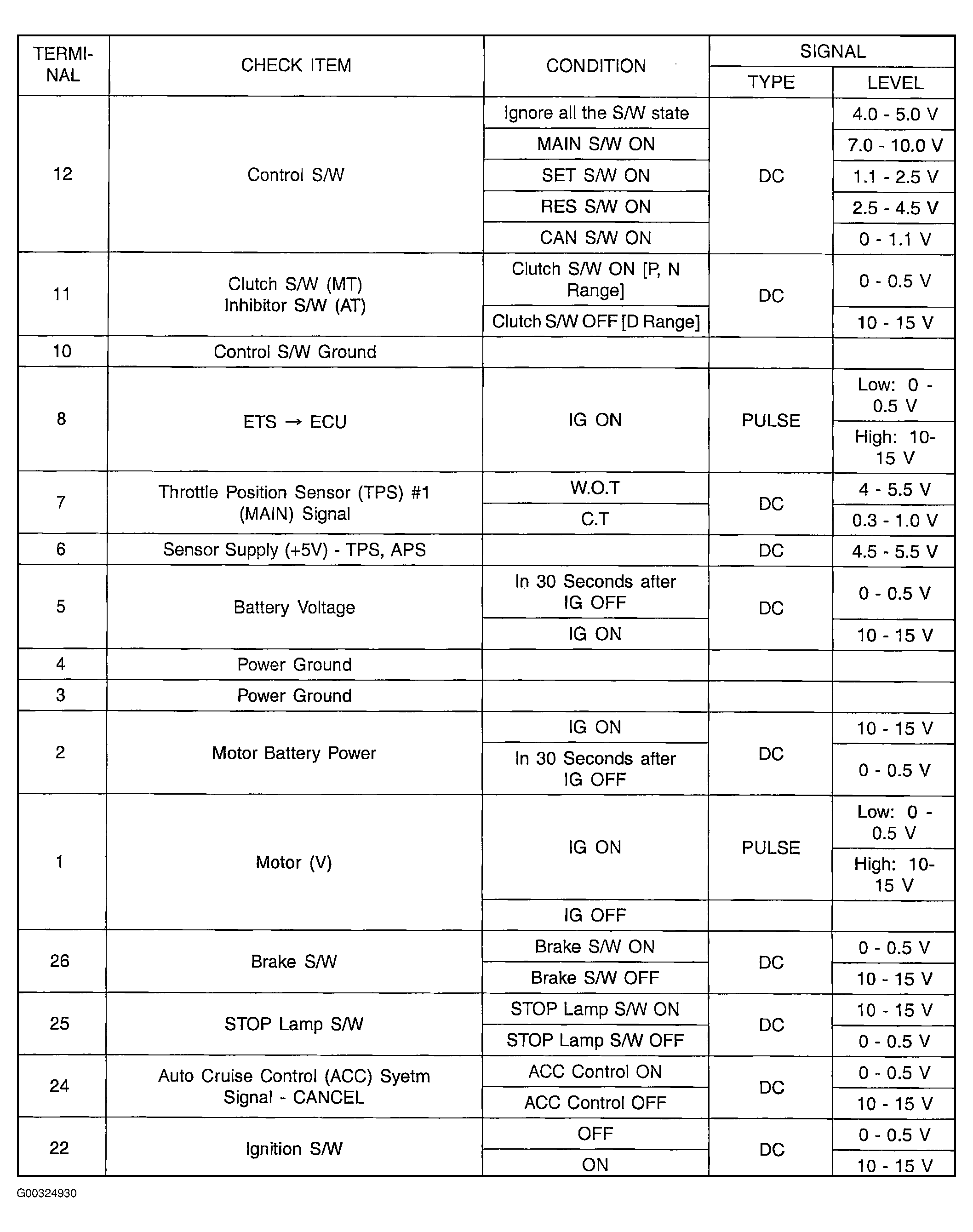

Fig 1: ETS In/Out Condition Chart (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

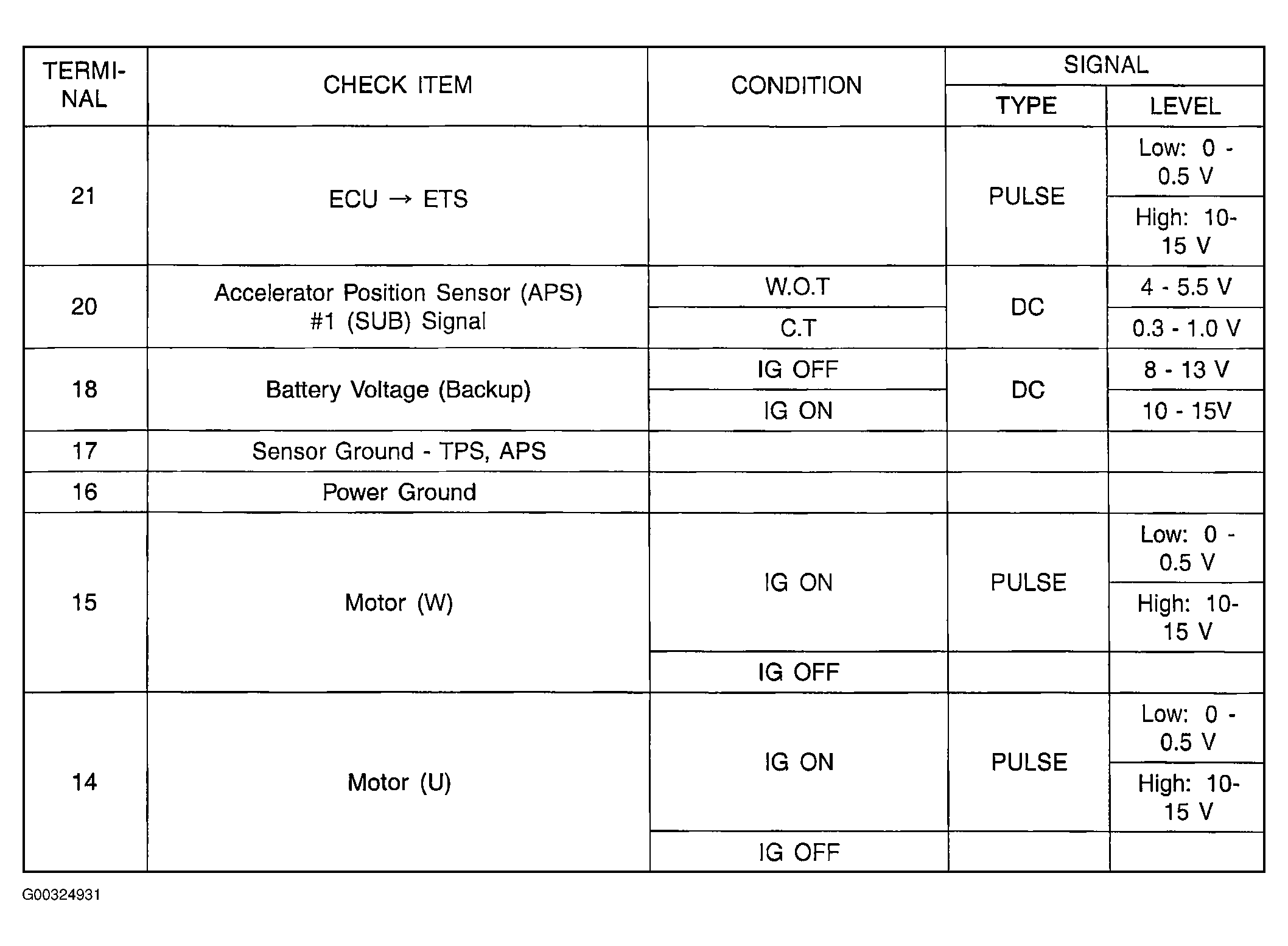

Fig 2: ETS In/Out Condition Chart (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.
