Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Fuel System & Engine Control System
>>
MFI Control System
>>
ETS (Electronic Throttle System)
>>
Troubleshooting
>>
Throttle Position Sensor
>>
Harness Inspection Procedures
Harness Inspection Procedures

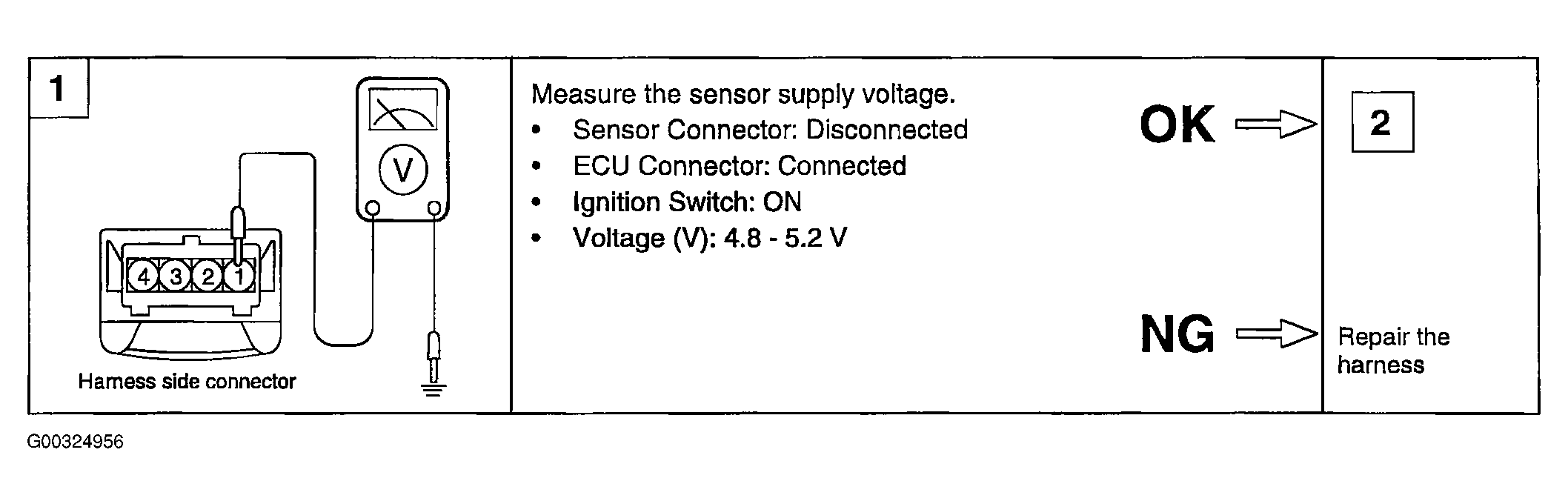

Fig 1: Illustrating TPS Harness Inspection Procedure (1 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

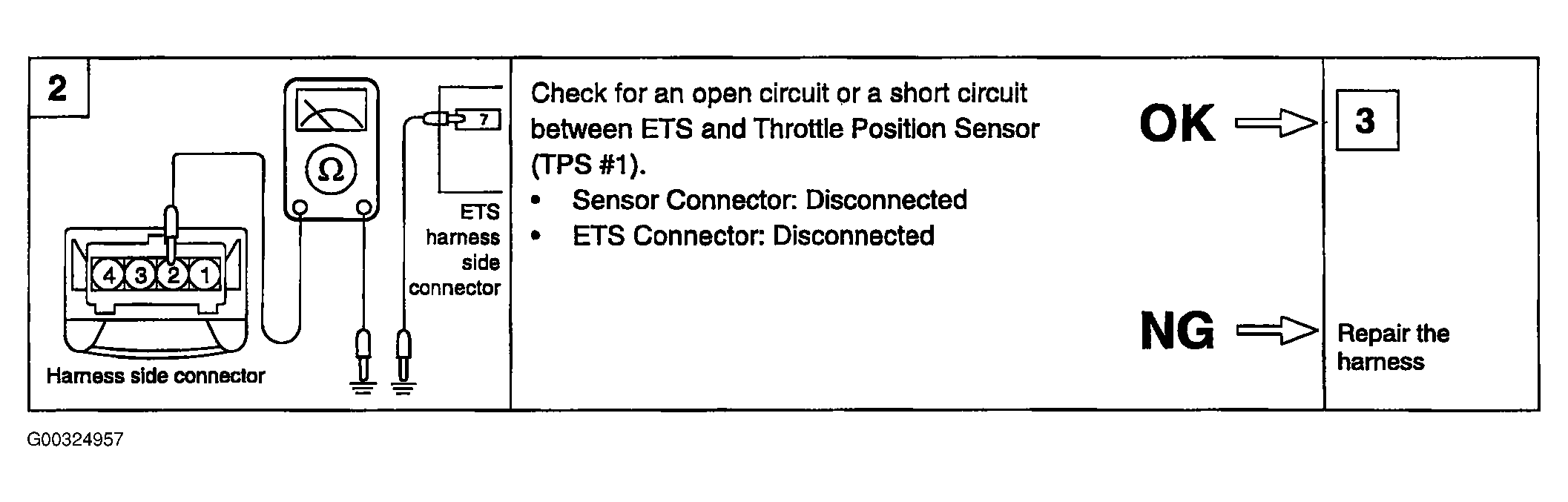

Fig 2: Illustrating TPS Harness Inspection Procedure (2 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

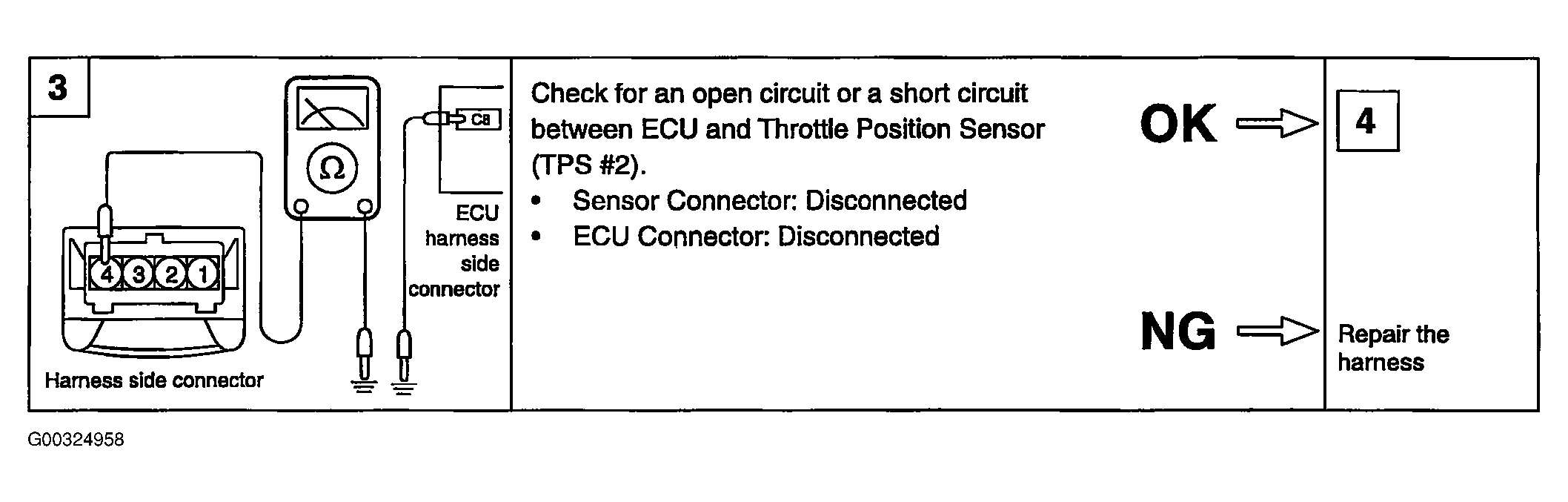

Fig 3: Illustrating TPS Harness Inspection Procedure (3 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

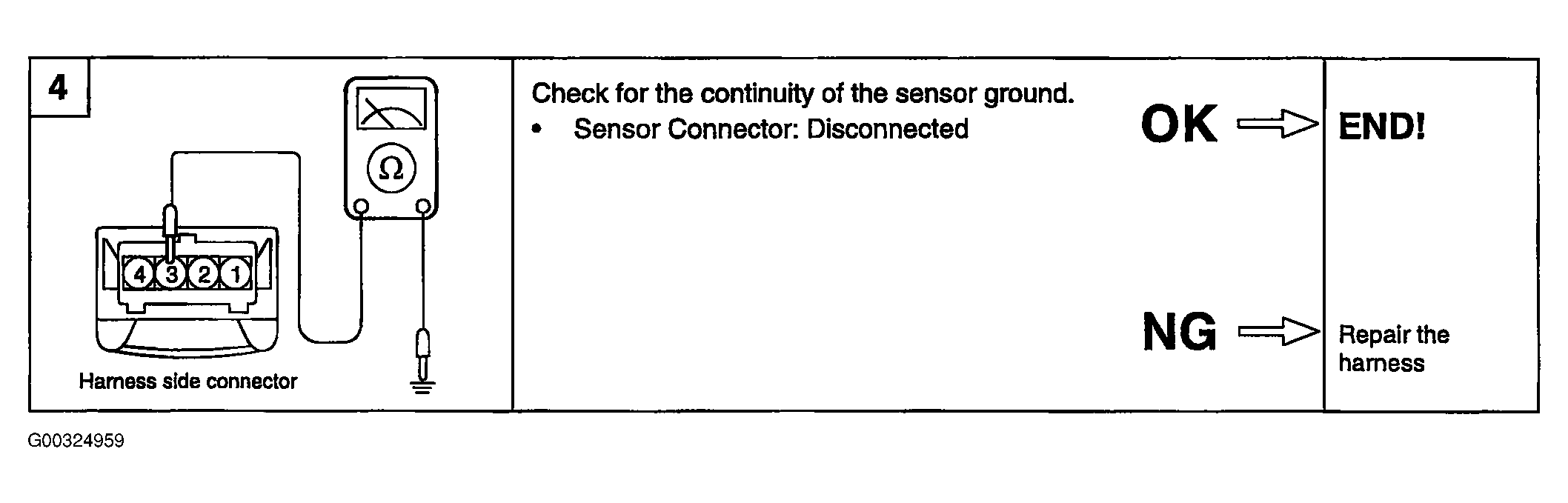

Fig 4: Illustrating TPS Harness Inspection Procedure (4 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
